shenzhen wholesaler Aluminum alloy Base Material and LED chip Light Source Mounted LED Ceiling Light

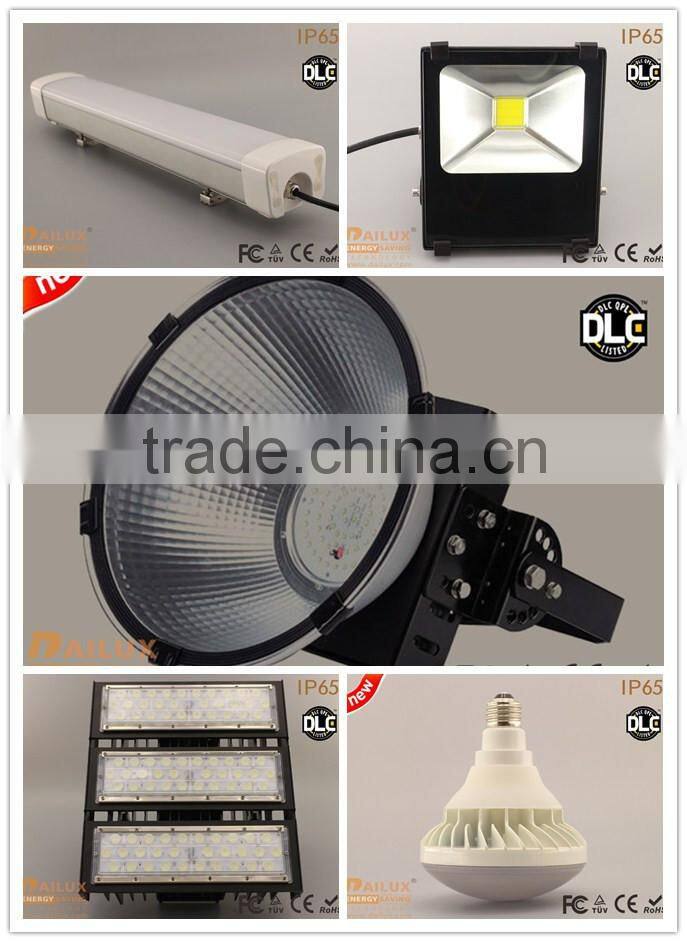

DAILUX Energy-saving Technology is committed to providing state-of-the-art energy saving products and services that will save our clients money and help them reduce their environmental footprint. DAILUX Energy-saving Technology works with industrial, commercial and residential establishments lighting throughout North America and Europe market and has selective distribution.Now,We offer energy efficient LED products including PAR56 LED Bulb, LED high bay lamp, Module led high bay, LED tri-proof light, LED retrofit corn bulbs.
The management at DAILUX Energy-saving Technology has:
- 12 years experience in LED lighting and and development of LED radiator we r &d team,.
- over 4 years of sales management and product development experience.
- an intrinsic understanding of how electricity works.
- Rapid and satisfying after-sale services.
- Rapid turnaround time for customized solutions
Specifications--
led ceiling light CLR325 Series---Microwave sensor,Dimmable,Emergency
Rated Voltage |
220-240VAC |
Wattage |
14W |
Lumens Flux |
1200lm |
Temperature |
--40℃~50℃ |
ED chip |
SMD2835 Epistar |
Driver |
built-in power--TUV certified |
Power factor |
0.9 |
Beam Angle |
150 degrees |
CRI |
>80 |
Lifespan |
50,000 hours |
Emergency(yes/no) |
YES –3w Emergency |
Microwave sensor(yes/no) |
YES |
Dimmable (yes/no) |
YES 1-10V dimmable |
IP Grade |
IP54 |

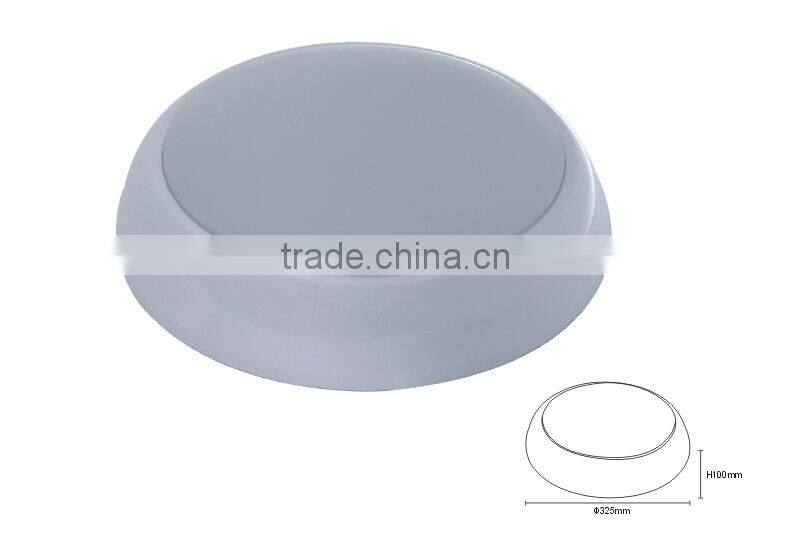

Dimensions |
325mm*100mm(CLR325 series) |
Warranty |
5 years |
Certifications |
CE&ROHS*DLC&TUV&FCC |
Emergency time |
Output power |
batteries |
3 hours |
3W |
12V 1600mAh NiMH |
2.Microwave Sensor option
Input Voltage |
DC 5V |
Microwave radiation frequency |
ISM 5.8GHZ |
Recommend installation height |
2.5m |
Built in daylight sensor |
below 25Lux |
Detecting distance |
5-6m |
Detecting direction |
360° |
Wiring instructions
1. Emergency option
2.Microwave Sensor option

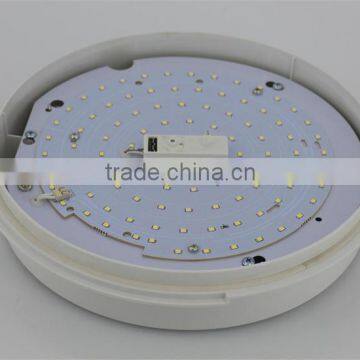

Detail photos for above Mounted LED Ceiling Light
Product Features
• Integral emergency options; Microwave sensor; 1-10V dimmable options
• IP54 protection class
• Overall profile radiator professional thermal management.
• Long lifespan (over 50000 hrs), 5 years warranty.
• Comply with latest safety and EMC standard.
• Better lighting uniformity by adopting high - performance.
• No harmful ultraviolet (UV) rays.
• Conform to ROHS,no any harmful substance.
• Available in cool white, neutral white, and warm white color.
• With built-in power supply,security,beautiful and easy installation.
Specially,there are 6 options for you!
Part No. |
Color Temp. |
Output power |
Input power |
Lumen Flux |
Note |
CLR325 |
2700K-6500K |
11.5W |
14W |
1200lm |
Standard |
CLR325-E |
2700K-6500K |
13.5W |
18W |
1400lm(E:400LM) |
3W Emergency |
CLR325-MWS |
2700K-6500K |
11.5W |
18W |
1200lm |
Microwave sensor |
CLR325-MWS-E |
2700K-6500K |
13.5W |
22W |
1400lm(E:400LM) |
3W Emergency and Microwave sensor |
CLR325-VD |
2700K-6500K |
11.5W |
18W |
1200lm |
1-10V Dimmable |
CLR325-VD-E |
2700K-6500K |
13.5W |
22W |
1400lm(E:400LM) |
3W Emergency and 1-10V Dimmable |
This product is an ideal replacement of traditional Vapour Proof light.

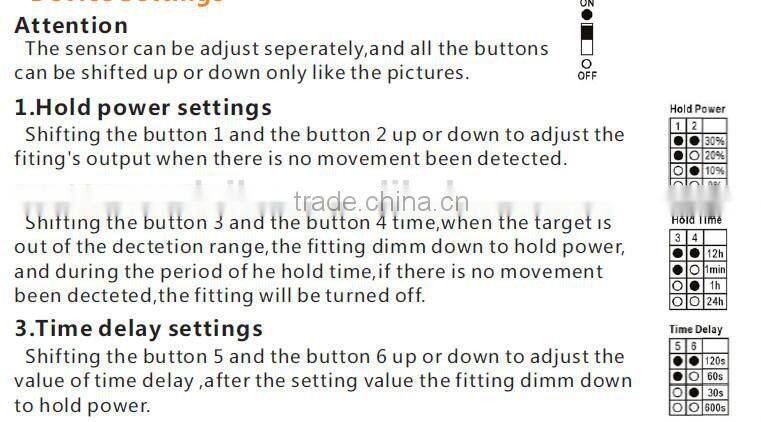

Device Settings
Application:
Pulp & Paper Plants, Bottling Factories, Airports, Ice Rinks
Gas Stations, Department stores, Office & Residential buildings
Military bases & Post Offices, Water pumping & Treatment Plants
Project Case
Payment Terms: T/T,paypal,western uinon,moneygram 30% deposits before production, 70% balance to be paid before shipment.
Packing Details:
1.the lamp fixed with foam models
2.Kraft carton sealing
3.wooden crate could make sure safety enough for speical parts.
Shipping Details:
1.Delivery date:with 3~5days for samples,and 7~10days for large quantity after receive payment.
2.Shipping port: Shenzhen(Yantian),Hongkong
Q1:What's the warranty?
A1:We are offering 5 years warranty for products,if any quality problems on your side occured in this period,we'll take on the shipping cost and replacement.
Q2:What's the CRI?
A2:CRI is a figure which feedback the real objects colours,higher CRI with higher cost,For led tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost but there are some suppliers write a high data to attract clients,pls note.
Q3:Do your led lights emit UV light?
A3:No,but you should never point an led light into your eyes,the light is very bright and could cause damage.
Q4:Will the led light work on a dimmer switch?
A4:We don't recommend using our led light on a dimmer switch,this type of switch can potentially cause dammage to the light.
Q5: Do you offer free sample of Mounted LED Ceiling Light?
A5:Samples are not free, but we will return samples fee when you placing bulk quantity order at next time.
Q6: Are you factory or trading company?
A6:Dailux Energy Saving Technology is an led lights original manufacture in shenzhen,China.
We have 4,000 square meters for OEM&ODM,and more than 100 product line operators.
Dailux original design LED solutions
DAILUX Energy-saving Technology provides clients with a highly accessible, responsive, and efficient client experience. Aided by our proprietary suite of sales tools, DAILUX Energy-saving Technology empowers clients to make informed decisions, in real-time. From initial energy audit to final product delivery, DAILUX Energy-saving Technology delivers the most efficient experience in the industry.
Do you need help in selecting the right products to reduce your electrical consumption?
Call us and tell us about your project, your goals.You can reach us at +86-0755-29032775
Thanks for your visiting above light,waiting for your coming~
Add:Building 3/5th,Huangmapu Industrial Zone, Dalang street,
Longhua new district.Shenzhen.P.R.China. P.C.: 518109
Tel:+86-0755-29032775 Fax:+86-0755-29032776
Skype:sherry-dailux
