Specifications
Briquette Machine:1.Output:3-45t/h;
2.High briquette ratio;
3.Environmental friendly;
4.Lower power consumption.
Brief introduction of briquette machine:

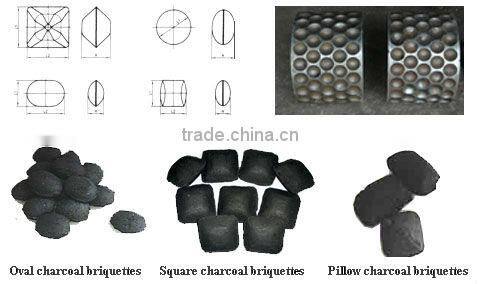

Our coal briquette machine is moulded coal equipment which is mainly used to press coal powder,charcoal powder,coke powder,ore powder and other powdery materials into briquettes.These briquettes can be designed into oval shape, egg shape, pillow shape, square shape, round shape, etc. This machine is widely used in coal industry and metallurgy industry.
Main advantages of briquette machine:
1. High profit and low cost in raw material
2. Increase the net calorific value per unit volume after briquetting
3. Energy saving, friendly-environment, Low-consumption
4. No chemical additives, no smell, no smoke
5. Easy to transport and store as densities product
Application of briquette machine:
Technical parameters of briquette machine:
| Model | Reducer | Roller Dimension | Shaft Speed(r/min) | Motor Type | Power(kw) | Output(t/h) | Dimensions |
| YHQ360-4 | ZQ350 | Φ360×250 | 15-17 | Y132M-4 | 7.5 | 3-5 | 2.26×1.53 × 1.98 |
| YHQ360-2 | ZQ350 | Φ360×250 | 15-17 | Y132M-4 | 7.5 | 3-5 | 2.26 × 1.53 × 1.76 |
| YHQ360-4 | ZQ400 | Φ400 × 250 | 15-17 | Y160M-4 | 11 | 4-7 | 2.3 × 1.38 × 1.96 |
| YHQ360-2 | ZQ400 | Φ400 × 250 | 15-17 | Y132M-4 | 7.5 | 4-7 | 2.2 × 1.38 × 1.91 |
| YHQ360-4 | ZQ400 | Φ 430 × 250 | 15-17 | Y160M-4 | 11 | 5-8 | 2.4 × 1.53 × 2 |
| YHQ360-2 | ZQ400 | Φ 430 × 250 | 15-17 | Y132M-4 | 7.5 | 5-8 | 2.3 × 1.53 × 1.9 |
| YHQ360-4 | ZQ500 | Φ 500 × 350 | 15-17 | Y180L-4 | 22 | 8-10 | 2.61 × 1.75 × 2.35 |
| YHQ360-2 | ZQ500 | Φ 500 × 350 | 15-17 | Y160L-4 | 15 | 8-10 | 2.61 × 1.75 × 2.1 |
| YHQ360-4 | ZQ650 | Φ 650 × 350 | 15-17 | Y1200L-4 | 30 | 12-20 | 3.42 × 2 × 2.4 |
| YHQ360-2 | ZQ650 | Φ 650 × 350 | 15-17 | Y180L-4 | 22 | 12-20 | 3.42 × 2 × 2.2 |
| YHY750-4 | ZQ750 | Φ 750 × 380 | 14-16 |
Y200L-4 Y112M-4 |
30 4 |
25-30 | 3.7 × 2.55 × 2.6 |
| YHY850-4 | ZQ850 | Φ 850 × 436 | 14-16 |
Y225S-4 Y112M-4 |
37 4 |
35-40 | 3.9 × 2.6 × 2.7 |
| YHY1000-4 | ZQ1000 | Φ 1000 × 530 | 14-16 |
Y225M-4 Y112M-4 |
45 4 |
40-45 | 4 × 2.8 × 2.8 |
