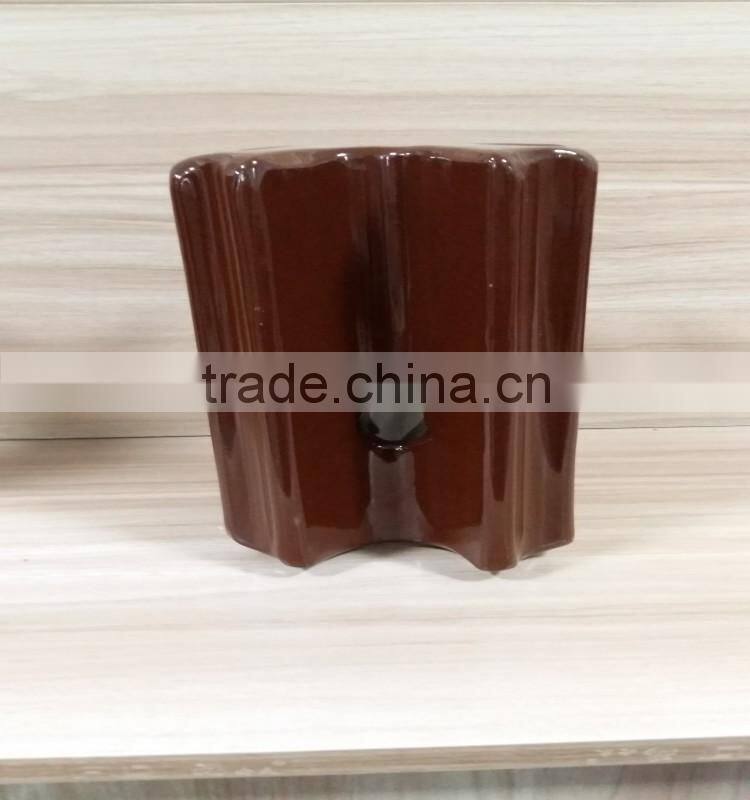

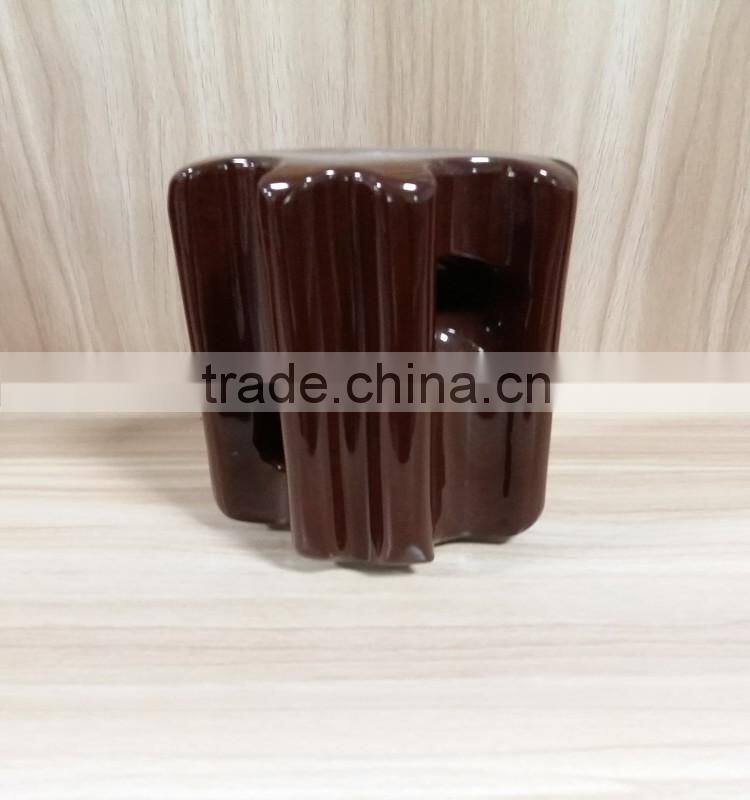

Factory sale!! strain porcelain spool insulator
Fuzhou Yong Chang Electric Porcelain Co.,Ltd is a professional manufacturer and supplier of electric products and hardware tools, It has more than 16 years experience,There is abundant in Kaolin resource and with a long history of porcelain production.
Our Advantages:
- High quality standard
- Competitive price
- Strong technical force
- Advanced testing equipment
- Convenience transportation
- Quality of services, solve your problems in 24 hours and provide international warranty service
- ISO9001/ISO14001/CE/Rohs/UL certificattion
Factory sale!! strain porcelain spool insulator

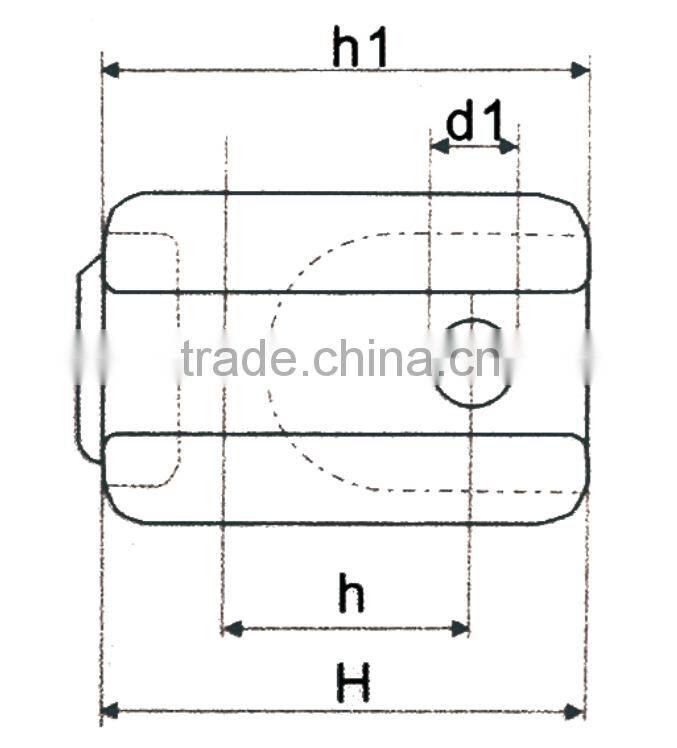

| TYPE | 54-1 | ||
| Main Dimensions(mm) | H | 89 | |
| h | 44 | ||
| h1 | 64 | ||
| D | 64 | ||
| d | 44 | ||
| d1 | 16 | ||
| Creeppage distance(mm) | 41 | ||
| Mechanical failing load(KN) | 44 | ||
| Power Frequency Voltage | Dry(KV) | 25 | |
| Wet(KV) | 12 | ||
| Net Weight(KG) | 0.5 | ||
| Applicable standard | ANSI | ||
Trade terms
1.Payment: T/T, L/C, Secure payment, Western Union, 30% deposits; 70% balance before deliverying.
2.Delivery Time: 30-45 days after receiving the deposit days.
3.MOQ: Welcome your trial order.
4.Package Informations: standard export packing or as per customer's requirement.
Why Choose US?
1.Fuzhou yongchang Electric Porcelain Co.,Ltd has more than 16 years experience.
2.Alibaba Assessed 3 years Gold Supplier.
3.100% QC inspection Before Shipmeng.
4.Best Quality & Best Service with Competitive price.
