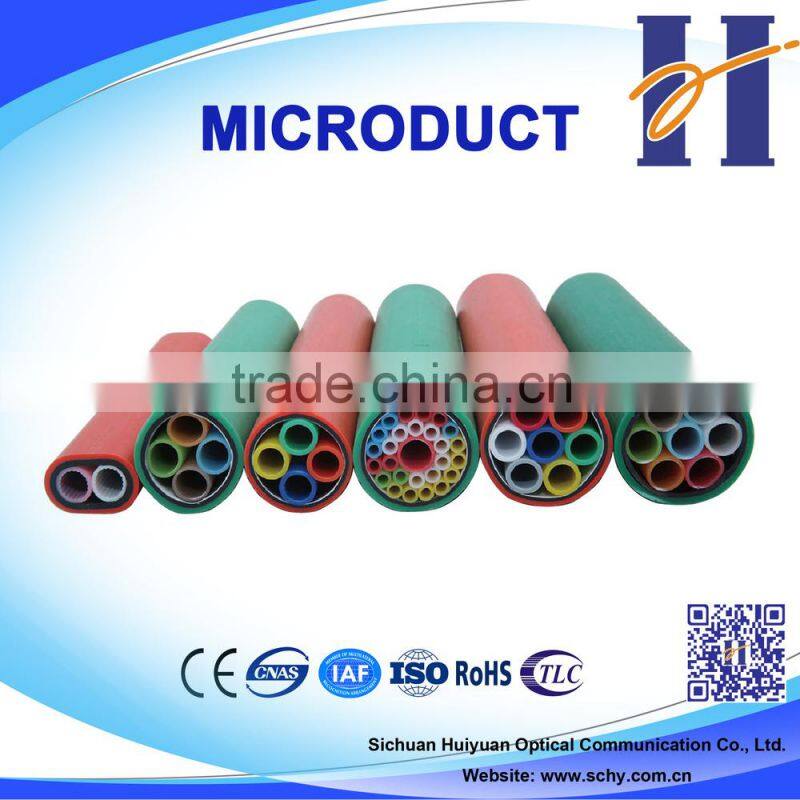

HUIYUAN direct buried tube bundle hdpe pipe manufacturing

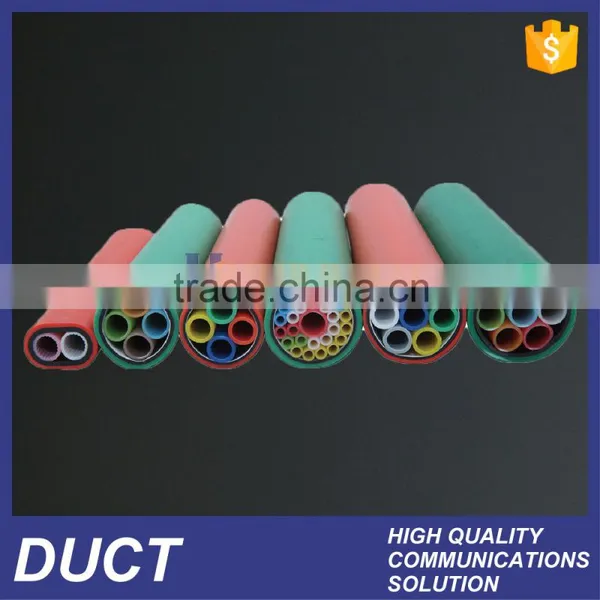

Tube bundle is made by one micro duct or more than one micro duct grouped according to a certain arrangement order with outer sheathing layer. It can hold more conduits in the limited space.
The structure of HDPE tube bundle has some characteristics as follows:
1. The technical specification of micro ducts grouped into tube bundle fully comply with the above-mentioned specification of micro duct;
2. Through the color, arrangement definition, ie, the position of each micro duct in the tube bundle, the construction becomes convenient so as to effectively avoid the misconnect of micro ducts;
3. Inner micro ducts and the outer sheathing layer can be relatively separated through a special manufacturing technology and product formulation so as to convenient for construction and the connection of inner micro ducts;
4. Many tube bundles placed into the same one trench can be distinct through the different color of outer sheathing layer of tube bundle or different strips on the outer sheathing layer of tube bundle;
5. The surface of outer sheathing layer of tube bundle is smooth without defects, such as visible holes or scars.
| Φ5/3.5mm Series: | ||||||
| O.D.(mm) | Sheathing(mm) | Max. Tensile Strength (N) | Min. Bend Radius (mm) | Crush(N) | Weight (kg/km) | |
| 1-ways | 11.8 | 3.4 | 1000 | 120 | 2000 | 96 |
| 2-ways | 16.8*11.8 | 3.4 | 1400 | 160 | 2000 | 140 |
| 4-ways | 18.9 | 3.4 | 2000 | 220 | 2000 | 196 |
| 7-ways | 21.8 | 3.4 | 2600 | 300 | 2000 | 255 |
| 12-ways | 27.8 | 3.4 | 3800 | 380 | 2000 | 365 |
| 19-ways | 31.8 | 3.4 | 4800 | 500 | 2000 | 475 |
| 24-ways | 36.8 | 3.4 | 6000 | 600 | 2000 | 610 |
| Φ10/8mm Series: | ||||||
| O.D.(mm) | Sheathing(mm) | Max. Tensile Strength (N) | Min. Bend Radius (mm) | Crush(N) | Weight (kg/km) | |
| 1-ways | 16.8 | 3.4 | 1800 | 210 | 2000 | 165 |
| 2-ways | 26.8*16.8 | 3.4 | 2800 | 260 | 2000 | 258 |
| 4-ways | 30.8 | 3.4 | 4000 | 500 | 2000 | 396 |
| 7-ways | 36.8 | 3.4 | 5500 | 640 | 2000 | 545 |
| Φ12/10mm Series: | ||||||
| O.D.(mm) | Sheathing(mm) | Max. Tensile Strength (N) | Min. Bend Radius (mm) | Crush(N) | Weight (kg/km) | |
| 1-ways | 18.8 | 3.4 | 2000 | 240 | 2000 | 190 |
| 2-ways | 30.8*18.8 | 3.4 | 3000 | 240 | 2000 | 302 |
| 4-ways | 35.8 | 3.4 | 4800 | 540 | 2000 | 467 |
| 7-ways | 42.8 | 3.4 | 6300 | 750 | 2000 | 642 |
- The technical specifications of inner micro duct grouped into the bundle fully comply with the specification of HAWEI microduct.
- Dual wall thickness of PE outer shething.
- Through the color, arrangement definition, ie, the position of each micro duct in the bundle, the construction becomes convenient ao as to effectively avoid the misconnect of micro duct.
- Inner micro ducts and the outer sheathing layer can be relatively separated through a special manufacturing technology and product formulation so as to concenient for construction and the connection of inner micro ducts.
Packaging Detail: Standard Export Package, Drum length is 2000m or customized
Delivery Detail: 30 days after confirmation of order and payment
In 1995, first test run of Huiyuan ADSS cable put into operation in Sichuan power grid. After nearly 20 years test, the line still runs safely, which creates the longest run record of domestic ADSS cable.
In 1996, the first domestic ADSS cable with high-voltage electrical corrosion sheath ran safely on the 220KV line till so far.
After years of development, Huiyuan has become a special optical cable provider in the western region and an influential company in China. Its featured products have four series, including power fiber optic cable (ADSS, OPGW, OPPC); micro air blown cable, fiber optic unit and micro air blown cable tube; various types of sensing cable and detection cable; Lp user oriented fiber and optical fiber ribbon.
We are the one of biggest manufacture of fiber optic cable in China and has many years’ manufacturing
and selling experience.
We accept OEM. The cable size and material are customized.Your own logo and own design are welcomed.
We will produce according to your requirement and description;
Please send us inquiry for more products info and we will give you feedback in 12 hours.
For any questions, please feel free to contact with Roy.
Email: huiyuan_roy(at)
