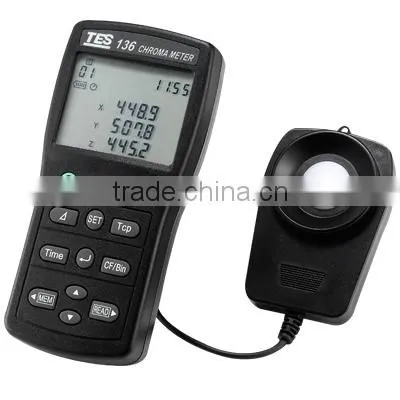

( CHROMA METER ) TES Model: TES-136

( CHROMA METER ) TES Model: TES-136 thumbnail-1
( CHROMA METER ) TES Model: TES-136 photo-1
US$ 1 - 199 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
TES
Model Number:
TES-136
Contact Supplier Request Quote Chat Now
Hangzhou Gigamega New Energy Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name TES
Model Number TES-136



CHROMA METER TES-136 |TES Electrical Electronic Corp.

CHROMA METER

Product Features
  • Triple Display, 4-digit LCD reading.
  • LED Color Bin select function (x,y) or (Tcp,Δuv).
  • User calibration function.
  • User reference value setting function.
  • Illuminance maximum/minimum measurement function.
  • Data Hold function.
  • Data memory and read function.
  • Data logger function.
  • USB Interface.
CHROMA METER TES-136 |TES Electrical Electronic Corp.

Display

Triple display 4 digit LCD read out.

Measuring function

Tristimulus values: XYZ

Chromaticity: (Ev, x, y); (Ev, u’, v’); (Ev, λd, Pe); (Ev, λd, Pc);
(Ev, MAX, MIN).

Correlated color temperature: (Ev, Tcp, Δ<!--[endif]-->uv); (Δ<!--[endif]-->Ev,   Δ<!--[endif]-->Tcp,   Δ<!--[endif]-->uvΔ<!--[endif]-->)

Color difference: (Δ<!--[endif]-->X,   Δ<!--[endif]-->Y,  Δ <!--[endif]-->Z); (Δ<!--[endif]-->Ev,  Δ <!--[endif]-->x,   Δ<!--[endif]-->y); (Δ<!--[endif]-->Ev,   Δ<!--[endif]-->u’,   <!--[endif]-->Δv’);
(Δ<!--[endif]-->Ev,   Δ<!--[endif]-->u’v’); (Δ<!--[endif]-->Ev,   Δ<!--[endif]-->λd,   Δ<!--[endif]-->Pe); (Δ<!--[endif]-->Ev,   Δ<!--[endif]-->λd,   Δ<!--[endif]-->Pc)

Measuring range

0.1 to 99990 lx, 0.01 to 9999 fc (Chromaticity: 5 lx, 0.5 fcd or above)

Accuracy

Ev (Linearity): ±3%rdg±2dgts

xy: ±0.02     (800 lx, Standard Illuminant A measured)

Repeatability

Ev: ±0.5%rdg±1dgt

xy: ±0.003    (800 lx, Standard Illuminant A measured)

Temperature drift

Ev: ±5%rdg±2dgts, xy: ±0.008

Humidity drift

Ev: ±3%rdg±2dgts, xy: ±0.005

CIE photopic f ’1

<8%

Cosine response f2

<3%

Measuring Rate

1 sec

Photosensor

Silicon photocell

Data Memory Capacity

80 sets. (Direct reading from LCD display)

Data Logger Capacity

microSD CARD 4GB

Operating / Storage Conditions

0℃ to 50℃ <80% RH / -10℃ to 60℃ <70%RH

Power Source

6 pcs AAA size Battery

Battery Life (typical)

50 hours

Photosensor Lead Length

150 cm (approx.)

Photosensor Dimensions

92(L) × 60(W) × 29(H)mm

Dimension

150(L) × 72(W) × 35(H)mm

Weight

Meter: 235g, Photosensor: 210g

Accessories

Carrying case, Instruction manual, Battery, CD software, USB cable.
