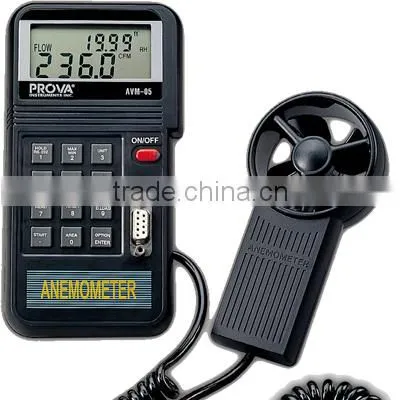

Flow Anemometer AVM-05/AVM-07 |TES Electrical Electronic Corp.
Flow Anemometer
- Flow (CFM,CMM)
- Instant, Ave, 2/3max Flow Measurement
- Velocity m/s, ft/min, knots, Km/hr, mph
- LCD Dual Display
- ℃ / °F
Flow Anemometer AVM-05/AVM-07 |TES Electrical Electronic Corp.
Electrical Specifications: (23℃±5℃)
Range of Wind Velocity:
Units |
Range |
Resolution |
Threshold |
Accuracy |
m/s |
0.0 - 45.0 |
0.01 |
0.5 |
±3% ± 0.3 |
ft/min |
0 - 8800 |
2 |
60 |
±3% ± 20 |
knots |
0.0 - 88.0 |
0.02 |
0.6 |
±3% ± 0.2 |
Km/hr |
0.0 - 140.0 |
0.04 |
1.0 |
±3% ± 0.4 |
mph |
0.0 - 100.0 |
0.02 |
0.7 |
±3% ± 0.2 |
m/s: meter per second ft/min: feet per minute
knots: nautical miles per hour Km/hr: kilometers per hour
mph: miles per hour
Unit Conversion table:
|
m/s |
ft/min |
knots |
Km/hr |
mph |
1 m/s |
1 |
196.87 |
1.944 |
3.60 |
2.24 |
1 ft/min |
0.00508 |
1 |
0.00987 |
0.01829 |
0.01138 |
1 knot |
0.5144 |
101.27 |
1 |
1.8519 |
1.1523 |
1 Km/hr |
0.2778 |
54.69 |
0.54 |
1 |
0.6222 |
1 mph |
0.4464 |
87.89 |
0.8679 |
1.6071 |
1 |
Range of Temperature:
|
Range |
Resolution |
Accuracy |
° C |
0 - 45.0 |
0.2 |
±1.0 |
°F |
32.0 - 113.0 |
0.36 |
±1.8 |
Flow: (Auto-range, CMM: 0 - 45.00 m/s, CFM: 0 -8800 ft/min)
|
Range |
Resolution |
Area |
CFM (ft3/min) |
0 - 999900 |
0.001 - 100 |
0.001- 9999 |
CMM (m3/min) |
0 - 999900 |
0.001 - 100 |
0.001- 9999 |
General Specifications:
Bearing: |
Sapphire jewel bearing |
Temperature sensor: |
K-type thermocouple |
Mounting Nut: |
1/4" x 20 |
Operating Temperature: |
Meter: 0° C ~ 50°C (32° F ~ 122°F) Vane: 0°C ~ 60°C (32° F ~ 140°F) |
Operating Humidity: |
Less than 80% RH |
Operating Pressure: |
500 mB ~ 2 Bar |
Storage Temperature: |
-10°C ~ 60°C (-40°F ~ 140°F) |
Power Consumption: |
Approx. 3 mA |
Battery Type: |
9V |
Battery Life: |
50 hours (for 300mA-hrs battery) |
|
Averaging Period for Wind Speed Measurement:
|
m/s 0.6 sec.(approx.) ft/min 1.2 sec.(approx.) knots 1.2 sec.(approx.) km/hr 2.2 sec.(approx.) |
Dimension: Meter |
88x 168x 26.2mm (3.46"x 6.61"x 1.03") |
Dimension: Vane |
66x 132x 29.2mm (2.60"x 5.22"x 1.15") |
Weight: |
350g / 12.34oz (battery included) |
Accessories: |
Carrying case x 1 Users manual x 1 9V Battery x 1 Software CD x 1 (AVM-07) Software manual x 1 (AVM-07) RS232C cable x 1 (AVM-07) |
Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days
OEM available
