OIML electronic digital weighing indicators (XSB5-AH)
Basic performance
1) Measure accuracy is 0.05 class;controlling rate is 80times per sencond,Connected with strain sensors
2) XSB5, 5 external input control,8 relay outputs.Implement Configuration control logic.
3) Aluminum alloy housing
4) Accomplish the net weight,gross weight, peak weight and valley weight detecting
5) 6 alarming way for upper/lower limit, deviation and range.
digital weighing indicator Description
Model |
Technical specifications |
|||
XSB5- |
Measure accuracy is 0.05 class;controlling rate is 80times per sencond |
|||
AH |
160×84×110 mm Horizontal Type Perforate dimension:152×76 |
|||
CH |
96×48×82 mm Horizontal Type Perforate dimension:92×45 |
|||
Panel specifications |
5 LED |
|||
Range of input signal |
Ratio measurement. for 4 line load cell |
|||
Contact input |
K1 |
1 External switch input K,for zero |
||
K2~K5 |
2~5Switch Input options |
|||
Alarm(250V AC/3A,Resistive load) |
R4 |
4 relay outputs |
||
R8 |
8relay outputs |
|||
External power source |
10V±2%,30ppm,150 Ma |
|||
Transmitter (optional) |
A1 |
Current output(4-20)mA |
||
(Resolution:1/3000;Load capacity:600Ω) |
A2 |
Voltage output(1-5)V |
||
Communications (optional) |
S1 |
TC ASCⅡDealRS232 |
||
(Communication speed:2400,4800,9600,19200) |
S2 |
TC ASCⅡDeal RS485 |
||
(Communication address:0-99) |
M1 |
modbus-RTU Deal RS232 |
||
|
M2 |
modbus-RTU Deal RS485 |
||
Power Specifications |
V0 |
100-240V AC 50/60 Hz |
||

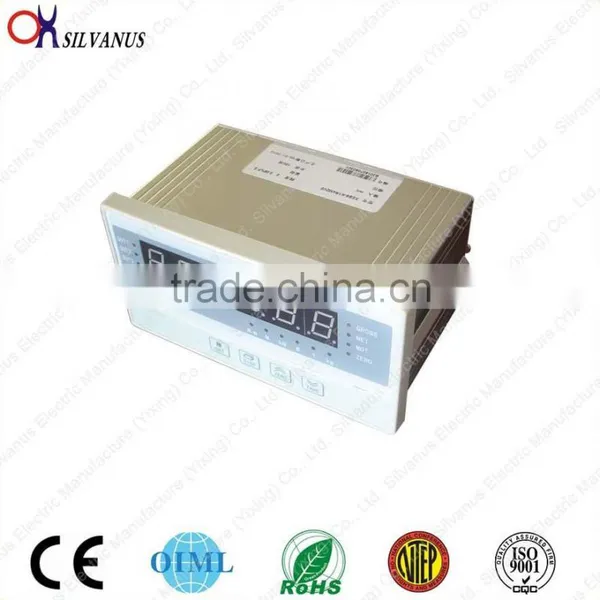

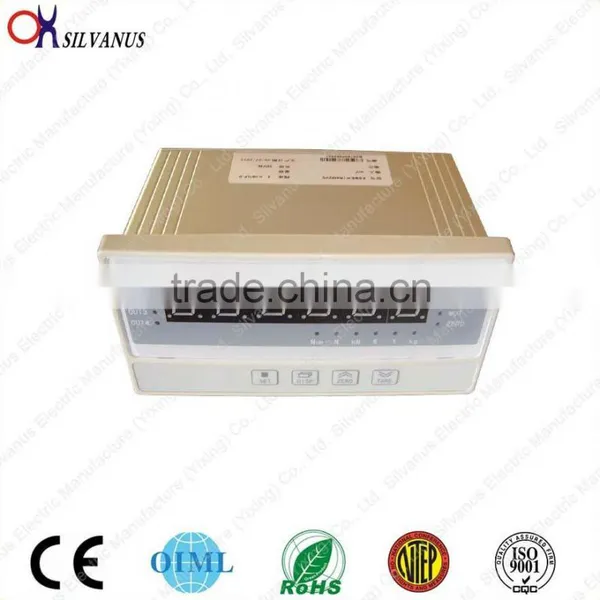

Appearance:

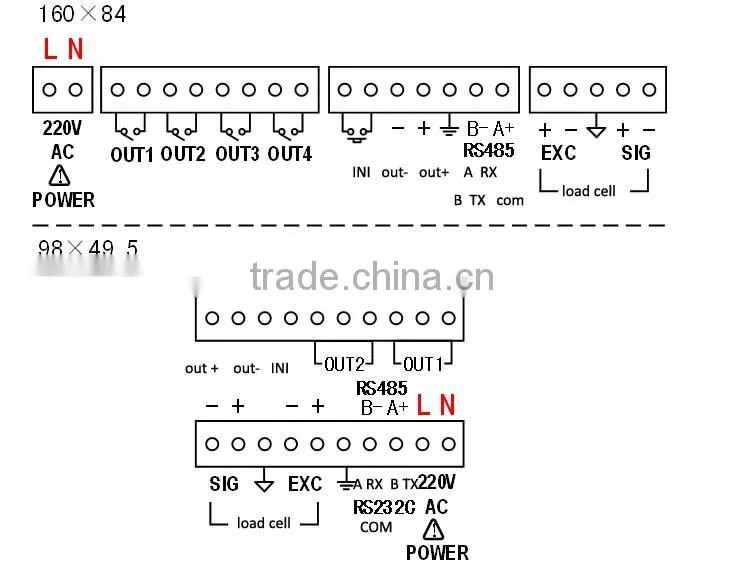

Wiring diagram:

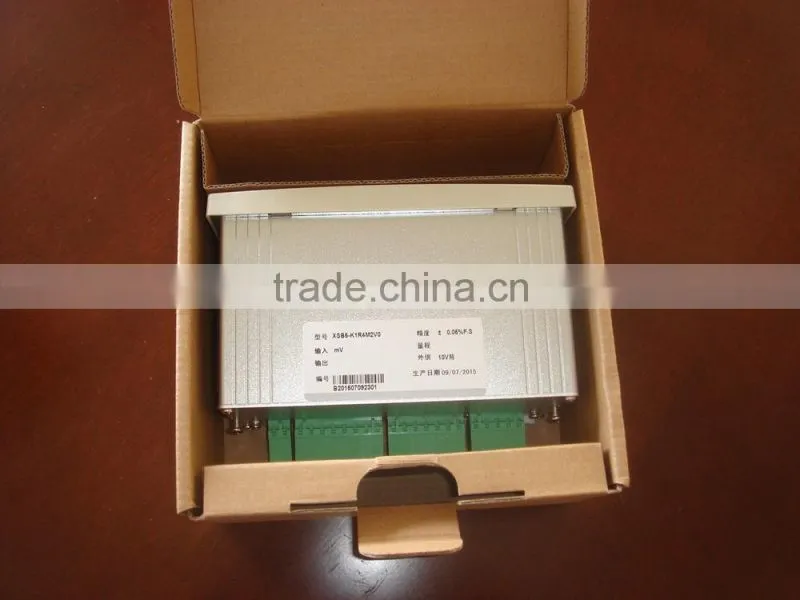

Package and Delivery:
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
