Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 60W ELN-60-15 MEANWELL/LED POWER SUPPLY/CE UL EMC

60W ELN-60-15 MEANWELL/LED POWER SUPPLY/CE UL EMC

Name: 60W ELN-60-15 MEANWELL/LED POWER SUPPLY/CE UL EMC
Brand: MEAN WELL
SKU: 110204847

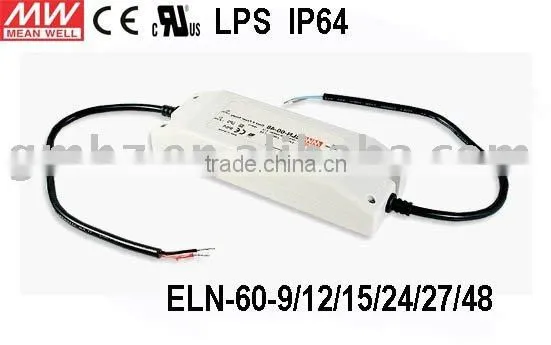

60W ELN-60-15 MEANWELL/LED POWER SUPPLY/CE UL EMC thumbnail-1

60W ELN-60-15 MEANWELL/LED POWER SUPPLY/CE UL EMC photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MEAN WELL

Model Number:

ELN-60-15

Contact Supplier Request Quote Chat Now

Hangzhou Gigamega New Energy Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MEAN WELL

Model Number ELN-60-15

Output Type Single

Output Voltage 7.5-15VDC

Output Current 0-4A

Input Voltage Other, 90 ~ 264VAC 127 ~ 370VDC

Output Power Other, 60W

Specifications

60W ELN-60-15 MEAN WELL/
LED POWER SUPPLY
High quality/low price
UL CE EMC
2years warranty

MEANWELL LED POWER SUPPLY

ELN-60-15

MODEL		ELN-60-9	ELN-60-12	ELN-60-15	ELN-60-24	ELN-60-27	ELN-60-48
OUTPUT	DC VOLTAGE	9V	12V	15V	24V	27V	48V
	CONSTANT CURRENT OPERATION VOLTAGE Note.5	8 3 ~ 9V	6 ~ 12V	7.5 ~ 15V	12 ~ 24V	13.5 ~ 27V	24 ~ 48V
	CURRENT RANGE	0 ~ 5A	0 ~ 5A	0 ~ 4A	0 ~ 2.5A	0 ~ 2.3A	0 ~ 1.3A
	RATED CURRENT	5A	5A	4A	2.5A	2.3A	1.3A
	RATED POWER	45W	60W	60W	60W	62.1W	62.5W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p	250mVp-p
	VOLTAGE ADJ. RANGE	8.7 ~ 10.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	21.6 ~ 26.4V	24.3 ~ 29.7V	43.2 ~ 52.8V
		Can be adjusted by internal potential meter SVR1
	VOLTAGE ADJ. RANGE	-25% ~ 3%. Can be adjusted by internal potential meter SVR2
	VOLTAGE TOLERANCE Note.3	5.0%
	LINE REGULATION	1.0%
	LOAD REGULATION	2.0%
	SETUP, RISE TIME	500ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR
	EFFICIENCY (Typ.)	82%	85%	86%	87%	87%	88%
	AC CURRENT (Typ.)	1.2A/115VAC 0.7A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 60A/230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC
PROTECTION	OVER CURRENT	95 ~ 110%
		Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	11 ~ 13.5V	13.8 ~ 16V	17.5 ~ 21V	28 ~ 32V	31 ~ 35V	54 ~ 60V
		Protection type : Shut down o/p voltage, re-power on to recover
	FUNCTION DIMMING CONTROL	1 ~ 10VDC .or PWM signal : 100Hz ~ 3KHz
ENVIRONMENT	WORKING TEMP.	-20 ~ +60^oC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80^oC , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/^oC (0 ~ 50 ^oC)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC(Note 4)	SAFETY STANDARDS	UL1310 Class 2, CAN/CSA C22.2 No. 223-M91(except for 48V), IP64 approved ; design refer to TUV EN60950-1, EN61347-2-13
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
	HARMONIC CURRENT	Compliance to EN61000-3-2 Class A, EN61000-3-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
OTHERS	MTBF	603Khrs min. MIL-HDBK-217F
	DIMENSION	18161.535mm (LWH)
	PACKING	0.4Kg; 24pcs/11Kg/0.75CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25^oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
