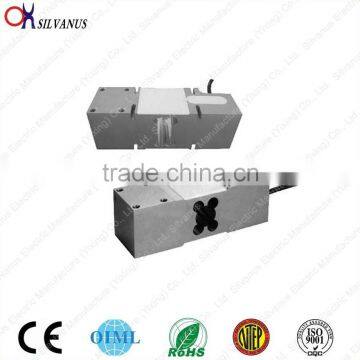

China 50kg Single Point Load Cell PX11

Name: China 50kg Single Point Load Cell PX11
Brand: Silvanus
SKU: 110204441
Availability: InStock

China 50kg Single Point Load Cell PX11 thumbnail-1

China 50kg Single Point Load Cell PX11 photo-1

US$ 15 - 30 MOQ: 50 Sets

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Silvanus

Model Number:

PX11

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Silvanus

Model Number PX11

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Single Point Load Cell (PX11)(50~500kg)

PX11 Product description

1.Box type single point loading structure

2.Corner adjusted before delivery to ensure consistent output in stated load plane

3.Simple to install , easy to use

4.Suitable for electronic platform scale , etc.

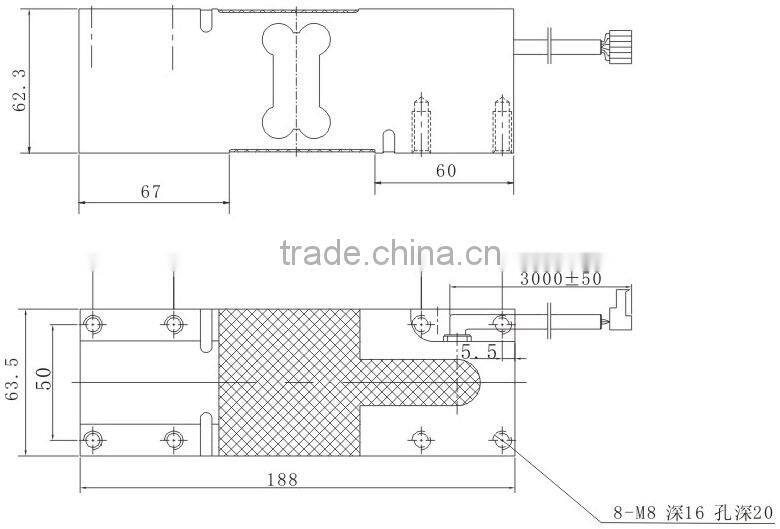

PX11 Load Cell Dimensions(mm):

PX11 Load Cell Specifications:

Emax(Max. capacity)	kg	50~500
Sensitivity	mV/V	2.0±0.2
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10℃	≤±0.17	≤±0.011
Temperature effect on zero	%F.S/10℃	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	400±30Ω
Output resistance	Ω	350±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	250
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP65
Load cell material		Aluminium
Cable length	m	3
Cable outer caliber	mm	Φ5
Platform Size	mm	600×600
