Home > Electrical & Electronics > Sensor > Pressure Sensor > Alloy Steel Circular Plate Type Load Cell(YBC)(50kg~50t) Digital Weighing Scales

Alloy Steel Circular Plate Type Load Cell(YBC)(50kg~50t) Digital Weighing Scales

Name: Alloy Steel Circular Plate Type Load Cell(YBC)(50kg~50t) Digital Weighing Scales
Brand: SILVANUS
SKU: 110204309
Availability: InStock

Alloy Steel Circular Plate Type Load Cell(YBC)(50kg~50t) Digital Weighing Scales thumbnail-1

Alloy Steel Circular Plate Type Load Cell(YBC)(50kg~50t) Digital Weighing Scales photo-1

US$ 79 - 200 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

YBC

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number YBC

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Circular Plate Type Load Cell(YBC)(50kg~50t)

YBC Load Cell Features :

l Hermetically sealed structure

l Max. Capacities :50k g~50t

l Wheel shaped load cell ,high antiseptic material

l High permissible dynamic load,small deflection

l Convenient installation, good interchangeability

l Idea for various hostile environment

l Suitable for various measure equipment

YBC Load Cell Application :

Suitable for hopper scale, scale, roller scale,continuous casting ladle electronic scale and various special weighing apparatus

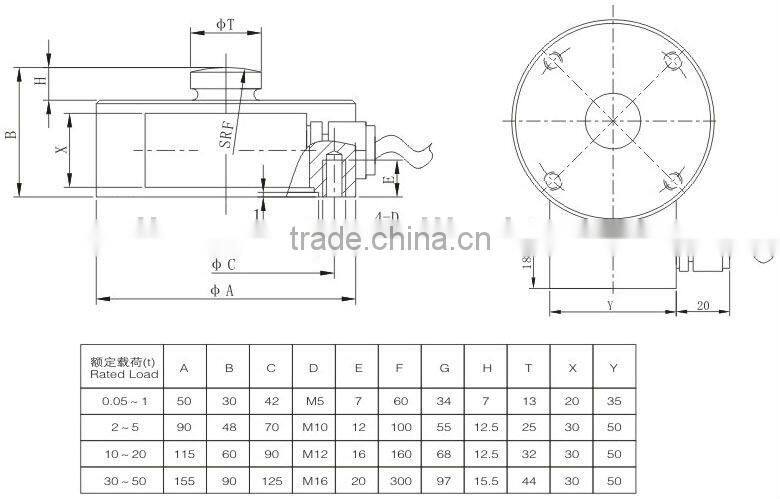

YBC Load Cell Dimensions(mm):

YBC Load Cell Specifications:

Emax(Max. capacity)	t	0.05~50
Sensitivity	mV/V	2.0±0.2
Accuracy class		C2
Maximum number of verification intervals	nmax	2000
Minimum load cell verification interval	Vmin	Emax/5000
Combined error	%F.S	≤±0.030
Creep	%F.S/30min	≤±0.024
Temperature effect on sensitivity	%F.S/10°C	≤±0.017
Temperature effect on zero	%F.S/10°C	≤±0.023
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	352±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…12
Insulation resistance	MΩ/50V	>5000
Protection class		IP67/IP68
Load cell material		Alloy Steel
Cable length	m	3m(0.05~1t);6m(2~5t);12m(10~50t)
Cable outer caliber	mm	Φ6

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
