Home > Electrical & Electronics > Sensor > Pressure Sensor > Alloy Steel Single Point Load Cell for Electronic Weight Scale(PX4) Supplier's Choice

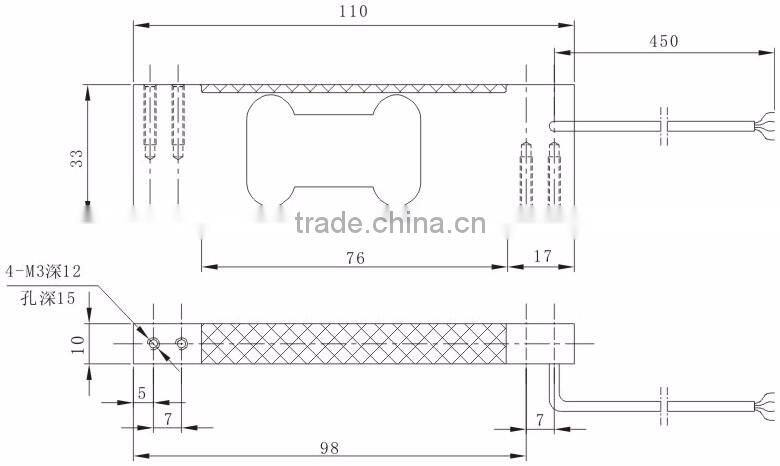

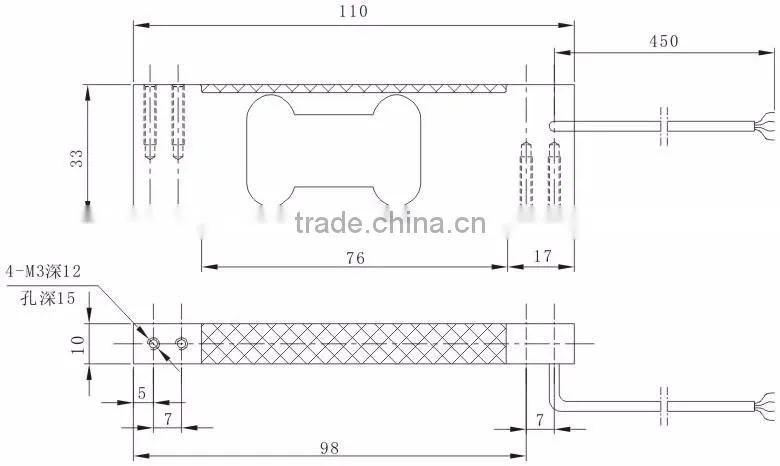

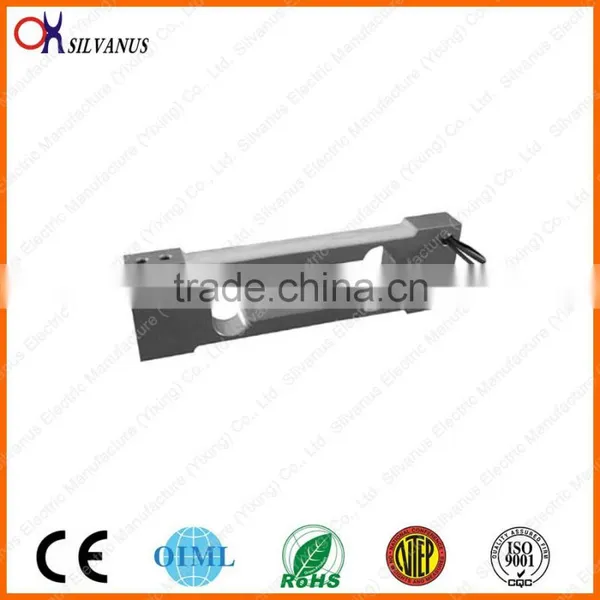

Alloy Steel Single Point Load Cell for Electronic Weight Scale(PX4) Supplier's Choice

Name: Alloy Steel Single Point Load Cell for Electronic Weight Scale(PX4) Supplier's Choice
Brand: SILVANUS
SKU: 110204151
Availability: InStock

Alloy Steel Single Point Load Cell for Electronic Weight Scale(PX4) Supplier's Choice thumbnail-1

Alloy Steel Single Point Load Cell for Electronic Weight Scale(PX4) Supplier's Choice photo-1

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

PX4

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number PX4

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Product Description

Product description

l Single point loading structure

l Corner adjusted before delivery to ensure consistent output in stated load plant

l Simple to install , easy to use

l Suitable for electronic platform scale , etc.

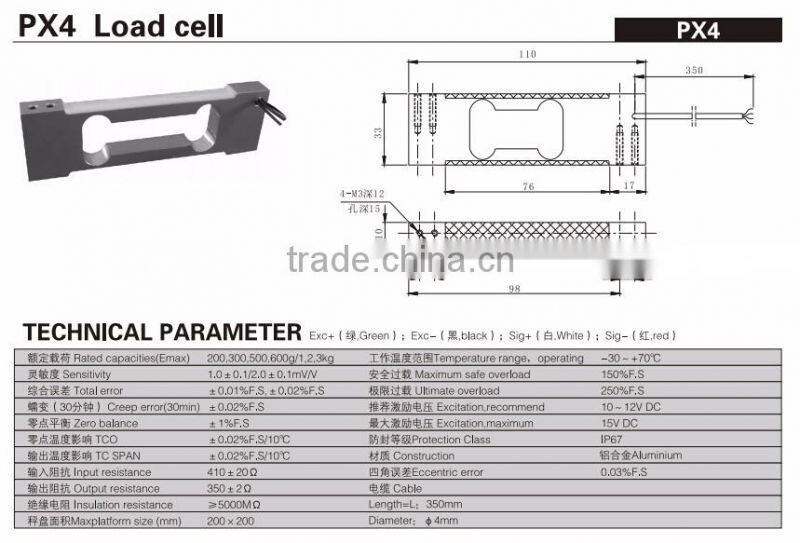

Technical data

Emax(Max. capacity)	kg	0.2~3
Sensitivity	mV/V	1.0±0.1;2.0±0.2
Accuracy class		C2	C3
Maximum number of verification intervals	n_max	2000	3000
Minimum load cell verification interval	V_min	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10℃	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10℃	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	410±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66
Load cell material		Aluminum
Cable length	mm	250
Cable outer caliber	mm	Φ4
Platform Size	mm	200×200

Packaging & Shipping

Our Services

Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Company Information

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
