Home > Electrical & Electronics > Sensor > Pressure Sensor > Bench Scale Weight Sensor Mini Load Cell 50kg 100kg 200kg 500kg

Bench Scale Weight Sensor Mini Load Cell 50kg 100kg 200kg 500kg

Name: Bench Scale Weight Sensor Mini Load Cell 50kg 100kg 200kg 500kg
Brand: Silvanus
SKU: 110203303
Availability: InStock

Bench Scale Weight Sensor Mini Load Cell 50kg 100kg 200kg 500kg thumbnail-1

Bench Scale Weight Sensor Mini Load Cell 50kg 100kg 200kg 500kg photo-1

US$ 15 - 30 MOQ: 50 Sets

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Silvanus

Model Number:

PX12

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Silvanus

Model Number PX12

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

bench scale weight sensor mini load cell 50kg 100kg 200kg 500kg

PX12 Product description

1.Box type single point loading structure

2.Corner adjusted before delivery to ensure consistent output in stated load plane

3.Simple to install , easy to use

4.Suitable for electronic platform scale , etc.

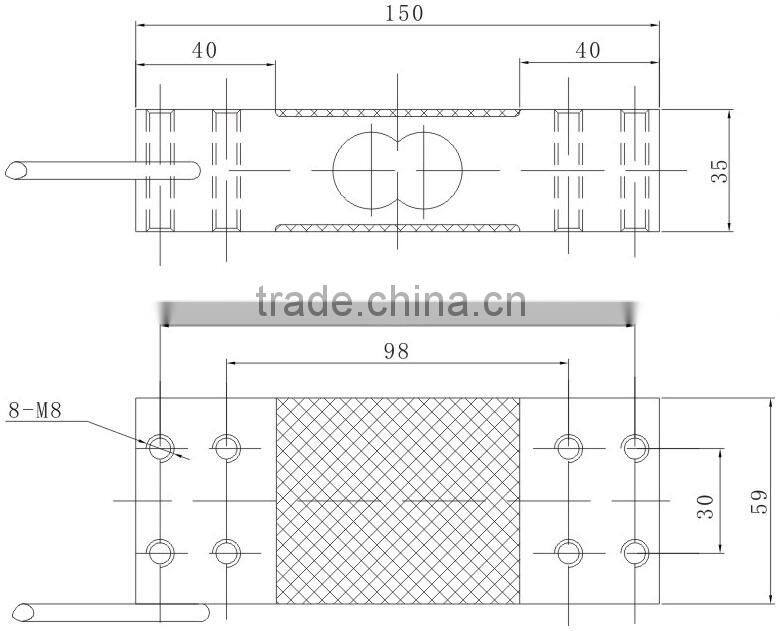

PX12 Load Cell Dimensions(mm):

PX12 Load Cell Specifications:

Emax(Max. capacity)	kg	50~500
Sensitivity	mV/V	2.0±0.2
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10℃	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10℃	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	410±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66
Load cell material		Aluminium
Cable length	m	3
Cable outer caliber	mm	Φ5
Platform Size	mm	600×600

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.

LETTER OF PATENT:

Transportation	Routine
By car	3 hours from Shanghai to Yixing
By high speed railway	2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company.
