Lift Hoisting Equipment Crane Hoist Overload Limiter (QCX)

Lift Hoisting Equipment Crane Hoist Overload Limiter (QCX) thumbnail-1
Lift Hoisting Equipment Crane Hoist Overload Limiter (QCX) photo-1
US$ 53 - 85 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Silvanus
Model Number:
QCX
Contact Supplier Request Quote Chat Now
Silvanus Electric Manufacture (Yixing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Silvanus
Model Number QCX
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor

hoist load limiter

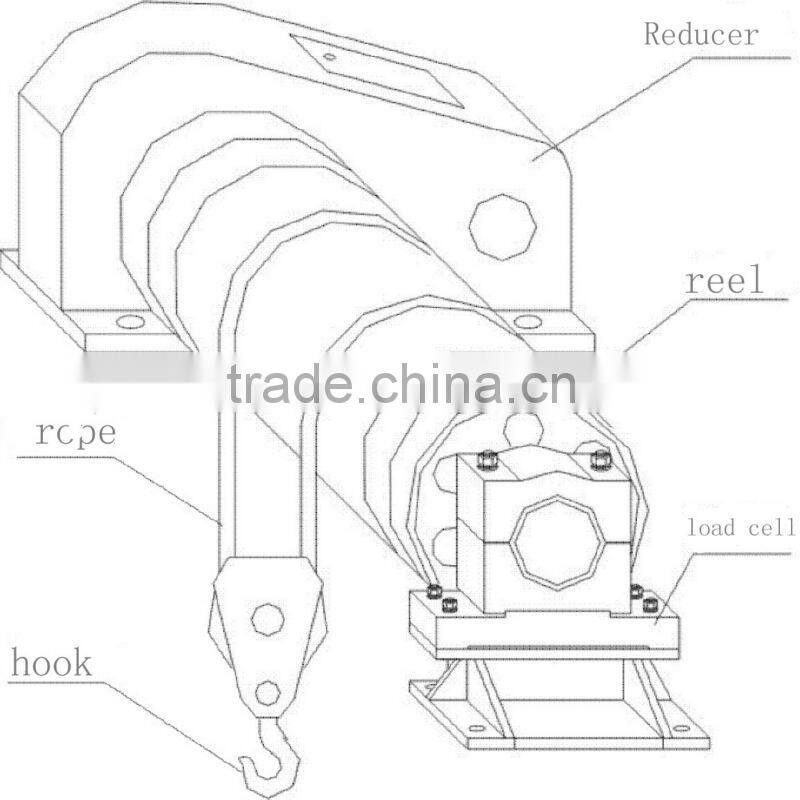

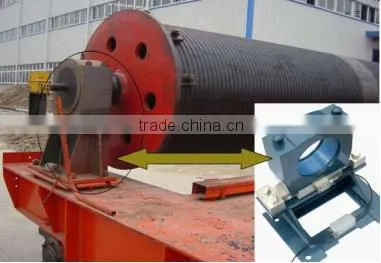

 is applied to crane. It is a special safe protect device. it make up with load cell, wire rope ,indicator and connection box.

---.High-quality overload limiter
---Structure, convenient to install and maintenance
---Good ability for overload protect







 main technical index

  1. application:0.5~63t
  2. sensitivity:±5%(F.S)
  3. error:±5%
  4. safe load limit:150%
  5. work environment:-10~60°C,90%RH
  6. mains voltage: ~380V±10% 50HZ
  7. relay contact capacity:380v 5A
  8. load cell protect class:IP65
  9. electric control box protection class:IP54
  10. set up warning point

1)   warning forecast---90% of the rated load(red glint, buzzer warning sound intermittently. but don’t cut off power supply )

2)   warning delay----105% of the rated load(delay 1~2 seconds red light, buzzer sound warning continuously. then cut off power supply)

3)   warning immediately----130% of the rated load(red light, buzzer sound warning continuously .then cut off power supply at

once)

lift hoisting equipment crane hoist overload limiter (QCX)lift hoisting equipment crane hoist overload limiter (QCX)
