Specifications
WF10 is a versatile, two-way passive system with a 10'' LF and a 1'' HF compression driver. It is a professional loudspeaker,Pro Audio / PA Speaker / PA Audio / Speaker / professional speaker / Line Array system / Audio Speaker

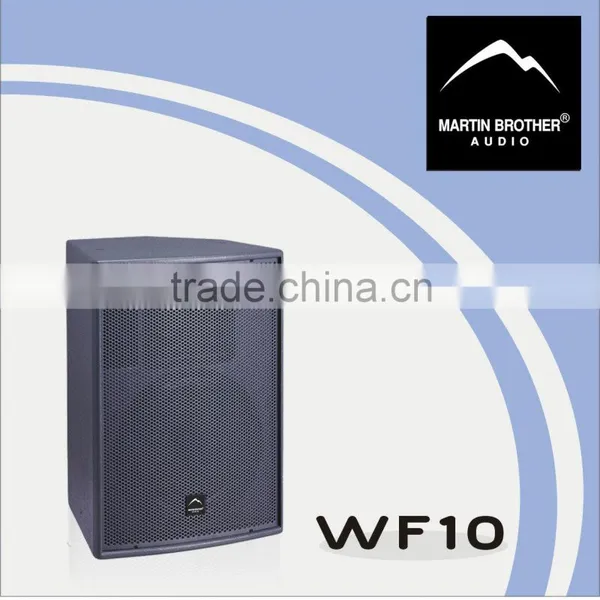

The Wavefront Series WF10 is a versatile, two-way passive system designed for applications where high output is required from an ultra-compact enclosure. It features a long-excursion, 10'' (200mm) low frequency driver and a 1'' (25mm) HF compression driver mounted on a constant directivity 90°x 50° horn. The horn is user rotatable to allow the WF10's multi-angle enclosure to be used in either its vertical or horizontal orientation, depending on the application.
TECHNICAL SPECIFICATIONS
Type: Ultra-compact two-way passive
Drivers: 1 x 10" (250mm) / 2.5"(63.5mm) voice coil LF driver,
1 x 1'' (25mm) exit HF compression driver
Frequency response: 65Hz-20kHz ±3dB
Rated Power: 300W AES, 1200W Peak
Impedance: 8 ohms
Sensitivity: 96dB
Maximum SPL: 119dB continuous,125dB peak
Connector: 2 x Neutrilk NL4
Protective Grille: Grey perforated steel
Dimensions: (W) 351 mm * (H) 500 mm * (D) 317mm
Weight: 17kg
