HSB electronic ladle scale
Introduction:
According to the special requirements for metallurgical enterprises, Our company developed a load cell which can working in 250 ℃ high temperature design can be rotated in any angle of slip ring transmitters designed modular installation of steel hot ladle of boxes and other unique electronic weighing scales, effectively solve the reached temperature measurement problems. Products applied in many steel mills, have been well received.
HSB series electronic ladle scale get Wuxi high-tech new product Award in 2002, science and technology progress award in 2003. Equipped with high temperature load cell is a patented product of our company, in 1997 to fill the gap, It has achieved the international advanced level ,judged by national technical experts. It is the first nationalization high temperature load cell. China's first high-temperature load cell was born in our company.
Main performance parameter:
1.Solve the measurement problem in high temperatures,
2.Create new field in Scale
3.Yixing city science and technology commission first prize for new products in 2001
4.Slip ring transfer, a national initiative, rotation arbitrary
5.Transformation is most and the date is earliest in domestic
6.High quality steel modular installation
7. Equipped with wireless transmitter system
Specification:
|
Model Project |
HSB-A |
HSB-B |
HSB-C |
HSB-D |
|
Weight Range |
0~500t |
0~500t |
0~500t |
0~200t |
|
Size |
According to actual conditions |
||||
Load Cell |
0~300t |
0~300t |
0~300t |
0~100t |
|
Division |
50~1000kg |
50~1000kg |
50~1000kg |
500kg |
|
Work Temperature |
-40°C~250°C |
||||
Quantity of load cell |
4 |
4 |
4 |
2 |
|
Accuracy class |
iv class |
||||
Overload Capacity |
150%F.S |
||||
Ultimate load capacity |
300% F.S |
||||
Outline method |
Bottom Outline |
Side Outline |
|||

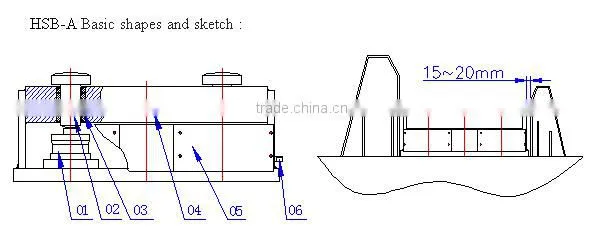

1. Load cell, 2.Host head 3.Guide Sleeve
4. Body Scale 5. Window boards 6. Air tube

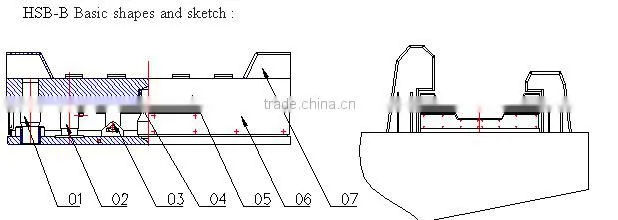

1.Guide post 2. High temperature load cell 3. Up device
4. Guide sleeve 5.load-bearing beam 6. Protection board 7.Final Guide

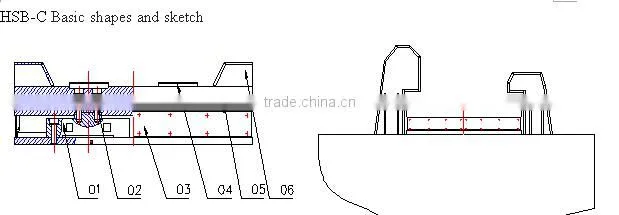

1. High temperature load cell 2.High Strength Bolt tection Board
4. Host head 5, load-bearing beam 6.Final Guide
Specification
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
