Specifications
F8 is a versatile, two-way passive system designed for applications.One 8" (200mm) low frequency driver and a 1" (25mm) HF drivepro audio / pa speaker / speaker / loudspeaker / pro speaker / professional speaker / stage speaker / audio / audio equipment / speaker system / pa system

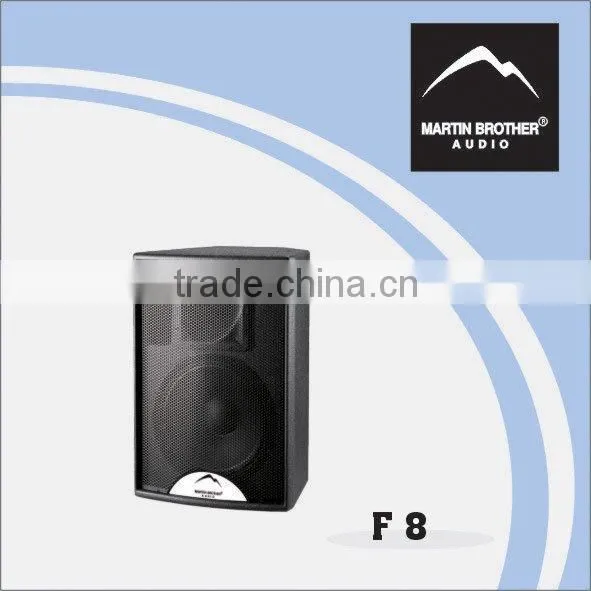

The Blackline Series F8 is a versatile, two-way passive system designed for applications where high output is required from an ultra-compact enclosure. It features a long-excursion, 8" (200mm) low frequency driver and a 1" (25mm) HF compression driver mounted on a constant directivity 90° x 50° horn. The horn is user rotatable to allow the F8's multi-angle enclosure to be used in either its vertical or horizontal orientation, depending on the application.
TECHNICAL SPECIFICATIONS
Type: Compact, two way passive system,
Drivers: 1x 8" (2000mm) / 2" (50mm) bass driver,
1'' (25mm) exit HF compression driver
Frequency response: 70Hz-20kHz±3dB
Rated Power: 150W AES, 600W peak
Impedance: 8 ohms
Sensitivity: 93dB,
Maximum SPL: 113 dB continuous, 119 dB peak
Connector: 2 x Neutrilk NL4
Protective Grille: Black perforated steel
Dimensions: (W) 299 mm * (H) 435 mm * (D) 269mm
Weight: 12kg
