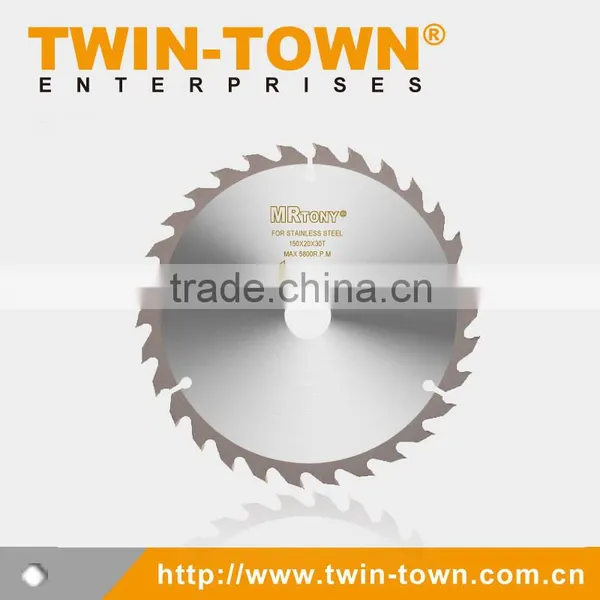

DRY-CUT TCT Saw Blades for Metals

Specifications

1:TCT DRY-CUT for Metals
2: Sharp and cool cut in steel
3:Smooth finishing,much longer life
4:HM and Cermet tips available

 Steel Working

TCT DRY-CUT Circular Saw Blades for Metals on Dry-Cut Machines



• Steel working series is applied on LOW RPM DRY-CUT circular saw and chop saw for cutting     mild steel, stainless steel, iron, aluminium, in shapes of pipe, angle, square, sheet, channel & bar, etc.



• Obviously surpass abrasive discs: sharp and cool cuts in steel, no sparks or burs, smooth finishing, dramatic time savings, much longer life.

• HM and Cermet tips available.





Size available as follows:





Code	D(mm)	B/b(mm)	H(mm)	Z	Purpose
SW1011	150	1.8/1.4	20	30
SW1021	160	1.8/1.4	20	30
SW1031	180	1.8/1.4	20	36
SW1032	180	1.8/1.4	20	40
SW1033	180	1.8/1.4	20	48	Stainless Steel
SW1041	185	1.8/1.4	20	40
SW1051	190	1.8/1.4	30	36
SW1052	190	1.8/1.4	30	48	Stainless Steel
SW1061	210	1.8/1.4	30/25.4	40
SW1062	210	1.8/1.4	30/25.4	54	Stainless Steel
SW1071	216	1.8/1.4	30	44
SW1081	230	2.0/1.6	30/25.4	48
SW1082	230	1.8/1.4	30/25.4	60	Stainless Steel
SW1091	235	2.0/1.6	30/25.4	48
SW1092	235	1.8/1.4	30/25.4	60	Stainless Steel
SW1101	255	2.0/1.6	30/25.4	48
SW1102	255	2.0/1.6	30/25.4	60	Stainless Steel
SW1111	305	2.2/1.8	25.4	60
SW1112	305	2.2/1.8	25.4	80	Stainless Steel
SW1121	350	2.2/1.9	30/25.4	80
SW1131	355	2.4/2.0	30/25.4	66
SW1132	355	2.4/2.0	30/25.4	72
SW1133	355	2.2/1.9	30/25.4	90	Stainless Steel
SW1141	400	3.0/2.5	30/25.4	66
SW1142	400	3.0/2.5	30/25.4	72
SW1143	400	3.0/2.5	30/25.4	90	Stainless Steel





Main Production Process:







Cutting Material as follows:
