Home > Industrial Equipment & Components > Valve > Ball Valve > Solar Water Heater 1000 Liter Valve

Solar Water Heater 1000 Liter Valve

Name: Solar Water Heater 1000 Liter Valve
Brand: Winning
SKU: 110193797
Availability: InStock

Solar Water Heater 1000 Liter Valve thumbnail-1

Solar Water Heater 1000 Liter Valve photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Safety

Pressure:

Low Pressure

Contact Supplier Request Quote Chat Now

Beijing Winning Thermo Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Safety

Pressure Low Pressure

Power Other, Self-Actuator, Self-Actuator

Material Stainless Steel

Temperature of Media Medium Temperature

Media Water

Port Size 1/2"-2"

Place of Origin Beijing, China

Model Number TCC

Brand Name Winning

Application Other

1.Product Show

Principle:

Typically in heat water system, when entering water temperature is below Thermal Circuit-Control set point, the thermal actuator will begin to open the valve to establish a flow rate that will achieve

set point. If the water temperature exceeds the set point, the valve will begin to throttle back to find the

current equilibrium point. Continuously operating at the optimum temperature minimizes system heat-loss thereby saving energy.

SELF-ACTUATOR (open/close): NO ELECTRICAL POWER, NO MANUAL WORK!

Function:

This constant, automatic response to water temperature enables each hot water branch to quickly and

consistently deliver the right temperature of hot water to each connected fixture.

2.Application

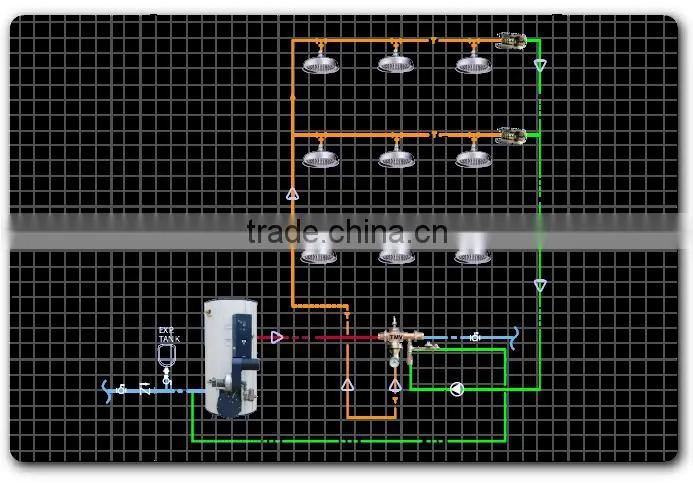

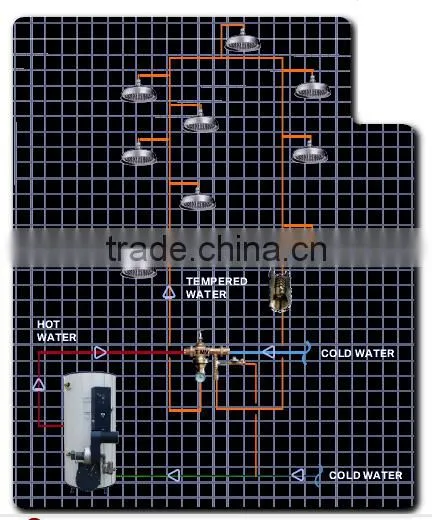

SINGLE CONTINUOUS DOMESTIC HOT WATER SUPPLY LOOP (NO BRANCHES)

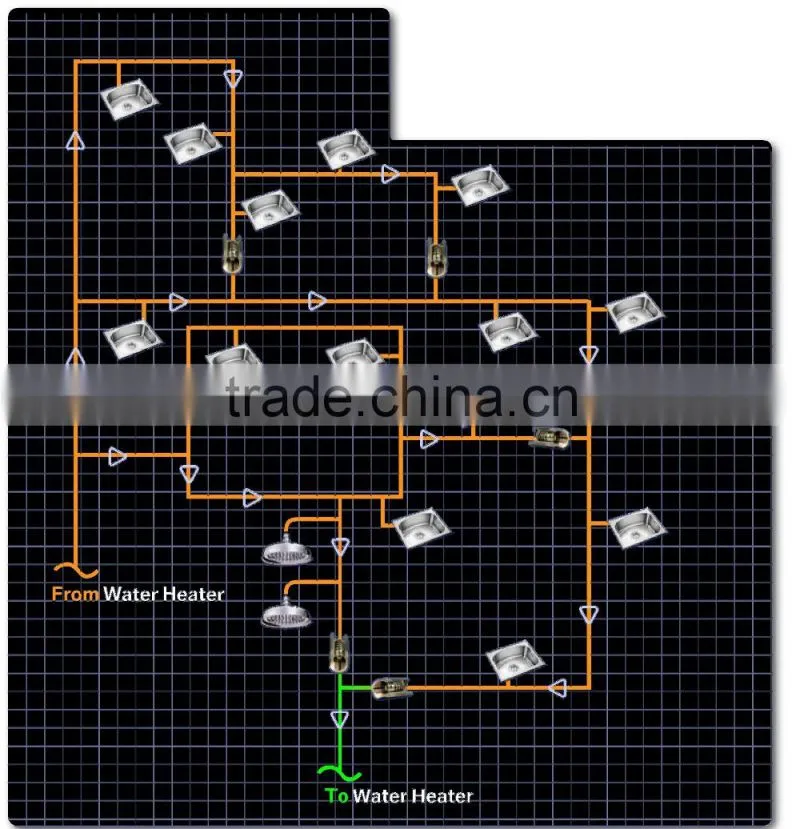

MULTI-BRANCH DOMESTIC HOT WATER SYSTEM

BUILDINGS WITH WIDELY SPACED RANDOM FIXTURE LOCATIONS

3.Performance

Model	Port Size	Maximum Operating Temperature		Maximum Operating Pressure		Dimension		Net Weight		Flow Rate (Cv)
Model	Port Size	°C	°F	MPa	PSI	mm	Inch	g	lb	Flow Rate (Cv)
TCC-0.5	1/2”NPT	130	266	1.4	203	Φ29*72	1.141.142.83	272	0.60	1.2
TCC-0.75	3/4”NPT	130	266	1.4	203	Φ35*80	1.381.383.15	318	0.70	1.7
TCC-1	1” NPT	130	266	1.4	203	Φ44*86	1.731.733.39	726	1.60	3.2
TCC-1.25	1-1/4”NPT	130	266	1.4	203	Φ54*119	2.132.134.69	1225	2.70	5.0
TCC-1.5	1-1/2”NPT	130	266	1.4	203	Φ60*119	2.362.364.69	1724	3.80	7.5
TCC-2	2 “NPT	130	266	1.4	203	Φ76*124	2.992.994.88	2540	5.60	14.0
