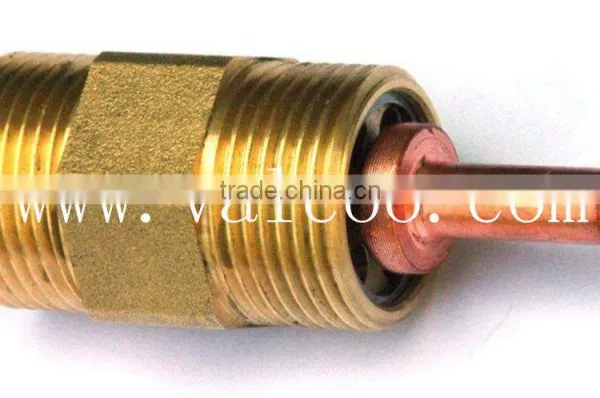

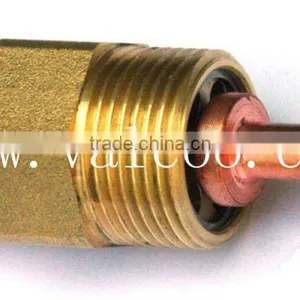

Help CenterSP65 Scald Protection Valve
Related Products
As the fluid temperature increases to within the operating range of the SP64 , the thermal actuator modulates the valve open. If the fluid temperature is above the acceptable range, the valve will continue to modulate open allowing additional fluid discharge. As the outlet temperature falls slightly, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature even as operating conditions vary.
The model SP64 reverse action valve can be used to regulate the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment of a process. Since the SP64 valves open on rising temperatures, they can be used in many thermal relief valve applications.
Design Features:
* Brass body and thermal element
* Narrow temperature band
* Compact, low mass - Fast response
* Ram-type plug for reliable tight shutoff
* Sensitive to temperature only
* Unaffected by pressure variations
* Easy installation with pipe wrench
* Discharges the minimum amount of water required to keep water temperature within safe limits
Model |
Port Size |
Open~Close Temperature(°C) |
Maximum Operating Temperature(°C) |
Maximum Operating Pressure(MPa) |
Flow Rate (Cv) |
Dimension(mm) |
Net Weight(g) |
SP65 |
NPT Male 3/4" |
37~32 |
+95 |
1.0 |
0.6 |
Φ30*69 |
130 |
Notes:
*Other openning temperature is available
*Seal material:EPDM,Viton available
*Connection size upto DN50 available
