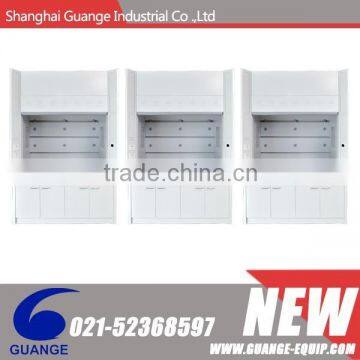

Acid fume hood with mobility beneath cabinet Model No.SHGG-T57128

Acid fume hood with mobility beneath cabinet Model No.SHGG-T57128

a. General description

Standard :BS EN 14175

Width: 1200mm/1500mm/1800mm

Depth:800/900 mm

Heigh:2350 mm

Worktop Material: various according to customer’s requirement

Worktop Height:900mm from the ground

Cabinet Style: Floor stand style or mobile under cabinet

Sash : Clear toughened glass/safe glass ,can hover at any height

Light source: Fluorescent light

Electronic power source: Multifunctional socket

Cup sink: PP material

Cock: gas / water valve

Optional: Auto sash closer/ water supply system/VAV system.

b. The advantages

1)the gas and water valves are positioned on the external vertical side airfoils and outlet nozzles are located on the side wall of the internal chamber.

2)the sash run in concealed tracking designed to facilitate smooth operation and is counter balanced using stainless steel cables, lead balancing weight and a twin ball race pulley arrangement. In the event of suspension wire failure it is not be possible for the sash to drop.

3)the bell-shape exhaust collar, designed with rectangular air entrance and round-shape air outlet.

4)low aerofoil, located on the frontal edge of the worktop under the sash, providing smooth air passage and preventing turbulence.

c. certificate

The BS EN14175-3 Standard Includes:

Inner plane SF6 tracer gas containment test

Outer plane SF6 tracer gas containment test

ROBUSTNESS CONTAINMENT test

AIR EXCHANGE EFFICIENCY test, PRESSURE DROP test

SASH test

d.Extensive product line:

Standard fume hood

High performance fume hood

Distillation and walk in fume hood

HF acid fume hood

Perchloric acid water wash fume hood

Radio isotope fume hood

ADA fume hood

Customizing is entirely acceptable as requirement

Steel lab fume cupboard  Dimensions

Maintenance window for easy and convenience hood maintenance in later

 Three pieces of air baffles, Optional baffles material: Stainless steel

Brand socket ,Optional water-proof socket

Stainless steel handle resisting the chemical corrosive, good touch feeling and appearance

Mobility beneath cabinet

Convenience for clean up

Select accessory for your fume hood

Select suitable PP Fan for your fume hood

Select suitable Air flow regulator for your fume hood

Select suitable PP sink for your fume hood

1.Middle size sink Model No. SHGG-5102

2.Oval Cup Sink Model No. SHGG-5201

3.Square Cup Sink Model No. SHGG-5202

4.Round Cup Model No. SHGG-Sink 5203

5.Oval Cup Sink Model No. SHGG-5204
