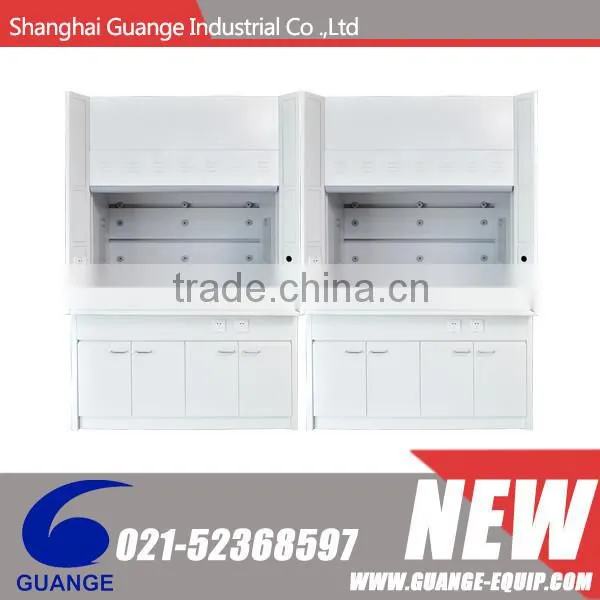

Help CenterChemical Fume Hood With Mobility Beneath Cabinet Model No.SHGG-T57128
Related Products
-
Science Laboratory Furniture/Laboratory Table Model No.SHGG-G51020NegotiableMOQ: 5 Pieces -
Total Steel Laboratory Workbench Model No.SHGG-G51016-BNegotiableMOQ: 1 Piece
-
Steel Wood Laboratory Workbench Model No.SHGG-G51011NegotiableMOQ: 1 Piece
-
Steel Wood Laboratory Workbench Model No.SHGG-GM51118-BNegotiableMOQ: 1 Piece
-
Total Steel Laboratory Workbench Model No.SHGG-G51018NegotiableMOQ: 1 Piece
a. Chemical fume hood General description
Standard :BS EN 14175
Width: 1200mm/1500mm/1800mm
Depth:800/900 mm
Heigh:2350 mm
Worktop Material: various according to customer’s requirement
Worktop Height:900mm from the ground
Cabinet Style: Floor stand style or mobile under cabinet
Sash : Clear toughened glass/safe glass ,can hover at any height
Light source: Fluorescent light
Electronic power source: Multifunctional socket
Cup sink: PP material
Cock: gas / water valve
Optional: Auto sash closer/ water supply system/VAV system.
b. The advantages
1)the gas and water valves are positioned on the external vertical side airfoils and outlet nozzles are located on the side wall of the internal chamber.
2)the sash run in concealed tracking designed to facilitate smooth operation and is counter balanced using stainless steel cables, lead balancing weight and a twin ball race pulley arrangement. In the event of suspension wire failure it is not be possible for the sash to drop.
3)the bell-shape exhaust collar, designed with rectangular air entrance and round-shape air outlet.
4)low aerofoil, located on the frontal edge of the worktop under the sash, providing smooth air passage and preventing turbulence.
c. certificate
The BS EN14175-3 Standard Includes:
Inner plane SF6 tracer gas containment test
Outer plane SF6 tracer gas containment test
ROBUSTNESS CONTAINMENT test
AIR EXCHANGE EFFICIENCY test, PRESSURE DROP test
SASH test
d.Extensive product line:
Standard fume hood
High performance fume hood
Distillation and walk in fume hood
HF acid fume hood
Perchloric acid water wash fume hood
Radio isotope fume hood
ADA fume hood
Customizing is entirely acceptable as requirement

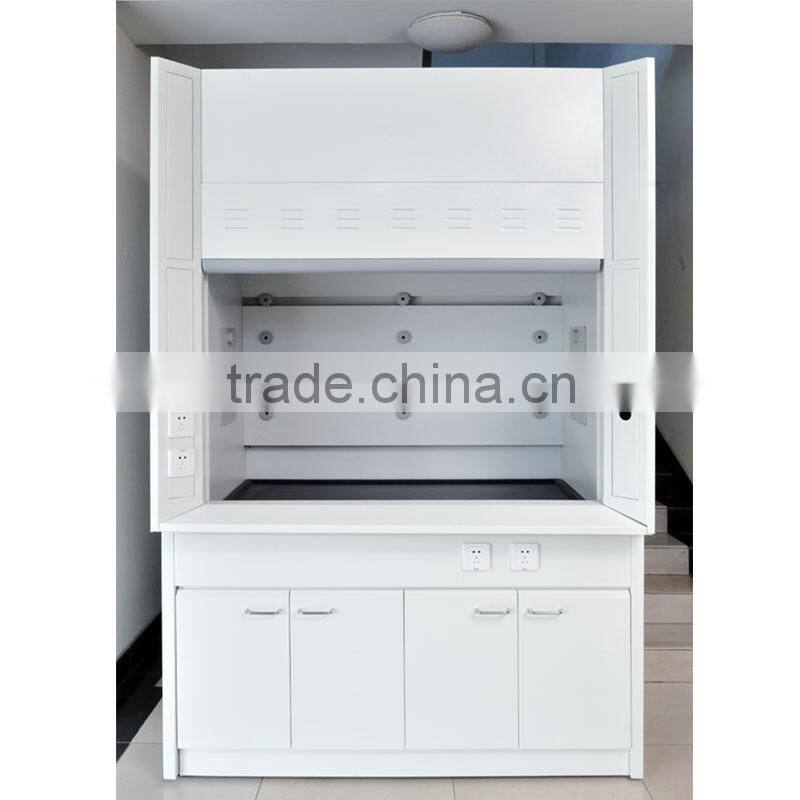

Steel lab fume cupboard Dimensions

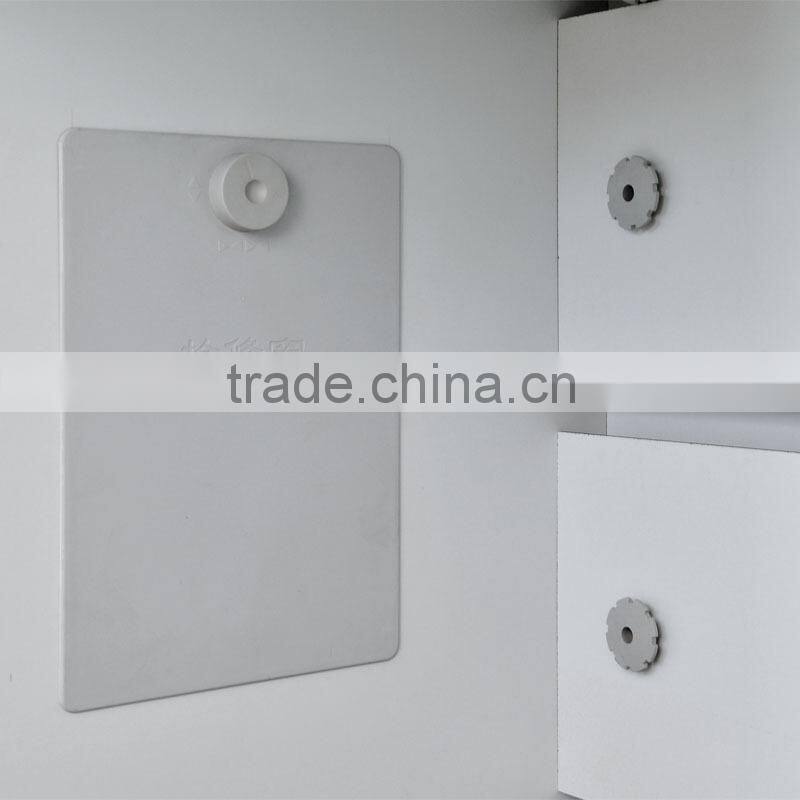

Maintenance window for easy and convenience hood maintenance in later

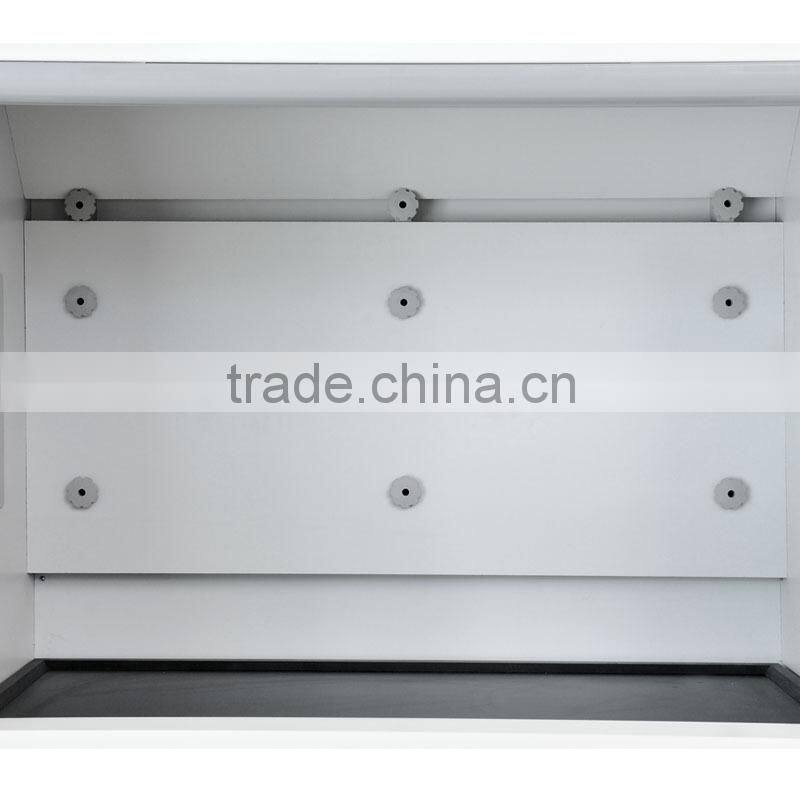

Three pieces of air baffles, Optional baffles material: Stainless steel

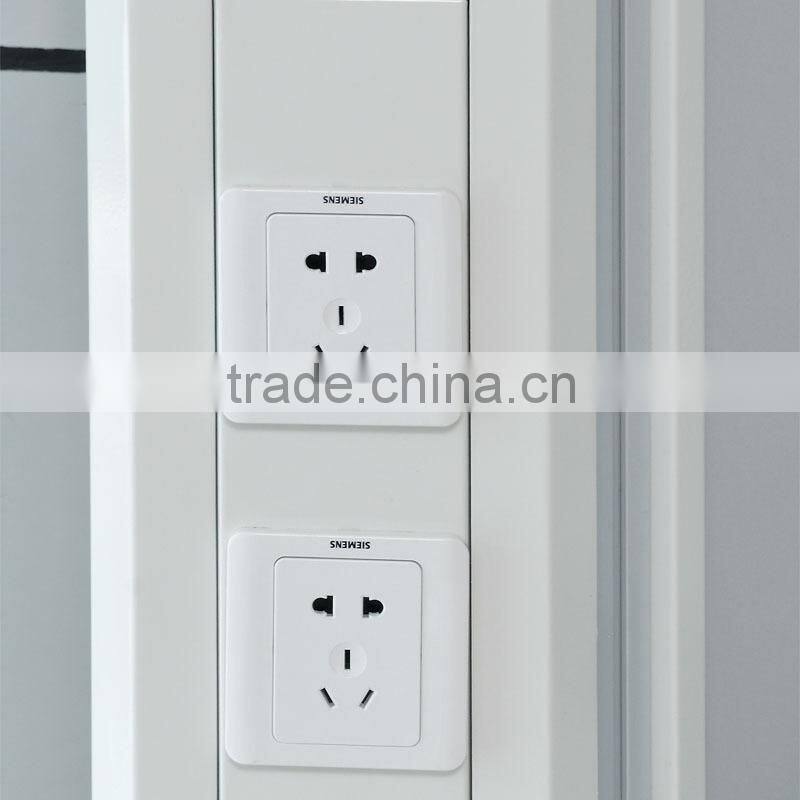

Brand socket ,Optional water-proof socket

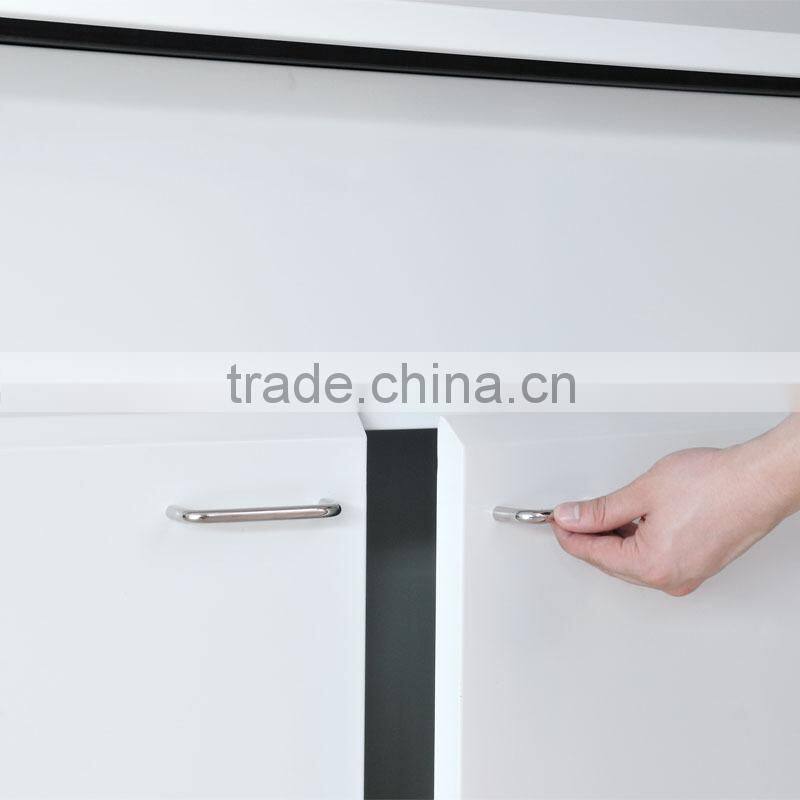

Stainless steel handle resisting the chemical corrosive, good touch feeling and appearance

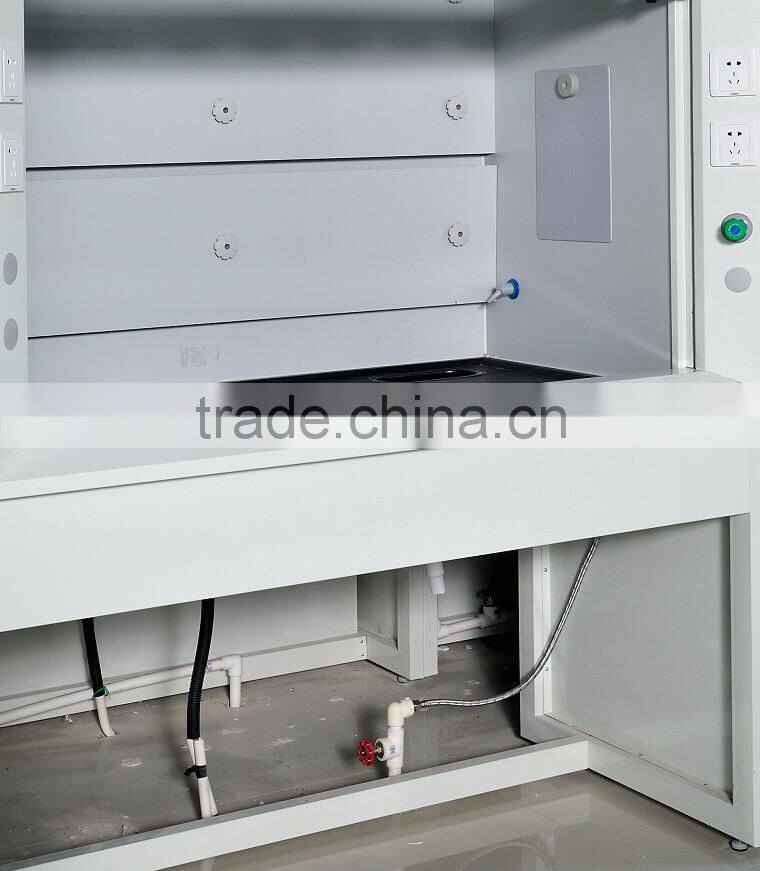

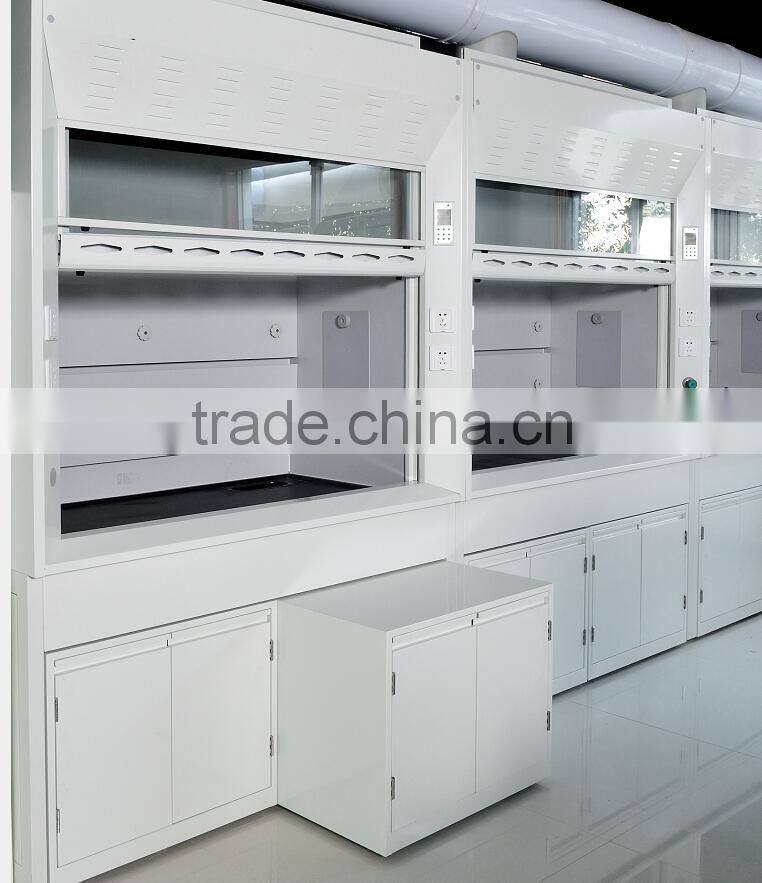

Mobility beneath cabinet
Convenience for clean up
Select accessory for your fume hood
Select suitable PP Fan for your fume hood
Item |
Name |
Model |
Dimension |
1 |
PP centrifugal Fan |
SHGG-TX-A1001 |
φ250 |
2 |
PP axial flow Fan |
SHGG-TX-A1002 |
φ250 |
φ200 | |||
φ160 | |||
|
|
|
|
Select suitable Air flow regulator for your fume hood
Name |
Model |
Dimension |
Air flow regulator |
SHGG-TX-A1004 |
φ250 |
φ250 | ||
φ200 | ||
φ160 | ||
|
Select suitable PP sink for your fume hood
1.Middle size sink Model No. SHGG-5102
|
Length(mm) |
Width(mm) |
Height(mm) |
Outer Diameter |
440 |
340 |
280 |
Inner Diameter |
385 |
285 |
275 |
2.Oval Cup Sink Model No. SHGG-5201
|
Length(mm) |
Width(mm) |
Height(mm) |
Outer Diameter |
260 |
140 |
220 |
Inner Diameter |
220 |
100 |
170 |
3.Square Cup Sink Model No. SHGG-5202
|
Length(mm) |
Width(mm) |
Height(mm) |
Outer Diameter |
180 |
115 |
180 |
Inner Diameter |
145 |
80 |
180 |
4.Round Cup Model No. SHGG-Sink 5203
|
Length(mm) |
Height(mm) |
Outer Diameter |
120 |
180 |
Inner Diameter |
82 |
180 |
5.Oval Cup Sink Model No. SHGG-5204
|
Length(mm) |
Width(mm) |
Height(mm) |
Outer Diameter |
190 |
140 |
220 |
Inner Diameter |
150 |
70 |
170 |
