Fixed With LCD Screen and Compartment ,SSC 805LS Ductless Filtering Chemical Storage Cabinet

Fixed With LCD Screen and Compartment ,SSC 805LS Ductless Filtering Chemical Storage Cabinet thumbnail-1
Fixed With LCD Screen and Compartment ,SSC 805LS Ductless Filtering Chemical Storage Cabinet photo-1
US$ 2,000 - 4,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Metal
Metal Type:
Iron
Size:
800*500*2150
Contact Supplier Request Quote Chat Now
Shanghai Guange Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Metal
Metal Type Iron
Size 800*500*2150
Place of Origin Shanghai, China
Brand Name Guange
Model Number SSC 805LS







Product Description

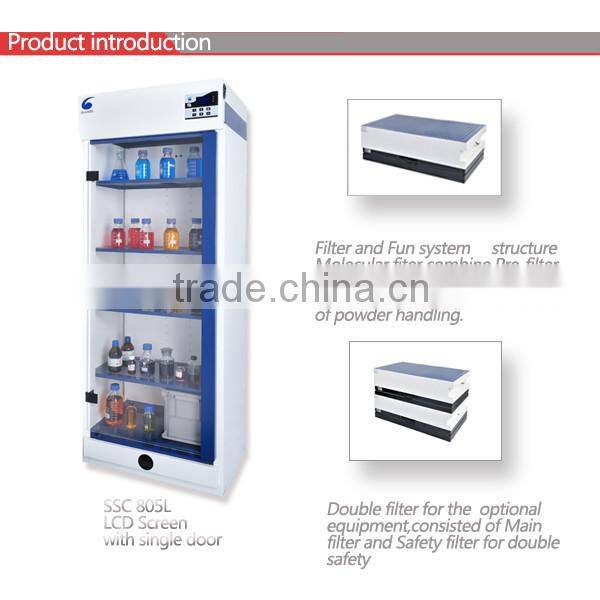

SSC 805LS ductless filtering storage cabinet

1.Ductless technicals:

active carbon filter systems with advanced technicals replaced of traditional ducted fume

hood providing more safety ,efficiency option for the customer .guange selected excellent ,effective and save



2.Optional filter :

active carbon filter/acid filter/HEPA 14 filter ...



3.Easy installment  :

easy work for the filter installment and maintenance



4.Save power :

(don't consume any expensive air conditioner wind!)

after filtration the clean air return back to the ambient environment.don’t have to add extra air -purify equipment.



5.Cost -efficiency :

don’t have to invest much cost in construction of pipe work,air purify equipment and civil

engineering work

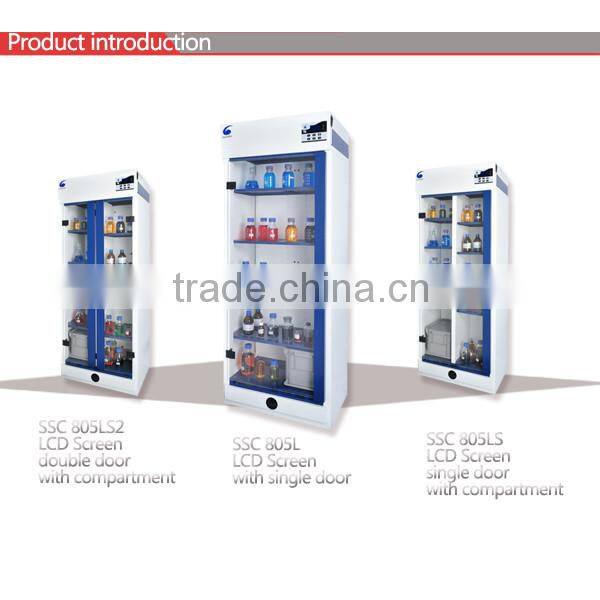

Model Explanation

for the SSC 805 LS vented filtering storage cabinet

SSC 805 LS (805:vented filtering storage cabinet Series)

                    ( L :LCD Screen )

                    (S:Compartment)

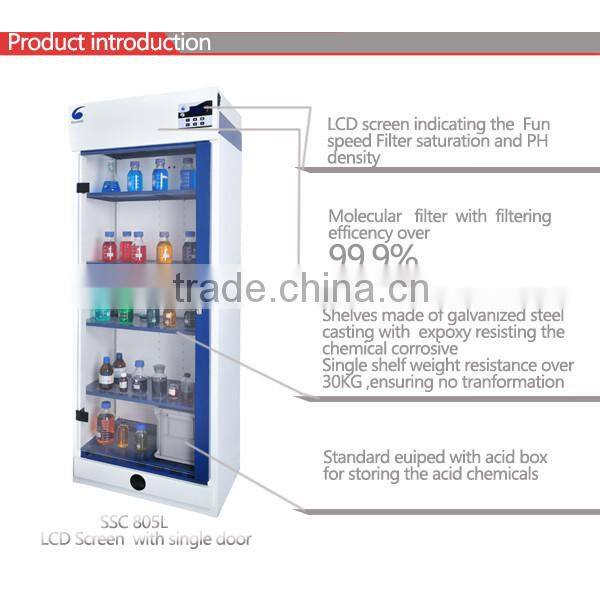

Standard Equipment

1.LCD Screen

2.Eight adjustable shelves for compartment storage cabinet

3.One Acid Box

4.Fan Failure alarm device

5.One Filter :Combination of Pre-filter and Main filter

6.Filter Saturation Sampling port(Manual Operation)

7.Retain tray

8.Door lock with key.

9.Compartment



Optional Equipment

1.Additional adjustable shelves

2.Additional filters

3.Acid box

4.Black door for protecting the chemical that is sensitive to the light







Technical Data





Model

SSC 805LS

Filter

1*SMFL

Fan

1

Air handling volume

220m3/h

Noise

Less than 48 dBA

Power

47W







Size(W*D*H)

800*510*2150

Storage capacity

0.64m3

Storage capacity of the bottles

160 bottles *500 ml

Water volume

10 liter mat

Single Shelf load -bearing

30KG

Voltage /frequency

AC100-240V/50-60Hz



Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinetFixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinetFixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet











Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet

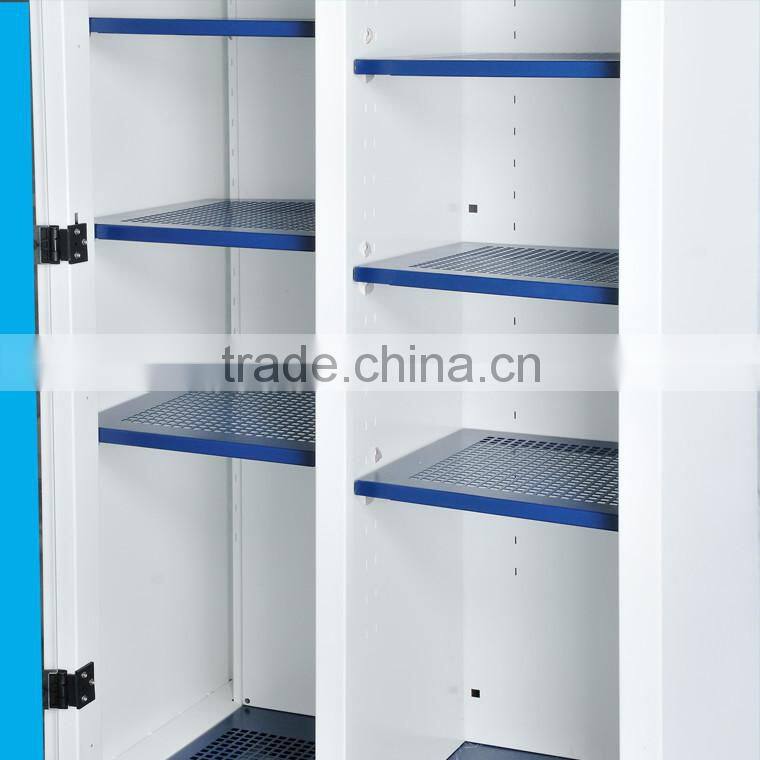

Adjustable shelves coating with epoxy powder,resisting the chemical corrosive.





Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet

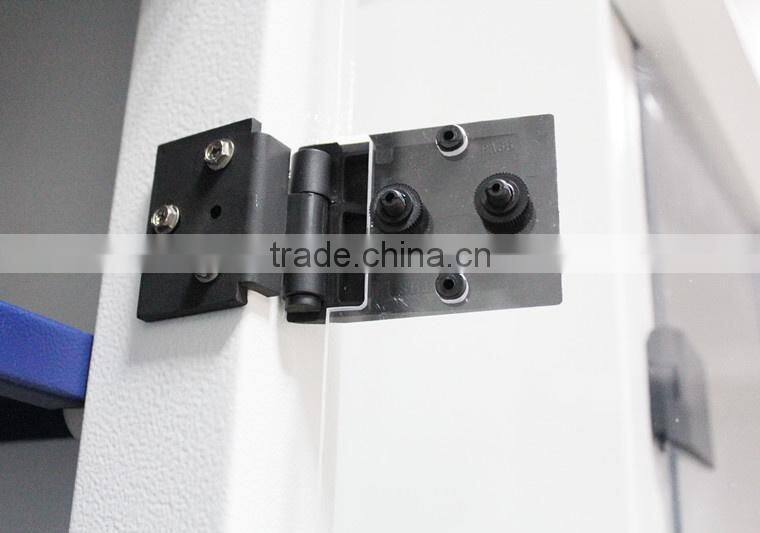

Durable hinge



Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet

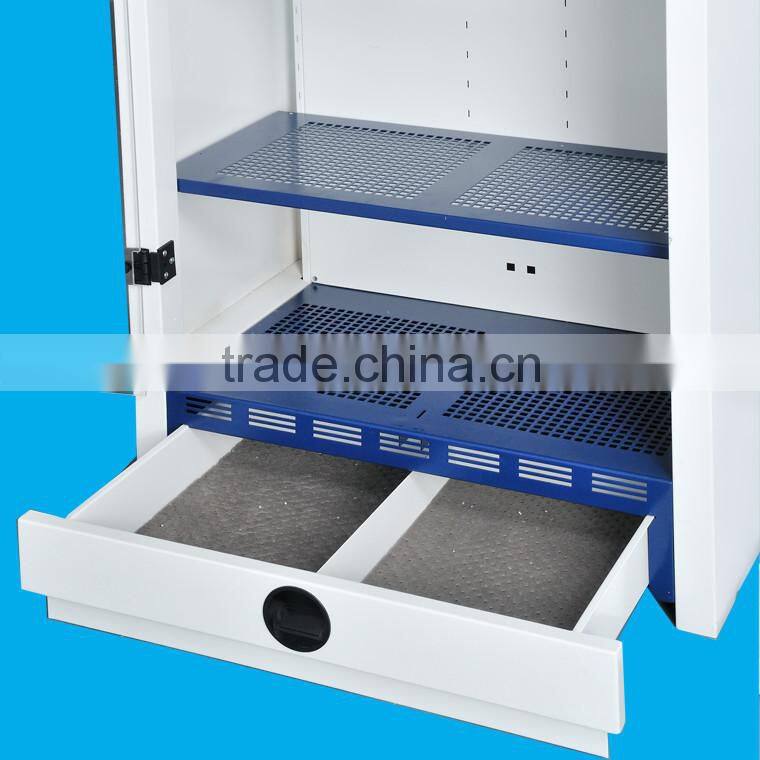

Spillage tray with absorb mat, catching hold of the chemical spillage











Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet

Our Services



 Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet

Fixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinetFixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinetFixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinetFixed with LCD Screen and Compartment ,SSC 805LS ductless filtering chemical storage cabinet




Company Information



Shanghai Guange currently own three mature production line ,which work on producing three major products as listed below:



Guange brand series ductless filtering products:

vented filtering storage cabinet

ductless filtration fume hood

biological safety cabinet

HEPA filter clean air enclosure.



Petrochemical industry sampler series

that divied into two aspects: tank-bottom sampler and closed loop sampler.

a.Tank-bottom samplers that are designed for sampling in different types of oil-tank stored petroleum materials, including sampler model of  F,S ,A,and P.

b.Closed loop samplers that are used for process sampling in petroleum manufacture device and  pipe lines.



Laboratory furniture

include of center table

the side table

reagent cabinets

duct fume hood

and so on
