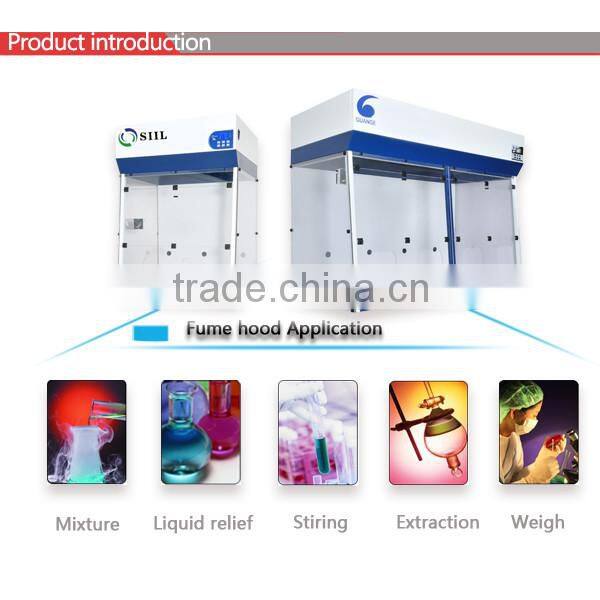

SFH 150 ductless laboratory fume cupboards
Ductless filtering fume hood is an kind of idea fume hood in laboratory with
compact structure and flexible usage ,especially suiting for the laboratory
environment that has limited space or a handful of toxic medium existing
The air contained Toxic Chemical fog ,vapors ,and particle would be retained
by filter systems becoming clean and returning back to the laboratory environment
again,which assure nonexistent harm medium leaving in ambient environment .
ductless design would be mobile and allowed for convenience transportation.
Transparent enclosure made of acrylic acid material make ambient clearly visible
and easily clean. The U.V lamp fixed in back panel would light up working shelf.
Operator shall be protected by an airflow with face velocity 0.5m/s from any harms
of toxic gas and particles by the ductless fume hood
Standard Equipment
1.LCD Screen
2.Fluorescent light
3.One Anemometer for inspecting the air face velocity
4.Fan Failure alarm device(Manual Operation)
5.Filter Saturation Sampling port
6.Three HEPA powder filters for toxic chemical powder handling.
Optional Equipment
1.Stationary Pedestal base for holding up the fume hood
(Size: L*W* H 1500×850×755-820mm)
2.Mobile Stationary Pedestal base for holding up the fume hood ,with caster
(Size: L*W* H 1500×850×870mm)
3.Additional filters(Molecular Filter or HEPA Filter)
4.Workbench
Physical bench (with the size :1584×810×25mm)
Epoxy resin bench (with the size1584×810×25mm)
Stainless bench( with the size:1584×810×25mm)
Ceramic bench( with the size:1584×810×25mm)
5.Opaque Organic glass panel
(Size W *H :400mm×1680mm )
6.HEPA filter shall be fixed as required by customer for powder handling with the filtering efficiency over 99.997%
7.Additional Fluorescent.

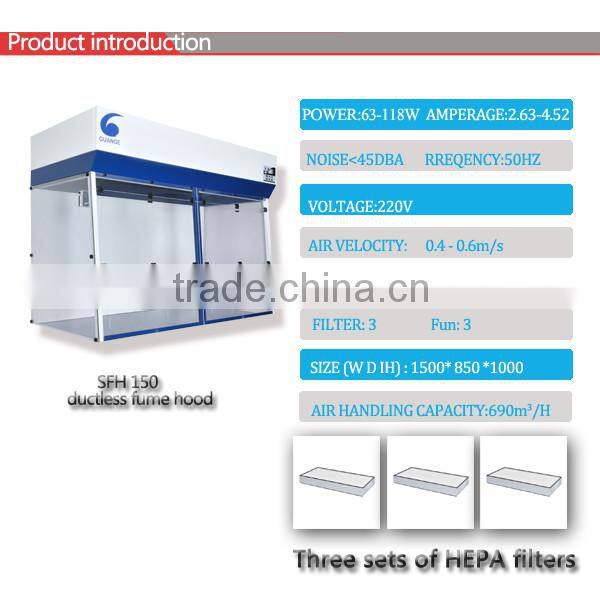

Model |
SFH150 |
SFH150E |
|
External dimensions(mm) (W ×D ×H) |
1600×850×1000 |
1600×850×1000 |
Number of the filter columns |
3 |
2 |
Number of the Fans |
3 |
2 |
Maximum height |
1000 |
1000 |
Air handling capacity (m3/h) |
690 |
460 |
Model |
U/F |
Power |
Amperage |
Air velocity |
Noise |
SFH150 |
220V/50Hz |
63-118W |
2.63-4.52A |
0.50±0.02m/s |
<50dBA |
SFH150E |
220V/50Hz |
52-86W |
2.15-3.45A |
0.50±0.02m/s |
<48dBA |
LCD Screen integrates multifunctions,including:Fun switch,Lamp switch,Saturation manual detecting
port.
Air face velocity monitor,inspecting the air velocity (air velocity should between 0.2m/s to 0.6m/s)
The fume hood depth over 750mm,which makes it easy to move large size equipment inside
Shanghai Guange currently own three mature production line ,which work on producing three major products as listed below:
Guange brand series ductless filtering products:
vented filtering storage cabinet
ductless filtration fume hood
biological safety cabinet
HEPA filter clean air enclosure.
Petrochemical industry sampler series
that divied into two aspects: tank-bottom sampler and closed loop sampler.
a.Tank-bottom samplers that are designed for sampling in different types of oil-tank stored petroleum materials, including sampler model of F,S ,A,and P.
b.Closed loop samplers that are used for process sampling in petroleum manufacture device and pipe lines.
Laboratory furniture
include of center table
the side table
reagent cabinets
duct fume hood
and so on
