Material Metal
Metal Type Stainless Steel
Size 1300*850*1365
Place of Origin Shanghai, China
Brand Name Guane
Model Number SFH 130 fume hood

Product Description

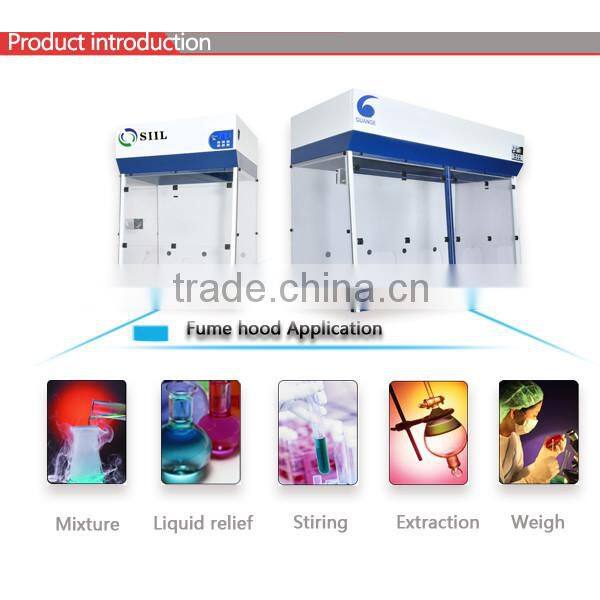

SFH 130 SERIES Ductless filtering fume



Ductless filtering fume hood is an kind of idea fume hood in laboratory with
compact structure and flexible usage ,especially suiting for the laboratory
environment  that has limited space or a handful of toxic medium existing

The air contained Toxic Chemical fog ,vapors ,and particle would be retained
by filter systems becoming clean and returning back to the laboratory environment
again,which assure nonexistent harm medium leaving in ambient environment .
ductless design would be mobile and allowed for convenience transportation.

Transparent enclosure Ductless filtering fume  made of acrylic acid material make

ambient clearly visible and easily clean. The U.V lamp fixed in back panel would light

up working shelf.

Operator of Ductless filtering fume  shall be protected by an airflow with face velocity

0.5m/s from any  harms of toxic gas and particles.





Standard Equipment

1.LCD Screen

2.Fluorescent light

3.One Anemometer for inspecting the air face velocity

4.Fan Failure alarm device(Manual Operation)

5.One Filter :Combination of Pre-filter and Main filter

6.Filter Saturation Sampling port



Optional Equipment

1.Stationary Pedestal base for holding up the fume hood

(Size: L*W* H 1300×850×755-820mm)

2.Mobile Stationary Pedestal base for holding up the fume hood ,with caster

(Size: L*W* H 1300×850×870mm)

3.Additional filters(Molecular Filter or HEPA Filter)

4.Workbench

Physical bench (with the size :1284×810×25mm)

Epoxy resin bench (with the size:1284×810×25mm)

Stainless bench( with the size:1284×810×25mm)

Ceramic bench( with the size:1284×810×25mm)

5.Opaque Organic glass panel

(Size  W *H :400mm×1680mm )




Technical Date



Model

SFH130

SFH130E

External dimensions(mm)

(W ×D ×H)

1300×850×1000

1300×850×1000

Number of the filter columns

3

1

Number of the Fans

3

1

Maximum height

1000

1000

Air handling capacity (m3/h)

690

230





Model

U/F

Power

Amperage

Air velocity

Noise

SFH130

220V/50Hz

63-118W

2.63-4.52A

0.50±0.02m/s

<50dBA

SFH130E

220V/50Hz

27-45W

1.12-1.71A

0.50±0.02m/s

<45dBA

80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood





 80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood



80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood



80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood

Air face velocity monitor,inspecting the air velocity (air velocity should between 0.2m/s to 0.6m/s)





80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood

LCD Screen integrates multifunctions,including:Fun switch,Lamp switch,Saturation manual detecting port





80% energy saving ,with heap filter or carbon filter,SFH 130 Ductless fume hood

Ductless design ,giving it Good mobility and would be fixed anywhere in lab.







The fume hood depth over 750mm,which makes it easy to move large size equipment inside.
