Dahua standalone fingerprint reader access control
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~

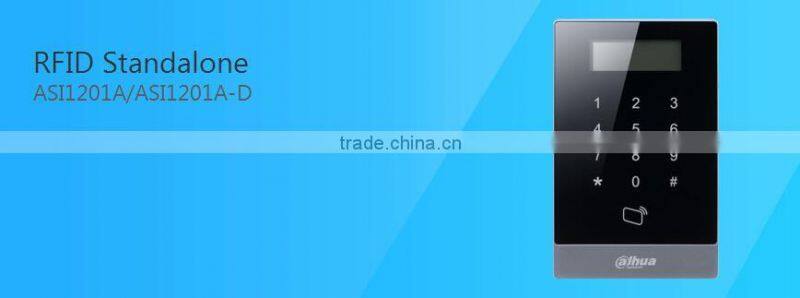

RFID Standalone
ASI1201A/ASI1201A-D
Features:
>Touch keyboard and LCD display
>Support 30,000 valid cards & 150,000 records
>Support multiple cards(default IC card) (“-D” means ID EM card)
>Support card, password and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-card open
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
>Surface mounted installation
Specification:
| Model | ASI1201A/ASI1201A-D |
| System | |
| Main Processor | 32 Bit |
| Memory | 16M |
| Input/Output Ports | |
| Input | Door sensor x 1, Exit button x 1, Alarm input x 2 |
| Output | Relay x 3 (Door lock, Bell, Alarm) |
| Reader | Reader x 1 |
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
| Read Range | 3-8cm (max.) |
| Capacity | |
| Cardholders/Events | 30,000/150,000 |
| Function | |
| ID Setting | Using friendly CMS or command by keypad |
| User Management | General, VIP, Guest, Patrol, Black list, Force |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Schedule Setting | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
| Interface | |
| To PC | RJ45(10/100M)/RS485 |
| To Reader | Wiegand/ RS485 |
| General | |
| RTC | Yes |
| Beep Tone | Buzzer |
| LCD Display | Sensitive touch keypad with blue backlight |
| Ingress protection | IP55 |
| Power Supply | 9-15DC/130mA |
| Working Environment | -30℃-+60℃ |
| Working Humidity | ≤95% |
| Dimension(W×D×H) | 150mm*96mm *16mm |
| Weight | 0.35Kg |
Software:
Showroom:
Welcome to visit our company
1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
