Flat Steel Bar AISI H13 / DIN 1.2344 / JIS SKD61 / GB 4Cr5MoSiV1
- shenzhen
- T/T
You May Like
Product Details
| Grade | h13 | Standard | AISI, ASTM, DIN, GB, JIS | |
| Thickness | 12~400mm | Width | 205~800mm | |
| Length | 2000~5800mm | Place of Origin | Guangdong, China | |
| Brand Name | Circle four | Model Number | h13 | |
| Application | mould steel | Technique | Hot Rolled | |
| Special Use | Mold Steel |
Product Description
Specifications
flat steel bar AISI H13 / DIN 1.2344 / JIS SKD61 / GB 4Cr5MoSiV1we offer flat steel bar 1.2344: good high temperature strength

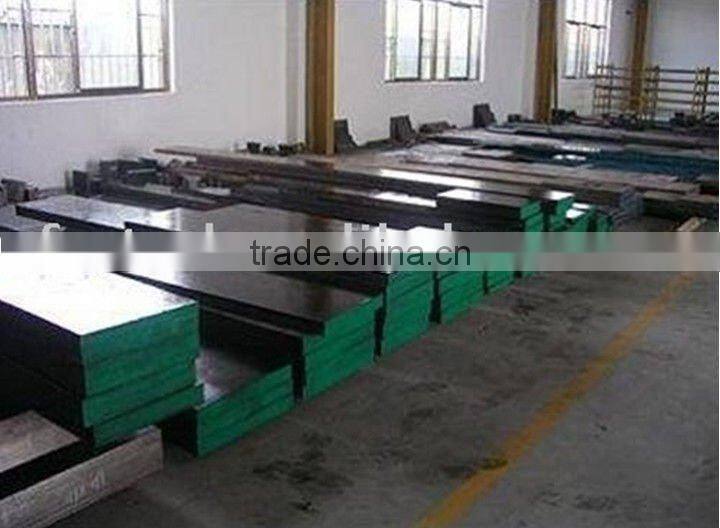

flat steel bar AISI H13 / DIN 1.2344 / JIS SKD61 / GB 4Cr5MoSiV1
Round size: dia 20-300mm, length 1-6m.
Factory state: soft annealing to HB 185.
Chemical composition(for reference only):
C | Si | Cr | Mn | Mo | V |
0.38 | 1.0 | 5.3 | 0.4 | 1.3 | 0.9 |
Characteristic application:
Hot die steel, the performance of high-toughness and heat resistance are good. It is suitable for the metal compression casting, the extrusion mould, duplicate mould, stamping mould and the plastic mould of PA, POM, PS, PE, and EP.
Hot-work steel with good high temperature strength and high wear resistance.
Die forging dies, die inserts.
Shrink rings.
Hot shear blades, trimming tools.
Hot bending tools.
Die casting dies.
Light metals processing.
Tools for extruding light alloys, eg. liners dies and mandrels.
