Customized volume walk in chamber
walk in chamber
1.Test Chamber Factory
2.Customized Size
3.OEM service
4.Fast delivery
Walk in chamber specific Sheet:
| Model | THR-volume (low-temperature options : A ~ F) |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 80℃ (80℃ ~150℃ is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
| Analytic Accuracy/Distribution Uniformity of Temperature& Humidity | 0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity |
±0.5℃; ±2.5% R.H. |
| Temperature Rising /Falling speed Rate |
Temperature rising approx. 0.1~3.0℃/min temperature falling approx. 0.1~1.0℃/min;( The Falling Speed Rate Min.1.0℃/min is a special optional condition) |
| Cooling System | Water cooling |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bitzer Brand |
| Power | AC 380 V,50/60HZ ,3ph 5 Lines |
Walk in chamber application:
Walk in chamber is used to test various types of materials for their
tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test
samples, such as electronic products, electric appliance, and products from
communication, instrument, automobile, plastic, metal, food, chemical,
building materials, medical and aerospace industries.
Walk in chamber features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series(R232,R404)6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement a relocation, with strong positioning screws.
Our other products:
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc

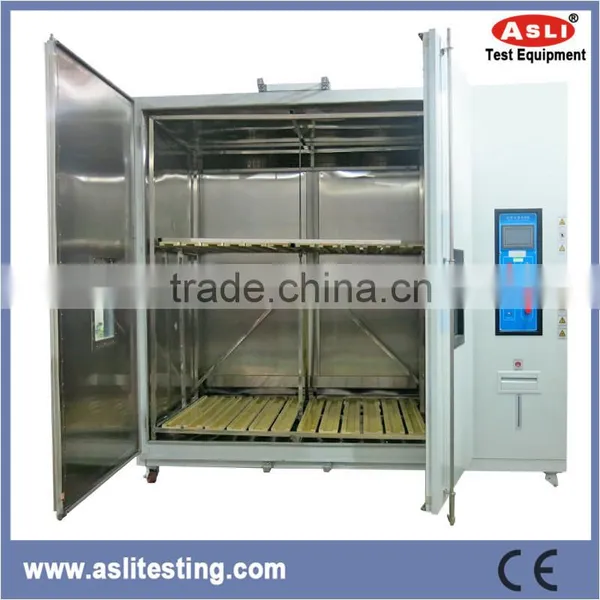

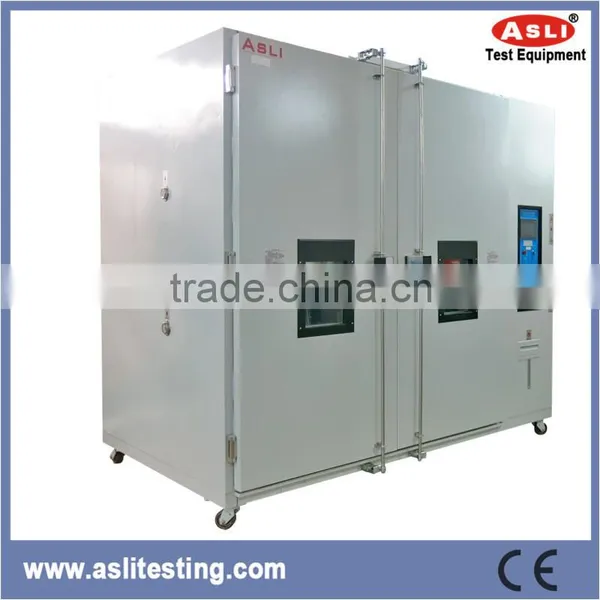

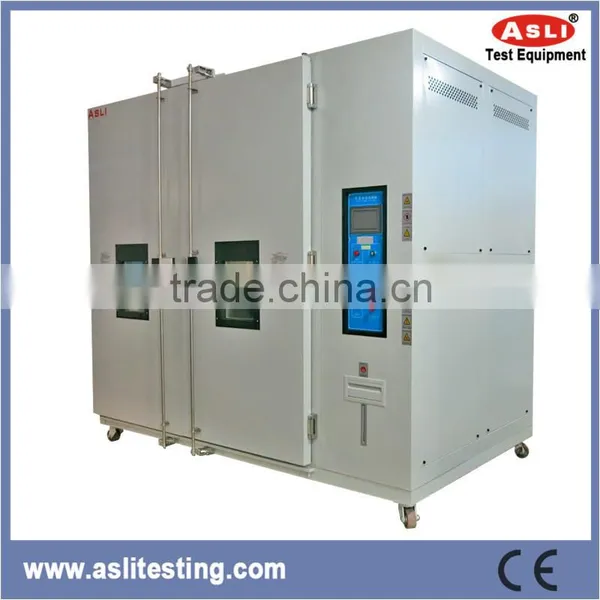

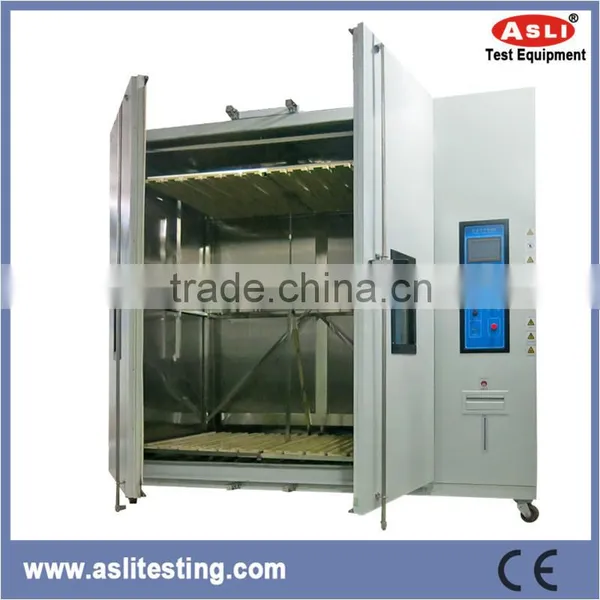

Walk in chamber pictures and information about our Company:
