Climatic Testing Laboratory Equipments

Climatic testing laboratory equipments

 Laboratory test equipments :

Environmental simulation test chambers

Climatic testing laboratory equipments

High low temeprature test equipment

High temperature laboratory test chamber

Low temeprature laboratory test chamber

Vaccum oven

Walk in stability test chamber

Walk in aging oven

Mechanical test equipments

Laboratory vibration test system

Electro dynamic vibrationt shaker

Mechanical shock test machine

Package drop test machine

1. Climatic laboratory test equipments Application:

Environmental laboratory test equipments  is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance,and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

2. Climatic laboratory test equipments   Accessories:

Inner door with operation hole (optional)

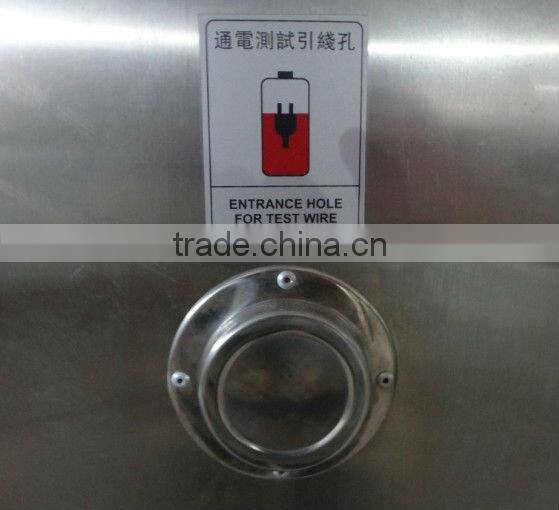

50mm or100mm   Entrance hole for test wire, Dia.50mm or 100mm

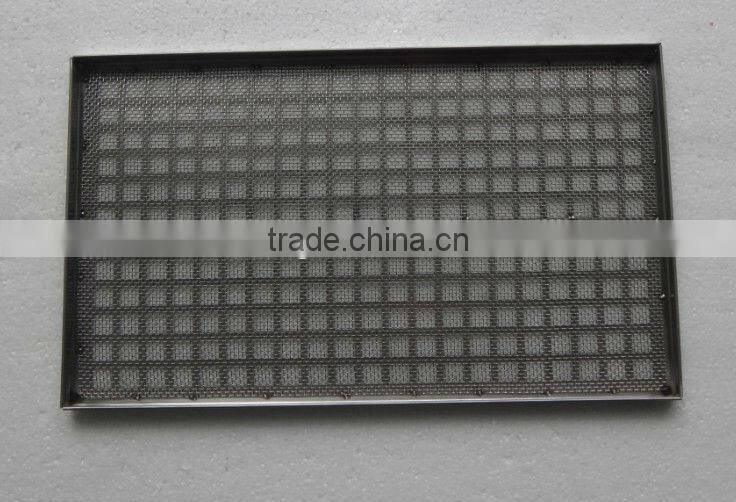

Sample Shelves, two layers

RS232 or RS485 communication Interface

3. Climatic laboratory test equipments  Features:

1.Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.

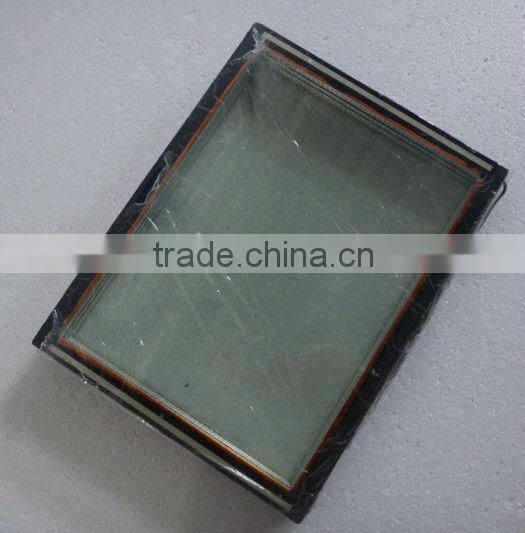

2.Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from

condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.

3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5.The French Tecumseh brand is used for the circulation system of the compressor, capable of removing thelubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R23,R404A)

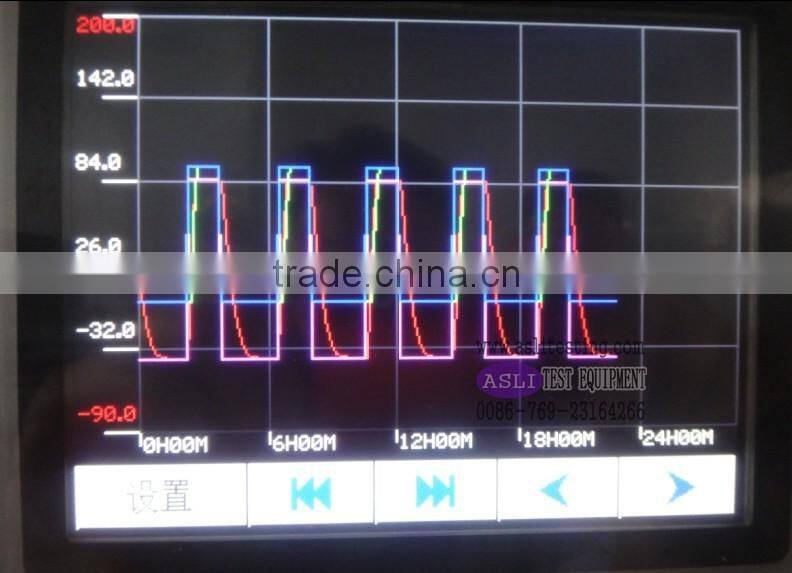

6.Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.

7.The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.

4. Climatic laboratory test equipments   Technical Parameters:

5. Warranty: one year free warranty for whole set machine,lifelong time maintainance.

6. After-sale service: feedback within 2 hours after get the call.

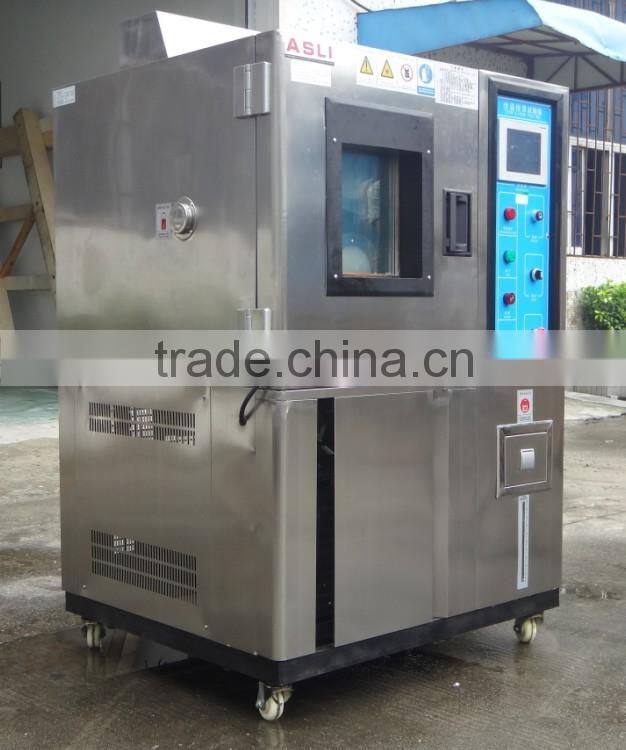

7. More Pictures for Climatic laboratory test equipments :

ASLi advantages for  Climatic laboratory test equipments :

Warranty: 1 year warranty

After sale service:  Feedback within 8 Hours after get the call

Certification:  CE certification & Third party callibration report
