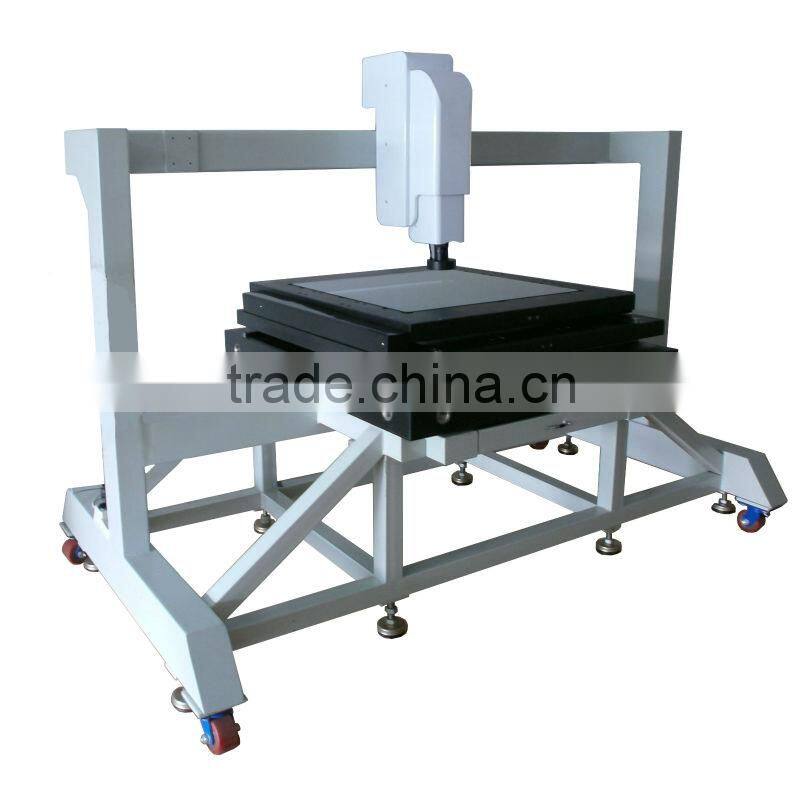

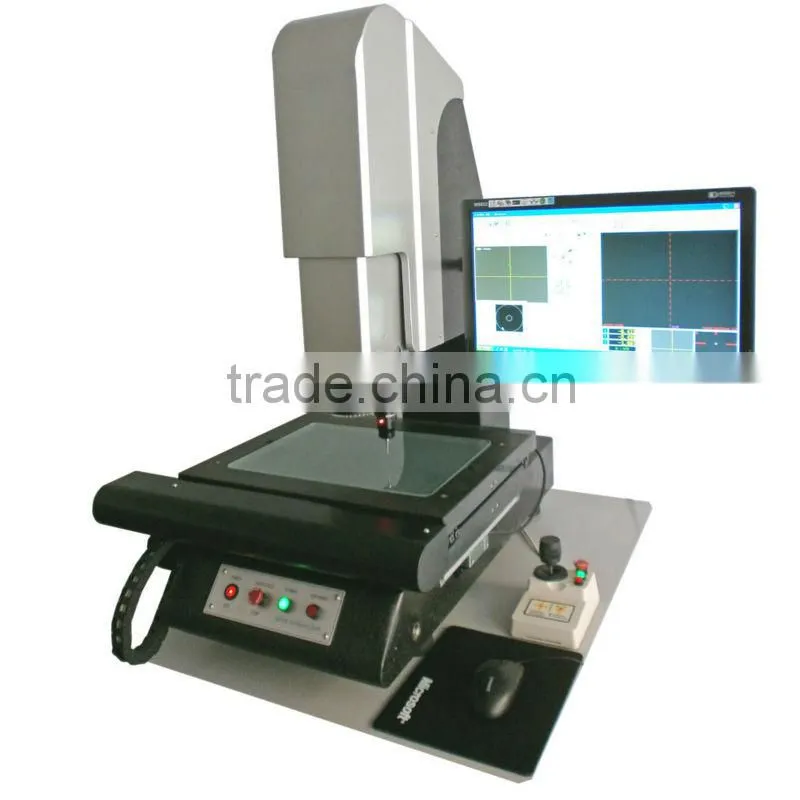

Optical Measuring Machine

Name: Optical Measuring Machine
Brand: Asli
SKU: 110181237
Availability: InStock

US$ 4,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Asli

Model Number:

SOV

Dongguan ASLi Test Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Asli

Model Number SOV

Power Electronic

Usage Auto Testing Machine

Optical Measuring Machine

Optical Measuring Machine Application:

Digital video inspection systems is designed to do three dimensional work piece on the slope, round ,ditch,

columns,ball,dimension,bland holes as well as the geometricalterms such as the distance between the

elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances,

connector, machine fittings, precision fixture, plastic, hardware, circumjacent fields of computer and

so on and other industries.

Optical Measuring Machine Features:

1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage &

output the graphics.

2. Optional print machine, different measurement and scanning system are available .

3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point

positioning function

4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.

Optical Measuring Machine Technical Parameters:

Model			VMS-1510	VMS-2010	VMS-2515	VMS-320	VMS-4030
Work Table	Metal Table Size(mm)		354x228	404x228	450x280	500x330	606x466
	Glass Table Size (mm)		210x160	260x160	306x196	350x280	450x350
	Moving Stroke (mm)		150x100	200x100	250x150	300x200	400x300
	Weight (Kg)		100	110	120	140	240
Dimension WxHxD (mm)			540x850x560		760x900x600		970x940x670
Image System		Color 1/3’'CCD Video Camera Zoom Lenses: 0.7~4.5×
		Magnification of Video : 40~255×
		Object Field: 7~1.1mm, LEDsurface lamp plate & LED incident illuminant, light intensity adjustable
