Wired / Wireless Network Video Server

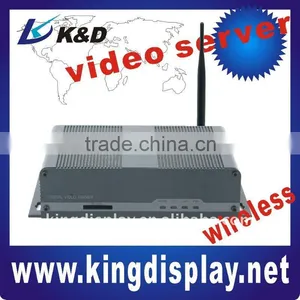

Wired / Wireless Network Video Server thumbnail-1

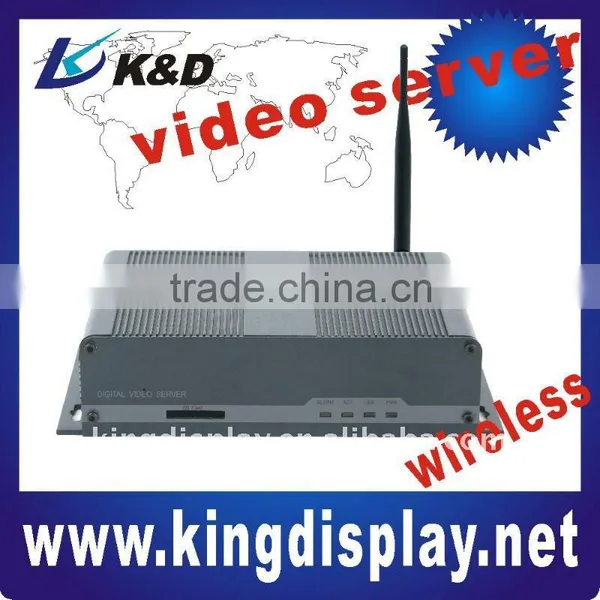

Wired / Wireless Network Video Server photo-1
US$ 50 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
K&D
Model Number:
KD-DS201DX
Contact Supplier Request Quote Chat Now
Shenzhen Guowei Security Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name K&D
Model Number KD-DS201DX
Type Other, network video server
Style Box Camera
Sensor Other, NO
Technology Other, NVS
Special Features Other, Support mobile phone monitor

Specifications

H.264/ MJPEG option
Wired / Wireless Network Video Server

Model

KD-DS201DX, KD-DS202DX, KD-DS204CX, KD-DS204DX;KD-DS201DX-W,KD-DS202DX-W,KD-DS204CX-W,KD-DS204DX-W

Video Input

1/2/4 channel composite video, PAL or NTSC

BNC interface,1.0Vp-p,impedance 75Ohms

Video compression

H.264 Main Profile @Level 3, Motion JPEG

Dual-Streaming

H.264/ MJPEG option

Video Definition

PAL: 352*288 (CIF), 704*288 (2CIF), 704*576 (D1);
NTSC: 352*240 (CIF), 704*240 (2CIF), 704*480 (D1)

VVideo Parameters

Brightness, Hue, Contrast, Saturation, Image quality.

Streaming Format

Optional Video Streaming or Audio &Video composite Streaming

Video Frame Rate

PAL: 1-25 frames/second

NTSC:1-30 frames/second

Video Compression

Bit rate

32Kbps~16Mbps

Video Output

1 compound video, PAL or NTSC; BNC, level: 1.0Vp-p, impedance: 75Ω,

Audio Compression

G.726, G711, ADPCM

Audio Input

1/2/4 channel, RCA port, liner input, Impedance:1KOhms

Audio Output

1channel,RCA port, linear output

Audio

talk-back input

1 channel ,MIC port

Overlaid Caption

Channel, Date, Bit rate. position adjustable

Communication Interface

1 10M/100M self-adapting Ethernet port, RS485 port, RS232 port

Built-in some high-speed protocols and decoding protocols.

Support public protocols.

Support CDMA, GPRS mobile network.

supports 802.11b/g protocol, 2.4GHz, maximum wireless distance can be 100 meters, Supports WEP,WPA,WPA2(support wireless model)

Supports smart mobile monitor that is based on  Windows Mobile, Symbian and  iPhone platforms

Storage interface

Support SD card storage and snapshot, SD2.0 standard. (Max 32G SD card), Support FTP server.

Alarm Input

4 channel on/off input, supporting NO (normally open) or NC (normally close) sense.

Alarm Output

4 channel on/off output,120VAC 1A/24VDC 1A

Alarm Message

Sending alarm message by Email.

Input Power Supply

DC 12V,1A

Maximum Power

Less than 7W

Operating Temperature

-10 ~ +55°C

Operating Humidity

RH90%MAX

Dimension

20cm(L) * 13.7cm(W)*4.8cm(H)

Net weight

0.76kg
