Help CenterAutomatic CMM Measuring Machine
Related Products
-
Coordinate Measuring Machine (CMM) in LABUS$ 4,000 - 20,000MOQ: 1 Set -
Video CMM Tool Measurement VMS-4030US$ 4,000 - 20,000MOQ: 1 Set
-
CMM 3D Coordinate Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Visual Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
CCD Camera Video Measurment MachineUS$ 4,000 - 20,000MOQ: 1 Set
Automatic CMM Measuring Machine Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
|
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
|
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
|||
CCD |
Color, 1/3 inch, 8000000 PX |
|||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
|
Bench Dimensions(mm) |
600x450 |
500x350 |
350x270 |
|
Load of Bench(Kg) |
30 |
25 |
30 |
|
Optional Configuration |
UK Probe |
|||
Weight (Kg) |
350 |
180 |
100 |
|
Automatic CMM Measuring Machine Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuring software 2D,can manage &
output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multipoint positioning function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
Automatic CMM Measuring Machine Application:
Automatic CMM measuring machine is designed to do three dimensional work piece on the slope, round ,
ditch,columns,ball,dimension,bland holes as well as the geometricalterms such as the distance between
the elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances,
connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on
and other industries.

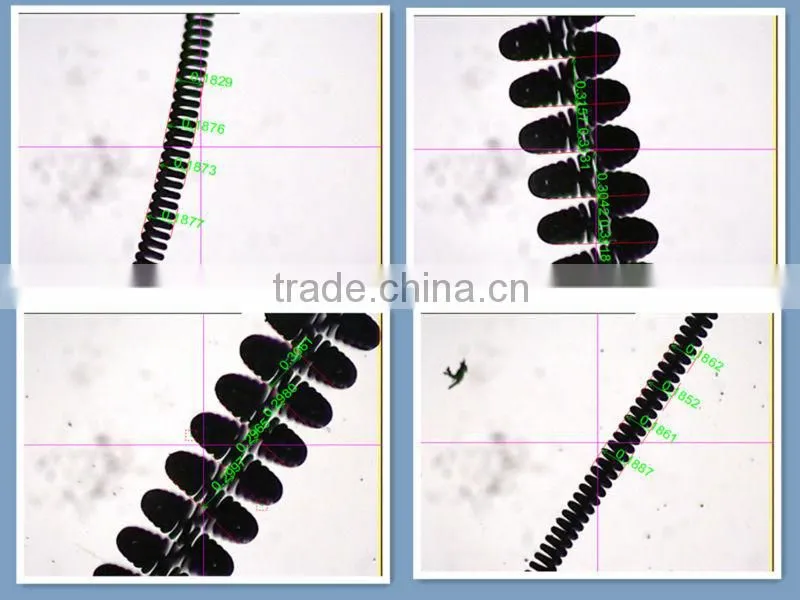

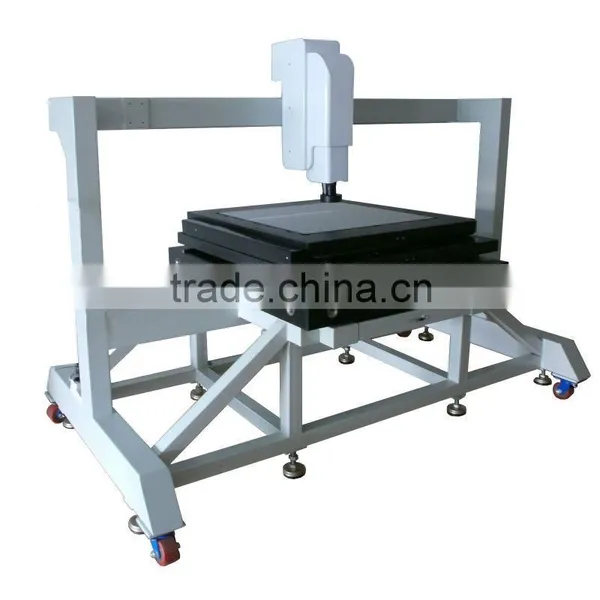

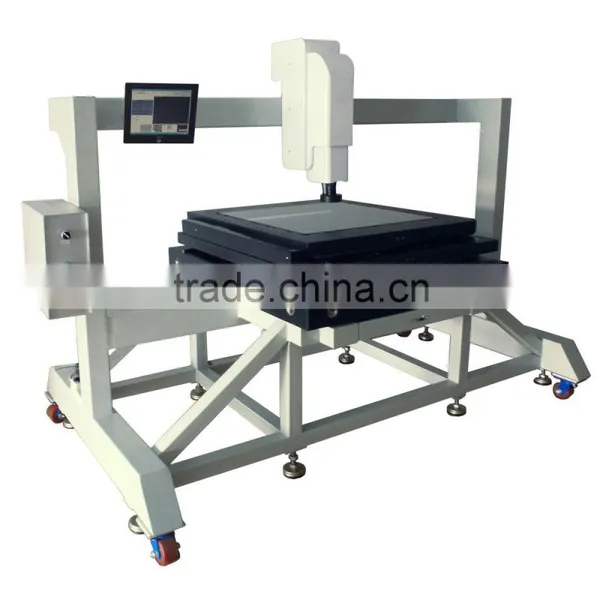

Below Pictures of Automatic CMM Measuring Machine for your reference:
...
