Air Cooled Electro Dynamic Vibration Shaker Test System
Product Details
Place of Origin | Guangdong, China | Brand Name | ASLi | |
Model Number | ES | Power | Electronic | |
Usage | Vibration Testing Machine |
Product Description
Air Cooled Electro Dynamic Vibration Shaker Test System
1.Triaxial vibration test machine /Application:
Air Cooled Electro Dynamic Vibration Shaker Test System Is widely used in national defense, weapons, aviation, aerospace, communications,electronics, electrical appliances, communications, home appliances and other fields.
2. High frequency electric vibrator /Features :
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity
3. Technical Parameters :
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated Replacement (p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
...... |
4. Warranty: one year free warranty ,lifelong maintenance.
5. After-sale service: Feedback within 2 hours after get call.

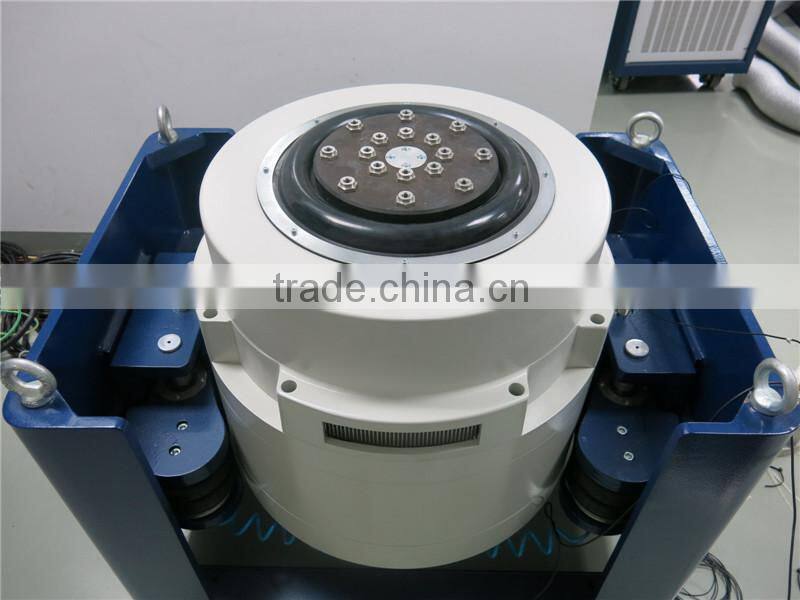

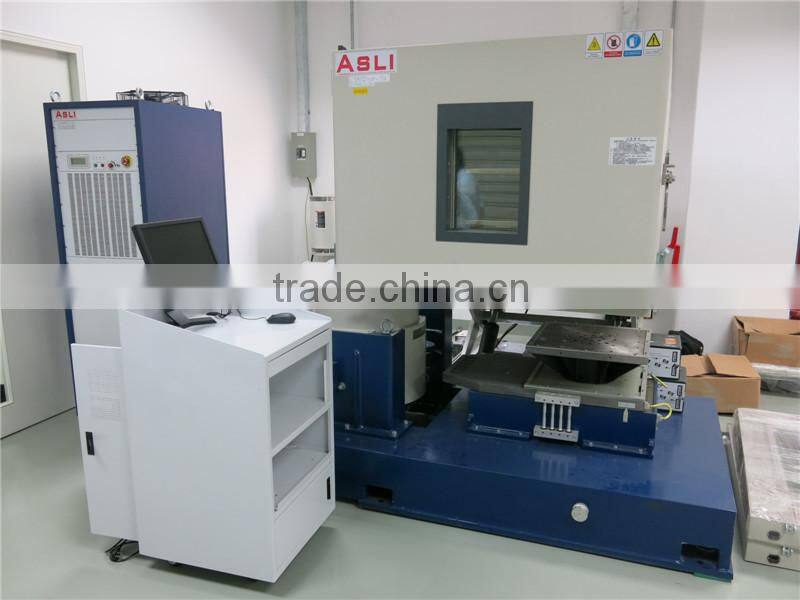

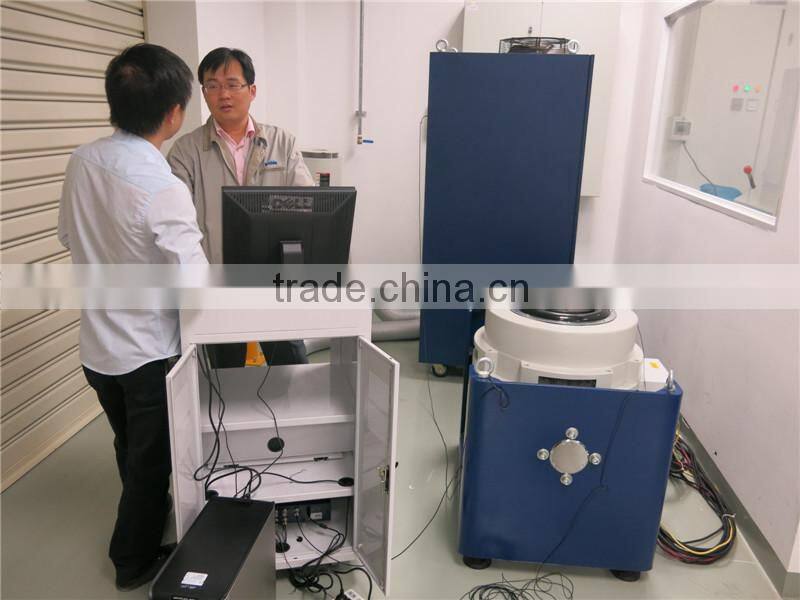

6. More picture:
