gwsecu NVR & IPC Kit With Motion detection 4ch nvr kit
To Know,To Trust,your reliable security partner!
SHENZHEN GUOWEI SECURITY CO.LTD
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~

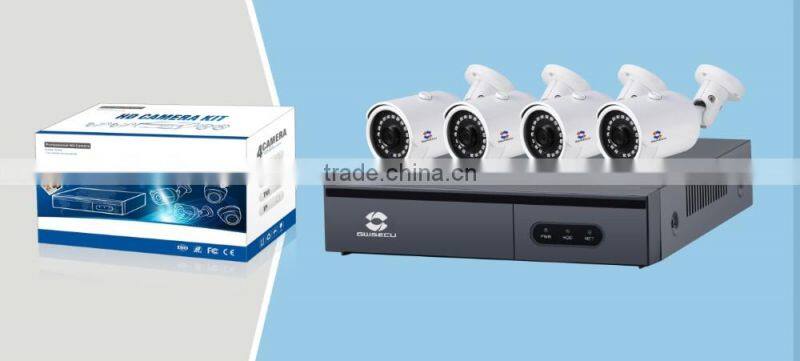

Package Includes:
4 xKDT-HW10RC72-EP 1.3mp outdoor IP Camera
1x4ch H.264 PoE NVR
1×RJ45 Cable 1m;
1×NVR Power Supply;
1×Mouse.
| Camera Specification | KDT-HW10RC72-EP |
| General | |
| Main Processor | Ti DaVinci Series DSP |
| Resource | Simultaneous remote monitoring local recording and remote control |
| User Interface | WEB CMS NVR APP |
| Camera | |
| Image Sensor | 1/3" 1.3Megapixel Progressive Scan Aptina CMOS Sensor |
| Effective Pixels | 1280(H)×960(V) |
| Electronic Shutter | 1/5s to 1/50000s |
| Mini. Illumination | Color:0.1Lux/F1.2; B/W:0.005Lux/F1.2 0Lux/F1.2(IR on) |
| Signal Noise Ratio | >50dB |
| Day/Night Mode | Auto dual IR-Cut filter |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR Dynamic Range | DWDR |
| Lens | 3.6mm Fixed Lend (6mm/8mm optional M12 mount) |
| Max IR Distance | 30m |
| Video | |
| Video Compression | H.264/MJPEG Optional |
| H.264 Encode Type | H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
| Video Bit Rate | Main Stream:200Kbps~8Mbps |
| Sub Stream: 100Kbps~6Mbps | |
| Image Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) |
| Encoding Speed | Main Stream: 1.3M/720P/D1(1~25fps/30fps) |
| Extra Stream: D1/CIF(1~25fps/30fps) | |
| Video Format | PAL/NTSC |
| Network | |
| Ethernet | RJ-45 (10/100base-T) |
| Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
| Common Features | One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
| ONVIF | ONVIF Ver.2.4 |
| Max User Access | 10 users |
| Smart phone | Iphone Ipad Android |
| Remote Operation | Monitor System setting Log information Maintenance & Upgrade |
| Auxiliary Interface | |
| Reset Input | One Reset Button(Hold on 3 seconds at least) |
| Environmental | |
| Power Supply | DC12V |
| Protection Level | IP66 |
| Dimensions(mm) | 66.7×62.0×173 |
| PoE | IEEE802.3af |
NVR Specification |
KD-Z3404NE-P |
|
Special function | ||
System | ||
Control Mode |
USB mouseNetwork Remote |
|
Video &Audio | ||
IP Camera Input |
4ch.(48Mbps) |
|
Incoming Bandwidth |
48Mbps |
|
Outgoing bandwidth |
48Mbps |
|
Support Protocol |
Support Protocol ONVIF |
|
Standard |
PAL / NTSC |
|
Output |
1 HDMI 1 VGA 1CVBS BNC(1.0Vp-p75ohms) 4MP/3MP/1920×1080 1280×1024 1280×720 1024×768 |
|
Resolution |
4MP/3MP/1920×10801280×720 |
|
Privacy Masking |
Four zones for privacy masking for each channel |
|
Recording | ||
| Video Compression | H.264 | |
Resolution |
Main stream: 1920*2048P max. Auxiliary stream: D1 max. |
|
Image Encoding |
Adjustable encoding quality variable code stream/fixed code stream |
|
Dual Stream |
Support |
|
Time bar |
Support |
|
Recording Mode |
Manual auto motion detection stop |
|
Video Detection | ||
Trigger Events |
Recording PTZ TourEmail |
|
Motion Detection |
396 (22×18) detection zone variable sensitivity levels |
|
Max Playback |
1/2/4 ch. |
|
Backup Mode |
USB,HDD,Network Backup |
|
Network | ||
| ||
Hard Disk |
1 SATA porteach SATA supports 4TB |
|
HDD Management |
Hard disk hibernation technology HDD faulty alarm & raid |
|
Auxiliary Interface | ||
USB |
2 USB 2.0 ports |
|
General | ||
POE function |
4 ch. |
|
IEEE 802.3af | ||
DC48V/1.35A(POE) | ||
RJ45 10M/100M | ||
Output power |
≤45W |
|
Power Supply |
DC 48V 1.35A |
|
Working Environment |
-10℃~+55℃ / 10%-90%RH |
|
Dimension(L*W*H) |
235x215x45 (mm) |
|
More Models:
Why Choose Us?
Our Energy Team:
1. Client Management Software
2. Web Interface
Welcome to visit our company
1. Our office building:
2. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
F. Packaging
Camera/NVR/DVR are packed with foam in individual color box, then color boxes are packaged in cartons, and all cartons having loading belt.
We provide 2 years warranty, OEM service: Silk-print with brand, products WEB page and local CMS software with customize brand.
