Dahua 1080p ip ptz camera full hd p2p ip camera
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Whatsapp:0086 131 4599 7168
Email:nicky(@)
Best service for you~
Features:
>20x optical zoom
> Support Triple-streams encoding
> Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
> DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Max 500°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out
> Support intelligent 3D positioning with DH-SD protocol
> Micro SD memory, IK10
| Model | DH-SD52C220T-HN | |
| Camera | ||
| Image Sensor | 1/2.8” Exmor CMOS | |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux*F1.4; B/W: 0.005Lux*F1.4 |
|
| S/N Ratio | More than 55dB | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm ~ 94.0mm (20x Optical zoom) |
|
| Max Aperture | F1.4 ~ F2.6 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 56.1° ~ 3.1° | |
| Close Focus Distance | 100mm~1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s | |
| Preset Speed | Pan: 500° /s; Tilt: 500° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD(Auto recognition) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) |
|
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/ D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 448K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/1.5A (±10%), POE plus (802.3at) | |
| Power Consumption | 13W | |
| Working Environment | In-ceiling: -20ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IK10 | |

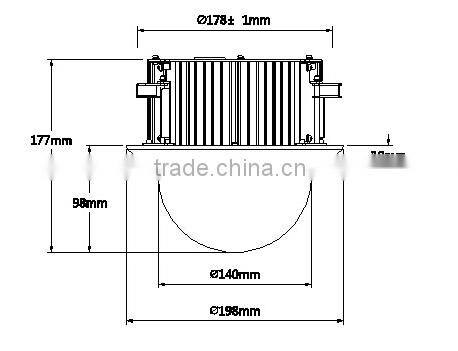

| Dimensions | Φ198(mm) x 177(mm) | |
Why Choose Us?
1.Software Interface
2. Web Interface
Welcome to visit our company
1. Our office building:
2. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
F. Packaging
Camera/NVR/DVR are packed with foam in individual color box, then color boxes are packaged in cartons, and all cartons having loading belt.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
