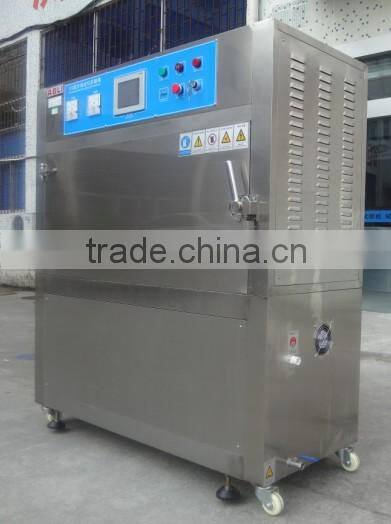

Aging Test Chamber with UV Lamp
ASLI , as a leading UV test chamber supplier from China, has more than 25 year’s experience in UV test chamber manufacture. ASLI boost his own technical team in UV test chamber R&D, and it also introduces the advance quality control method in UV test chamber production. Our UV test chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
Aging Test Chamber with UV Lamp Technical Parameters :
Model | EC-A | SC-A | EC-B | EC-C | |||
Light Device | UV carbon arc light | Sunlight carbon arc light | UV carbon arc light | ||||
Internal Dimension W×H×D (mm) | 1000×9000×1000 | 1100× 1000× 1100 | 700×900×700 | ||||
External Dimension W×H×D (mm) | 1300× 1300×2000 | 1300× 1300×2000 | 1150× 1800×900 | ||||
Testing Time (H.) | 20 | 60 | 20 | ||||
Testing Voltage | 120V~145V(135V) | 48V~52V(50V) | 120V~145V | ||||
Testing Current | 15A~17A(16A) | 58A~62A(60A) | 15A~17A | ||||
Black Ball Thermometer | 63±3°C~83±3°C | ||||||
Dia. Of Test Shelf (Φ, mm) | 800 | 960 | 508 | ||||
Revolution Speed of Testing Shelf (RPM) | 1 | 3 | |||||
Sample Shelf | 390×70mm, 30 pcs | 390×70mm, 30 pcs | 248×50mm, 20 pcs | ||||
Temperature Range | RT +10°C~85°C | RT +10°C~63°C | |||||
Humidity Range | AT40°C ,RH is 40%~85% / AT80°C, RHis30%-50% | Under 50%RH | 30%~85%RH | ||||
Carbon Rod | Upper | 13Φ×305mm, 2 pcs | 35Φ×350mm,4pcs | 13Φ×305mm ,1pc, | |||
Lower | 3Φ×100mm,4pcs | 23Φ×350mm,4pcs | 13Φ×100mm,2pcs | ||||
Power | AC220V 1&3 lines | AC380V 3& 5 lines | AC220V 1& 3 lines | ||||
Aging Test Chamber with UV Lamp Features:
1. Can record the temperature, humidity, arc light voltage, arc light current, BT black ball temperature and arc light in the
same time.
2. 60H continuous testing.
3. BT black ball temperature digital display, damper regulator can be controlled for stable of black ball’s temperature.
4. Unique DEW design
5.All data use digital display for long time management.
6. Adopt carbon arc Intensity detector, to keep the wave length in standard range.
Aging Test Chamber with UV Lamp Applications:
Climate resistant test chamber is applied to test the sample aging resistant performance by explore the
samples under simulated extremes sunlight ,humidity , etc. nature environmental conditions, can know thesamples fade, transmittance, glossiness, stripping, hard, softening performance in short time.This machine is widely used in t he aviation industry, paint industry, coating industry. The automotive industry, textile industry, dye industry, plastic industry, building industry, etc.
More detailed information about climate test equipment ,please do not hesitate to contact ASLi sales !

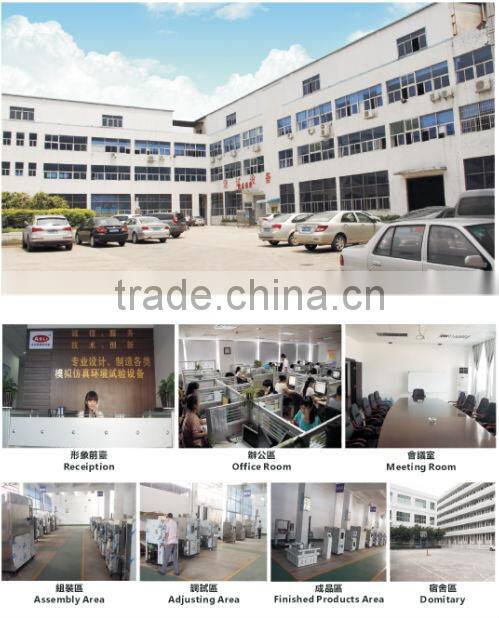

Factory pictures for your reference:
...
