Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera

Shenzhen Guowei Security Electronic Co., Ltd.
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera thumbnail-1
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera thumbnail-2
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera thumbnail-3
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera thumbnail-4
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera photo-1
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera photo-2
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera photo-3
Dahua Ptz ip Camera,dahua Speed Dome,dahua Security Camera ip Camera photo-4
US$ 1 - 440 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dahua
Model Number:
DH-SD59230T-HN
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Dahua
Model Number DH-SD59230T-HN
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

Dahua ptz  ip camera,dahua speed dome,dahua security camera ip camera

To Know,To Trust,your reliable security partner!

Skype:nickyzhou688668

Email:nicky(at)

Whatsapp:0086 131 4599 7168

Best service for you~



SD59230T-HN

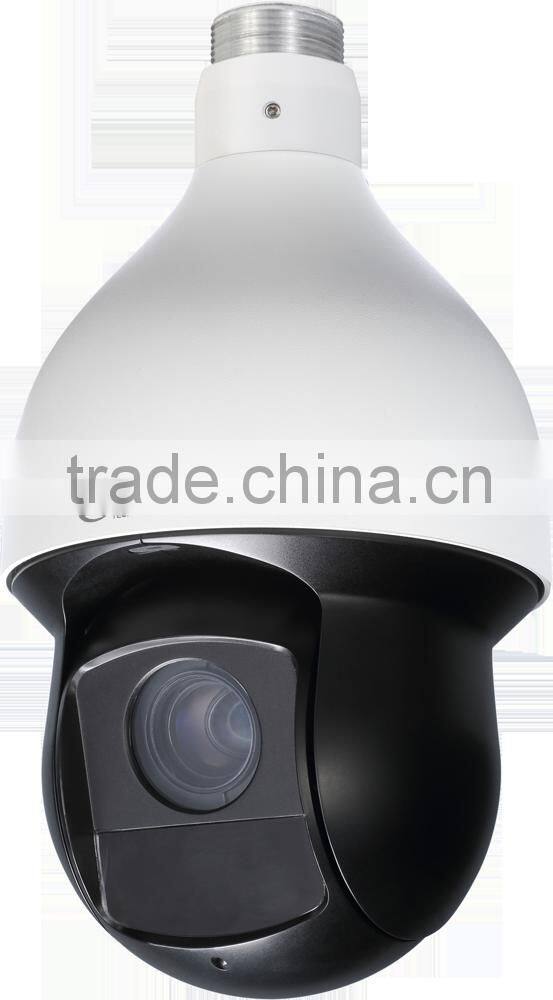

2 Megapixel Full HD 30x Network IR PTZ Dome Camera


Features:



>30x optical zoom
>Support Triple-streams encoding
>Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 400°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66, POE+
>IR Distance up to 100m


Specifications:



ModelDH-SD59230T-HN
Camera
Image Sensor1/2.8” CMOS
Effective Pixels1944(H) x 1092(V), 2Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/3 ~ 1/30,000s
Min. IlluminationColor: 0.05LuxF1.6;
B/W: 0.005LuxF1.6
S/N RatioMore than 55dB
Camera Features
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR (Digital WDR)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Privacy MaskingUp to 24 areas
Digital Zoom16x
Lens
Focal Length4.5mm~135mm
(30x Optical zoom)
Max ApertureF1.4 ~ F2.6
Focus ControlAuto / Manual
FOV-HH: 67.8° ~ 2.4°
Close Focus Distance100mm~ 1000mm
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset SpeedPan: 400° /s; Tilt: 300° /s
Preset300
PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed SetupHuman-oriented focal length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
IR Distance100m
Video
CompressionH.264 / MJPEG
Resolution1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240)
Frame RateMain Stream1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1D1/CIF(1 ~ 25/30fps)
Sub Stream 2720P/ D1/ CIF (1 ~ 25/30fps)
Bit RateH.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Audio
CompressionG.711a / G.711Mu(32kbps)/ PCM(128kbps)
Interface1/1 channel In/Out
Intelligent Function
IVS (optional)Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face DetectionSupport
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
CompatibilityONVIF PSIA CGI
Max. User Access20 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 128GB
Alarm2/1 channel In/Out
General
Power SupplyAC24V, POE plus(802.3at)
Power Consumption13W, 23W (IR on)
Working Environment-40ºC ~ 70ºC / Less than 90% RH
Ingress ProtectionIP66

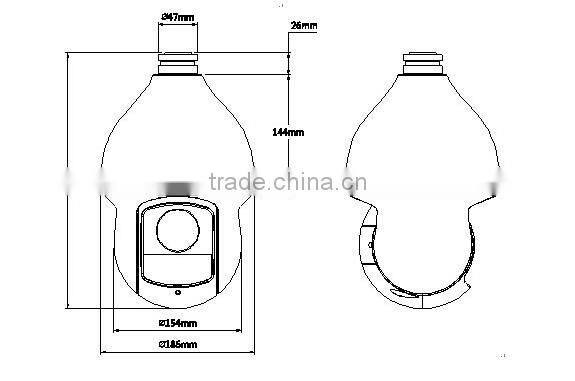

DimensionsΦ186.0(mm) x 309(mm)



 Dahua ptz ip camera,dahua speed dome,dahua security camera ip cameraDahua ptz ip camera,dahua speed dome,dahua security camera ip camera




Why Choose Us?

1. Client Management Software

2. Web Interface

Welcome to visit our company

1. Our office building:

2. Our Factory detail:

A. Raw Materials

Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

B. Assembling

we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.

C. Aging Products

24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.

D. OEM&ODM

Customer LOGO can be printed on goods/color box/labels upon confirmed.

E. Quality Test

Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.

F. Packaging

Camera/NVR/DVR are packed with foam in individual color box, then color boxes are packaged in cartons, and all cartons having loading belt.

3. Exhibitions:

We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America,  IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX  in South Africa,  …



FAQ



 1. Payment


What are the terms of payments you offer?

We accept payment via T/T, Paypal, West union etc

2. Shipment

(1)How long will it takes to deliver goods?

We will deliver your goods within 7-10 working days after an order confirmed

(2)What kind of packaging you offer?

We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.

(3)What kind of transportation methods you offer?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver your goods by air and sea as your request.

3. Our Services

Warranty: We cover 2 Year warranty for all our products since shipment day.

For all your inquiries about our products, we will reply you in detail within 24 hours.
