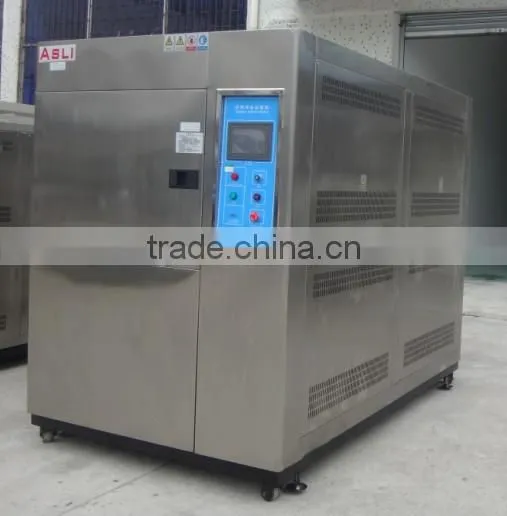

Solar Panel Testing System
ASLI , as a leading solar panel testing system supplier from China, has more than 25 year’s experience in solar panel testing system manufacture. ASLI boost his own technical team in solar panel testing system R&D, and it also introduces the advance quality control method in solar panel testing system production. Our solar panel testing system series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
1). Solar Panel Testing System Technical Parameters:
Model |
TS-42(A~C) |
TS-80(A~C) |
TS-150(A~C) |
TS-252(A~C) |
TS-450(A~C) |
|||||||
|
Internal Dimension WxHxD ( mm) |
400x350x350 |
500x400x400 |
600x500x500 |
700x600x600 |
800x750x750 |
|||||||
|
External Dimension WxHxD (mm) |
1400x1800x1400 |
1550x1950x1550 |
1600x2000x1700 |
1700x2100x1750 |
1800x2200x1900 |
|||||||
|
Temperature Range of Testing zone |
Type A:-40 ºC~+150ºC (200ºC is Optional) |
Type B:-55ºC ~+150ºC (200ºC is Optional) |
Type C:-65ºC ~+150ºC (200ºC is Optional) |
|||||||||
|
High temperature Range of Testing zone: +60~+150ºC (200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC/-55ºC/-65ºC | ||||||||||||
|
Exposure Time of High /Low Temperature |
Exposure Time of High Temperature:+60ºC~+150ºC(200ºC is Optional) 30Mins |
|||||||||||
Exposure Time of Low Temperature:-10ºC~Type B:-40ºC/ Type B -55ºC/ Type C -65ºC 30Mins |
||||||||||||
|
Temperature of Heat-Storing Slot /Heating Time |
RT~200ºC/About 45mins |
|||||||||||
|
Temperature of Cool- storing Slot/Cooling Time |
RT~-75ºC/ About 100mins |
|||||||||||
|
Temperature Recovery Time/ Conversion Time |
≤5min/≤5sec |
|||||||||||
|
Precision Temperature Control / Distribution Accuracy |
±0.5ºC/±2ºC |
|||||||||||
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or EE cold-rolled steel with paint coated. |
|||||||||||
Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
|||||||||||
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
|||||||||||
Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
|||||||||||
|
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm |
|||||||||||
Accessories |
viewing window(special order) |
|||||||||||
Compressor |
French Tecumseh Brand, German Bizer Brand |
|||||||||||
Power |
AC220V 1 ø 3 lines,50/60HZ, AC380V 3ø 5 lines,50/60HZ |
|||||||||||
Weight (Approx) |
450 |
600 |
750 |
950 |
1200 |
|||||||
2) Solar Panel Testing System Features:
1.Solar panel testing system is divided into three boxes: high temperature, low temperature, and the testing area, testing
products placed on the testing area; when testing, the valve , which drove by cylinder,lead the high temperature or low
temperatures into the testing area. The test sample is in static mode.
2.Using touch-ontrol graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal
shock measurement.
4.For high temperature shock or low temperature shock, maximum time is up to 999H, and maximum circulation cycles
are 9999 times.
5.The system can be used for automatic circulation shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. R232 and R485 communication interface.
...
