Environmental Stress Screening (ESS) System /Thermal Shock Test Chamber / Thermal Shock Testing Equipment / Thermal Shock Chambers / High Low Temperature Test Chamber / Fast Temperature Change Test Machine /Environmental Chamber
Environmental Stress Screening (ESS) System Technical Parameters:
Model |
TS-42(A~C) |
TS-80(A~C) |
TS-150(A~C) |
TS-252(A~C) |
TS-450(A~C) |
||||
|
Internal Dimension WxHxD ( mm) |
400x350x350 |
500x400x400 |
600x500x500 |
700x600x600 |
800x750x750 |
||||
|
External Dimension WxHxD (mm) |
1400x1800x1400 |
1550x1950x1550 |
1600x2000x1700 |
1700x2100x1750 |
1800x2200x1900 |
||||
|
Temperature Range of Testing zone |
Type A:-40 °C~+150°C (200°C is Optional) |
Type B:-55°C ~+150°C (200°C is Optional) |
Type C:-65°C ~+150°C (200°C is Optional) |
||||||
|
High temperature Range of Testing zone: +60°C~+150°C(200°C is Optional); Low Temperature Range of Testing Zone: -10°C~-40°C/-55°C/-65°C |
|||||||||
|
Exposure Time of High/ Low Temperature |
Exposure Time of High Temperature:+60°C~+150°C(200°C is Optional) 30Mins |
||||||||
|
Exposure Time of Low Temperature:-10°C~Type A:-40°C/ Type B -55°C/ Type C -65°C 30Mins |
|||||||||
|
Temperature of Heat-Storing Slot/Heating Time |
RT~200°C/About 45mins |
||||||||
|
Temperature of Cool-storing Slot/Cooling Time |
RT~-75°C/ About 100mins |
||||||||
|
Temperature Recovery Time/ Conversion Time |
≤5min/≤5sec |
||||||||
|
Control Accuracy / Distribution Uniformity |
±0.5°C/±2°C |
||||||||
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
||||||||
Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
||||||||
|
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm |
||||||||
Compressor |
French “Tecumseh” Brand, Germany Bitzer Brand |
||||||||
Power |
AC220V 1 Phase 3 lines,50/60HZ, AC380V 3 Phase 5 lines,50/60HZ |
||||||||
Weight (Approx) |
450 |
600 |
750 |
950 |
1200 |
||||

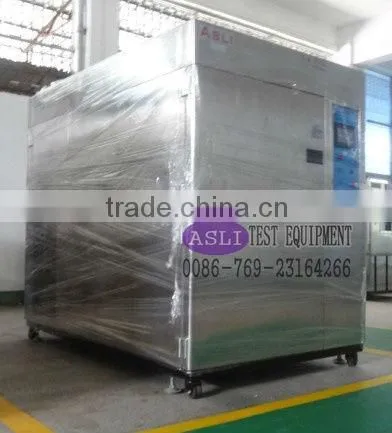

Environmental Stress Screening (ESS) System Pictures (for reference only ):
...
