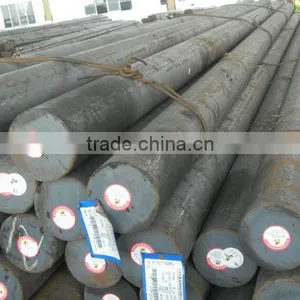

Help Center1.2379 /D2/SKD11/Cr12Mo1V1 Mould Steel D2
Related Products
-
1.2379 /D2/SKD11/Cr12Mo1V1 25mm Thick Mild Steel PlatesUS$ 1,000 - 2,500MOQ: 5 Tons -
NAK80/10Ni3MnCuAl Hot Rolled Stainless Steel PlateNegotiableMOQ: 20 Tons
-
NAK80/10Ni3MnCuAl Hot Rolled Steel Round BarNegotiableMOQ: 20 Tons
-
NAK80/10Ni3MnCuAl Hot Stainless Steel SheetNegotiableMOQ: 20 Tons
-
9CrWMn/1.2510/O1/SKS3 Hot Rolled Pickled Oil SteelUS$ 800 - 1,500MOQ: 20 Tons
Specifications
We have our own factory .Our company is specialized in mould steel D2 and all kinds of steel with cost advantage .mould steel D2
Chemical composition:
| C | Si | Mn | Cr | Mo | V | P | S | Co |
| 1.40~1.60 | ≤0.60 | ≤0.60 | 11.00~13.00 | 0.70~1.20 | ≤1.10 | ≤0.030 | ≤0.030 | ≤1.00 |
The main properties:
1. The hardness after 1.2379 tool steel annealing Less than or equal 255 HBS.
2. 1.2379 tool steel has a higher strength and toughness, wear resistance than Cr12MoV tool steel.
3. 1.2379 tool steel is a high carbon and high chromium cold work die steel.
Application:
1. 1.2379 tool steel is used in wear stamping die.
2. 1.2379 tool steel is used in deep die of cold extrusion die.
3. 1.2379 tool steel is used for making high precision,Cold squeezing mold.
4. The other use of mold.
The quenching specification :
| Programs | The heating temperature ( ° C ) | Cooling | Hardness(HRC) | ||
| The first warm-up | The second warm up | The final heating | |||
| Program 1 | 500~600 | 820~860 | 980~1040 | Oil cooling or Air-cooled | 60~65 |
| Program 2 | 500~600 | 820~860 | 1060~1100 | Oil cooling or Air-cooled | 60~65 |
The tempering specification :
| Programs | Tempering temperature ( ° C ) | Tempering the number | Hardness(HRC) |
| Program 1 | 180~230 | 1 | 60~64 |
| Program 2 | 510~540 | 2 | 60~64 |
Delivery period:
30-45days

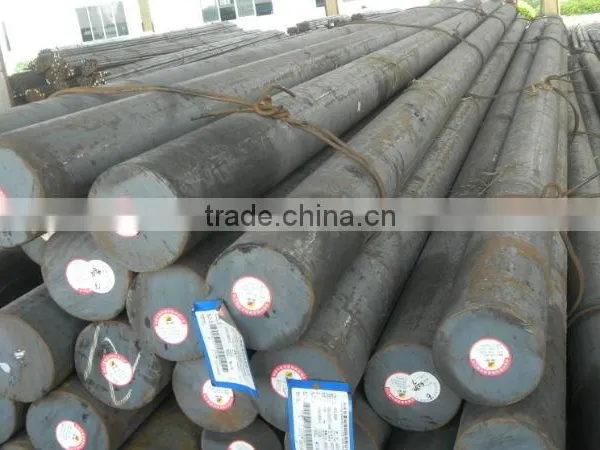

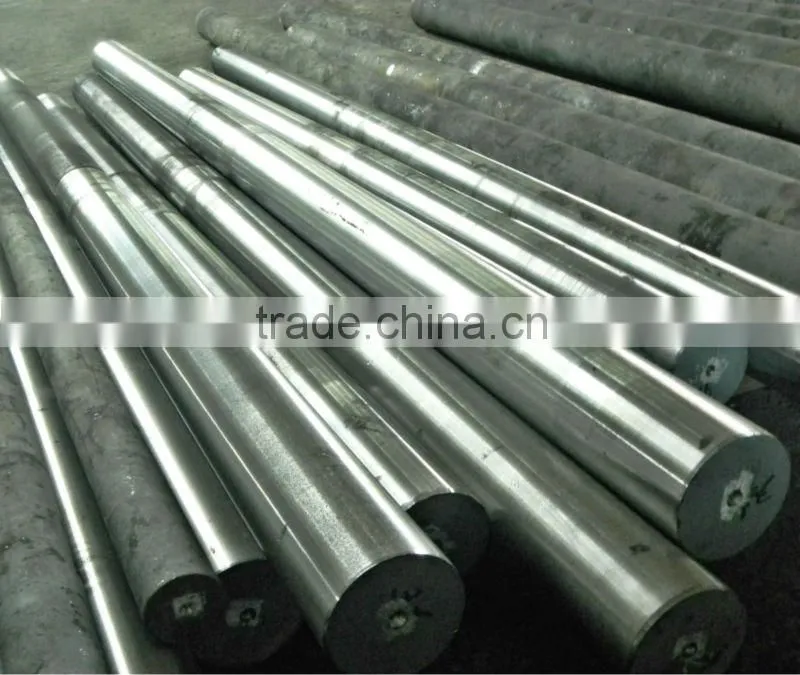

Product appearance :
Black surface/polished/turned
Application:1.2379 Tool Steel
1.Excellent toughness and suitable for bath nitriding.
2.Cold extrusion tools,trimming,cutting and stamping tools for steet thickness upto 6mm,precision cutting tools for sheet thickness up to 12.2mm,
3.Blaniking and punching tools,wood working tools,shear blades for cutting light gauge material,thread rolling dies,drawing,deep drawing,pressure pads and highly wear-resistant plastic moulds.
