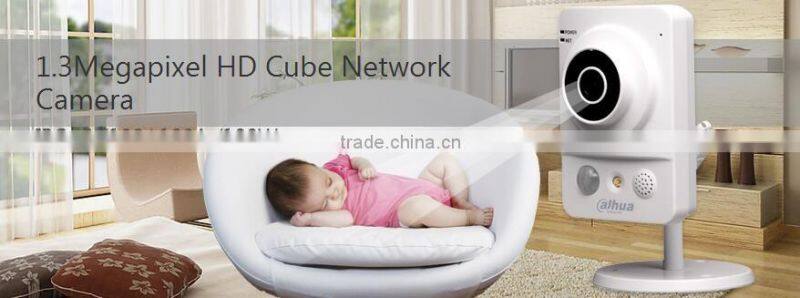

Network IP Camera Megapixel IP Camera in CCTV Camera
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Whatsapp:0086 131 4599 7168
Email:nicky(@)
Best service for you~
Features:
>1/3” 1.3Megapixel Aptina CMOS
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps 1.3M (1280×960)/ 720P(1280×720)
>DWDR, Day/Night, 3DNR, Auto iris, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens
>IR LEDs length 10m
>PIR sensor range 6m
>Micro SD memory (KW100A&KW100W only), PoE (KW100&KW100A only), Wi-Fi (KW100W only)
| Model | DH-IPC-KW100 | DH-IPC-KW100A | DH-IPC-KW100W | ||
| Camera | |||||
| Image Sensor | 1/3” 1.3Megapixel Aptina CMOS | ||||
| Effective Pixels | 1280(H)x960(V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/10000 | ||||
| Min. Illumination | 0.01lux/F1.8(color), 0Lux/F1.8(IR on) | ||||
| S/N Ratio | More than 50dB | ||||
| Video Output | N/A | ||||
| Camera Features | |||||
| Max. IR LEDs Length | 10m | ||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| Backlight Compensation | BLC / HLC / DWDR | ||||
| White Balance | Auto/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 2D | ||||
| Privacy Masking | Up to 4 areas | ||||
| Lens | |||||
| Focal Length | 3.6mm | ||||
| Max Aperture | F1.8 | ||||
| Focus Control | Manual | ||||
| Angle of View | 70° | ||||
| Lens Type | Fixed Lens | ||||
| Mount Type | Board-in Type | ||||
| Video | |||||
| Compression | H.264/MJPEG | ||||
| Resolution | 1.3M(1280x960)/720P(1280x720)/D1/CIF | ||||
| Frame Rate | Main Stream | 1.3M/720P(1~25/30fps) | |||
| Sub Stream | D1/CIF(1 ~ 25/30fps) | ||||
| Bit Rate | H.264: 16K ~ 8096Kbps | ||||
| Audio | |||||
| Compression | N/A | G.711a / G.711u/ PCM | |||
| Interface | N/A | Built-in Mic, Built-in speaker | |||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Wi-Fi | N/A | Wi-Fi(802.11b/g) | |||
| Protocol | IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||||
| ONVIF | ONVIF Profile S | ||||
| Max. User Access | 10 users | ||||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
| Auxiliary Interface | |||||
| Memory Slot | N/A | Micro SD, Max 64GB | Micro SD, Max 64GB | ||
| RS485 | N/A | ||||
| Alarm | N/A | 1/1 channel In/Out | |||
| PIR Sensor Range | Up to 6m | ||||
| General | |||||
| Power Supply | DC12V, PoE(802.3af) | DC12V | |||
| Power Consumption | <4W | ||||
| Working Environment | -10°C~+50°C, Less than 95%RH | ||||
| Ingress Protection | N/A | ||||
| >Vandal Resistance | N/A | ||||
| Dimensions(W×D×H) | 66.6mm×99.5mm×131.2mm | ||||
| Weight | 0.35Kg (0.4kg with bracket) | ||||
Why Choose Us?
1.Software Interface
2. Web Interface
Welcome to visit our company
1. Our office building:
2. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
F. Packaging
Camera/NVR/DVR are packed with foam in individual color box, then color boxes are packaged in cartons, and all cartons having loading belt.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
