Help CenterGWSECU SONY178 ip Camera Ture WDR 120DB Poe Super Low Lux Super Clear Image Black Glass Color Image in Alltime
Related Products
-
IPC-HDW1320S 30m IR Range IP67 Rated 3mp 1080p HD Dome CameraNegotiableMOQ: 1 Set -
Dahua HDW1320S IR Dome Camera 3MP POE Full HD Network IR Eyeball CameraNegotiableMOQ: 1 Set
-
Hikvision Cctv Camera Dahua Ipc Hfw1320S Mini Dome IP Camera With 30m IR IP67 POENegotiableMOQ: 1 Set
-
HDW1320S Mini Dome IR30M Ip67 1080p ip Camera Dahua Cctv Surveillance Systems ip Camera PoeNegotiableMOQ: 1 Set
-
Dahua IPC-HDW1320 3MP Mini Eyeball Dome Camera 3.6mm Fixed Lens Ipc in Stock PromotionNegotiableMOQ: 1 Set

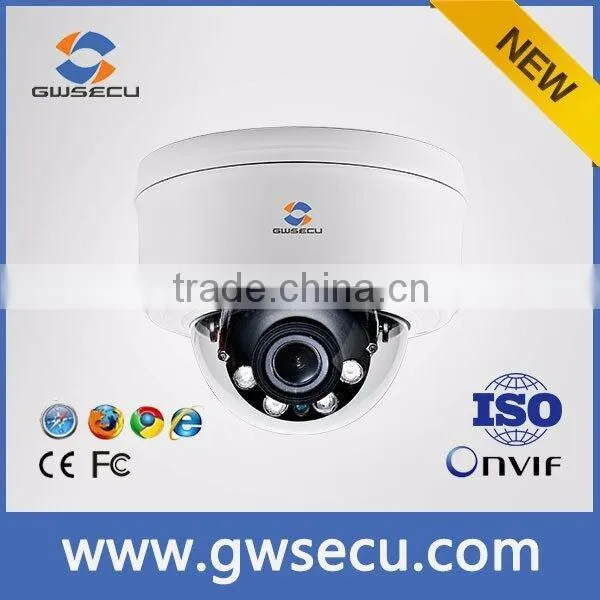

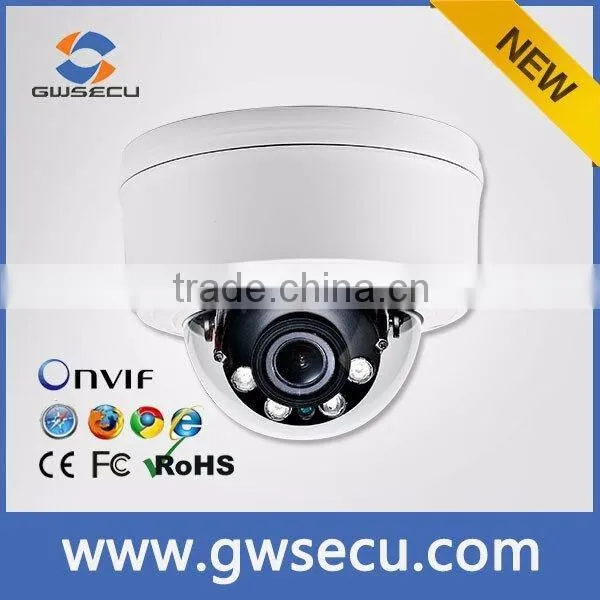

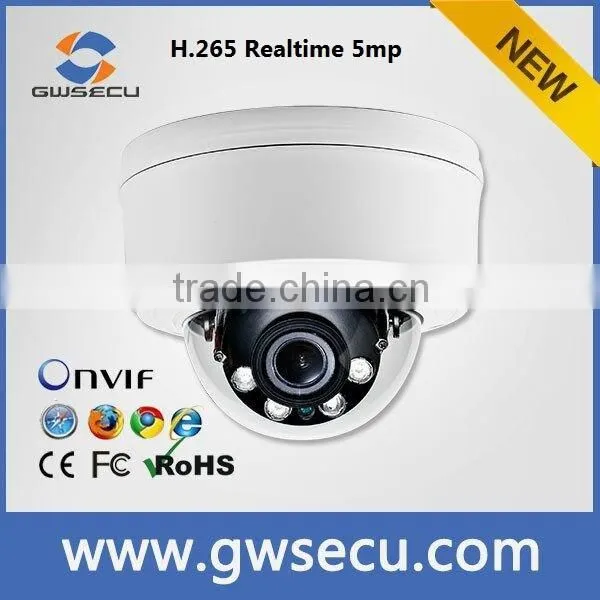

GWH-HD55AC85-DP
H.265 5.0Mp HD WDR Varifocal lens Network Dome Camera
>1/1.8" 5.0 Megapixel Progressive Scan Sony CMOS sensor
>High-performance Hisilicon DSP
>H.265&MJPEG video compression and JPEG image capture
>Max 30fps@5MP(2592×1944)
>WDR (120dB)
>Day/Night(ICR)&3D DNR&AWB&AGC&BLC
>Dual encoding streams supported
>3.6~10mm /F1.4 Manual lens
>4pcs Φ11 IR lights ,Max IR Distance :30m
>Built-in 1/1 alarm in/out
>True Day/Night ICR
>Micro SD memory, IK10, POE
>Built-in Web server, NVR, CMS
>IP66 all-environments protection

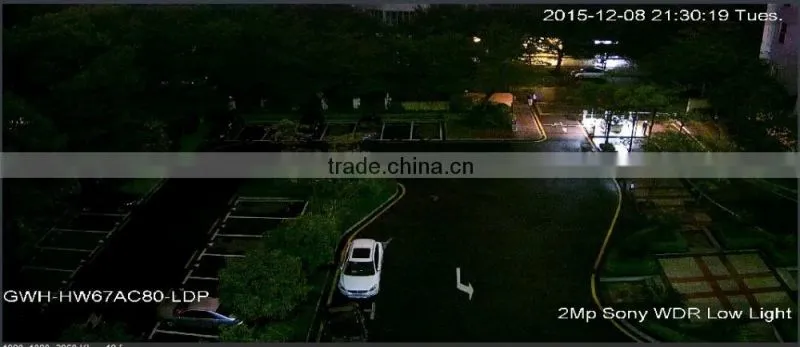

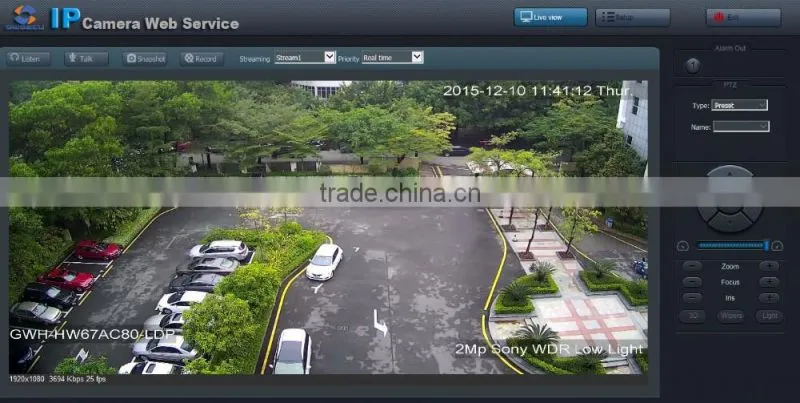

H.265 IP Camera with Day mode:
Starligt------full color image at night

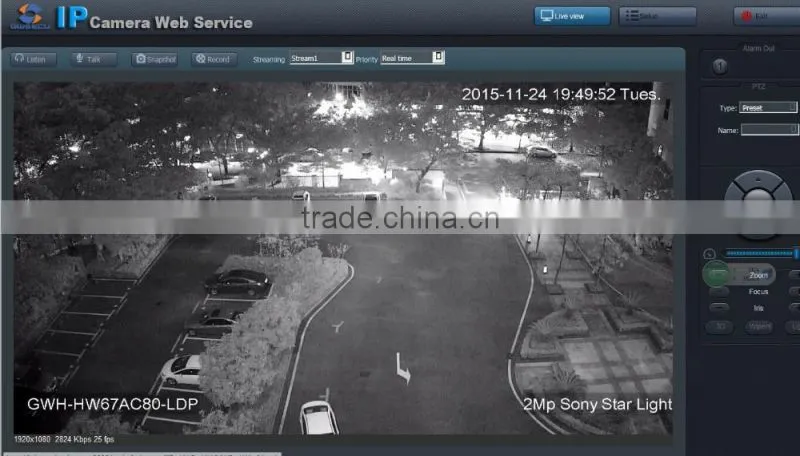

H.265 IP Camera with Night mode:
compatible with famous CMS.like Digifort,Avigilon,Milestone,Nuuo Etc.

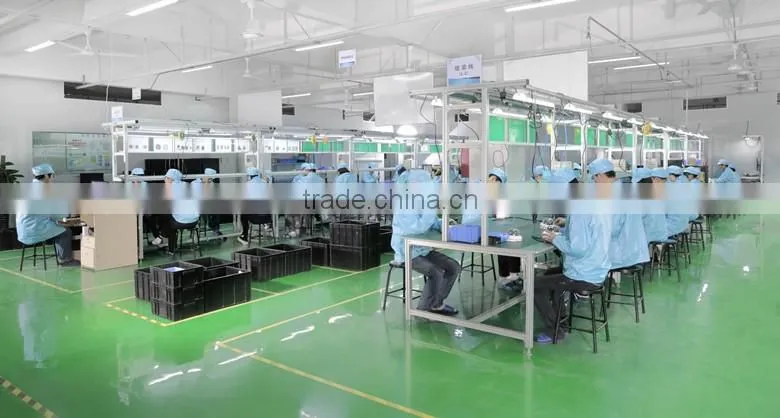

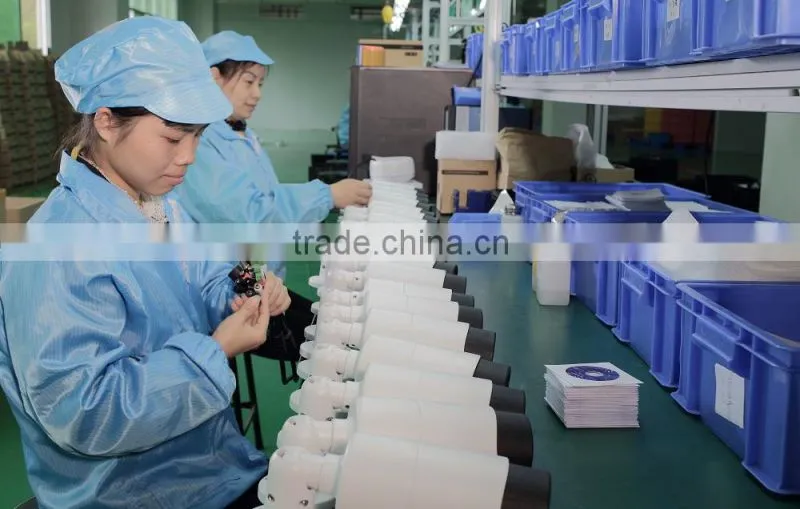

As a professional HD IP Camera Manufacturer in China, we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean. We also have all kinds of production and inspection equipment to maximize high-efficient production capacity while ensuring product quality.
Salesteam in CPSE Fair
Factory Testing procedure: GWSECU adhering to the "quality first" principle. We provide superior products and services to our clients. Company invests abundant capital in advanced testing equipment to ensure products quality. Test including: Water-spray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
Technician datasheet
| Model | GWH-HD55AC85-DP |
| General | |
| Main Processor | High-performance Hisilicon DSP |
| Operating System | embedded LINUX |
| Resource | Simultaneous remote monitoring local recording and remote control |
| User Interface | WEB CMS NVR |
| Camera | |
| Image Sensor | 1/1.8" 5.0 Megapixel Progressive Scan Sony CMOS Sensor |
| Effective Pixels | 2592 (H)×1944(V) |
| Electronic Shutter | 1/5s to 1/50000s |
| Mini. Illumination | Color:0.2Lux/F1.2; B/W:0.003Lux/F1.2; |
| Signal Noise Ratio | >50dB |
| Day/Night Mode | Auto dual IR-Cut filter |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR Dynamic Range | 120dB |
| Lens | 3.6mm~10mm/F1.4Manual lens |
| Max IR Distance | 30m 4pcsΦ11 IR lights |
| Video | |
| Video Compression | H.265/H.264/MJPEG Optional |
| H.264 Encode Type | H.265 Main Profile / H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
| Video Bit Rate | Main Stream: 200Kbps~12Mbps |
| Sub Stream: 100Kbps~6Mbps | |
| Image Resolution | 5.0Mp(2592×1944)/3.0Mp(2048×1536 ) /1080P(1920×1020) / 720P(1280×720) / D1(704×576/704×480) |
| Encoding Speed | Main Stream: 50Hz: 30fps (2592 × 1944) 60Hz:30fps (2592 × 1944) |
| Extra Stream: 50Hz: 25fps(640 × 480) 60Hz: 30fps (640 × 480); | |
| Video Format | PAL/NTSC |
| Audio | |
| Audio Compression | G.711a/G.711u/RAW_PCM Optional |
| Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps) |
| Audio Input | 1-channel 3.5mm audio interface MIC IN/Line IN |
| Audio Output | 1-channel 3.5mm audio interface (line level600Ω) |
| Network | |
| Ethernet | RJ-45 (10/100base-T) |
| Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
| ONVIF | ONVIF Ver.2.4 |
| Max User Access | 10 users |
| Smart phone | Iphone Ipad Android |
| Remote Operation | Monitor System setting Log information Maintenance & Upgrade |
| Browser | IE(9/10/11)Chrome Firefox Safaribetc etc |
| Auxiliary Interface | |
| Reset Input | One Reset Button(Be effective after continues to hold down for 3 seconds) |
| Memory Slot | TF Card Max 64GB |
| RS485 | PTZ Control |
| Alarm Input | 1-channel input Normally Open/Normally Close modes adjustable |
| Alarm Output | 1-channel output 120VAC 1A/24VDC 1A |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| Environmental | |
| Power Supply | DC12V |
| Power Consumption | <7W |
| Working Environment | -40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
| IP Grade | IP66 |
| Dimensions(mm) | 154× 121.54mm |
| Weight(kg) | 1.1kg |
| PoE | IEEE802.3af |
We provide 2 years warranty, OEM service: Silk-print with brand, products WEB page and local CMS software with customize brand.
If you intersted in our products,just contact us at any time.
