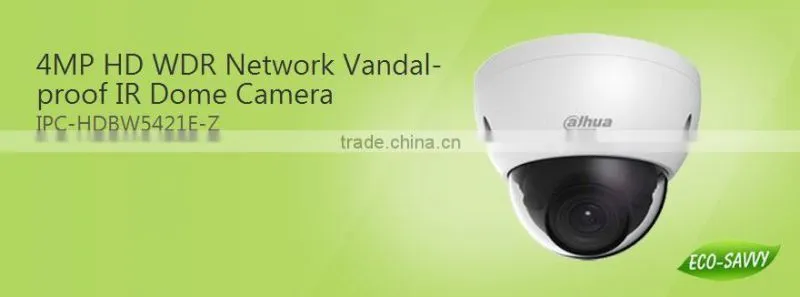

Dahua 4MP HD WDR Network Vandal-proof IR Dome Camera
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HDBW5421E-Z
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dahua 5MP Fisheye IP CamUS$ 90 - 140MOQ: 5 Pieces -
Full HD IP66 Waterproof ip Camera Software for Govertment ProjectsUS$ 70 - 110MOQ: 10 Pieces
-
Vandal-proof Outdoor Dome IP Network Camera CCTV For Government ProjectUS$ 60 - 110MOQ: 1 Piece
-
Gwsecu 3.0mp Cmos hd Wdr Water-proof ip ir Mini Bullet Network Security CameraUS$ 1 - 78MOQ: 1 Piece
-
Gwsecu Star Light Camera H.265 IP66 Waterproof Cctv ip Ptz CameraUS$ 1 - 170MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Dahua
Model Number
IPC-HDBW5421E-Z
Type
IP Camera
Style
Dome Camera
Sensor
CMOS
Technology
NetWork
Special Features
Vandal-proof
Features
>1/3” 4Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>Max 20fps*4Mp(2688×1520),25/30fps*3M(2304x1296)
>Smart Detection supported
>WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>2.7mm ~12mm motorized lens
>1/1 Alarm in/out, 1/1 audio in/out
>Max. IR LEDs Length 50m
>Micro SD memory, IP67, IK10, PoE
Specifications
| Model | DH-IPC-HDBW5421E-Z | |
| Camera | ||
| Image Sensor | 1/3” 4Megapixel progressive scan CMOS | |
| Effective Pixels | 2688(H)x1520(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s | |
| Min. Illumination | 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on) |
|
| S/N Ratio | More than 50dB |
|
| Video Output | 1 port |
|
| Camera Features | ||
| Max. IR LEDs Length | 50m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC /WDR(120dB) | |
| White Balance | Auto/Sunny/Night/Outdoor/Customized | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 2.7mm~12mm | |
| Max Aperture | F1.4 | |
| Focus Control | Motorized | |
| Angle of View | H: 100°~33° | |
| Lens Type | Motorized/ Auto Iris(DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/H.264H/H.264B/MJPEG | |
| Resolution | 4M(2688x1520)/4M(2560x1440)/3M(2304x1296)/1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 4M(1~20fps)/3M(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Third Stream | 720P(1-20fps) | |
| Bit Rate | H.264: 32K ~ 10Mbps | |
| Corridor mode | Support | |
| Audio | ||
| Compression | G.711a/ G.711u/ AAC | |
| Interface | 1/1 channel In/Out | |
| Smart Function(Optional) | ||
| Smart detection | Tripwire | |
| Intrusion | ||
| Abandoned/Missing | ||
| Scene Change | ||
| Audio detect | ||
| Face detect | ||
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| ONVIF | ONVIF,PSIA,CGI | |
| Max. User Access | 20users | |
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| RS485 | N/A | |
| Alarm | 1/1 channel In/Out | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V(AC24V optional), PoE (802.3af) | |
| Power Consumption | Max 10W (with IR on, motorized lens working) | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ159mm×117.9mm | |
| Weight | 0.8kg | |
