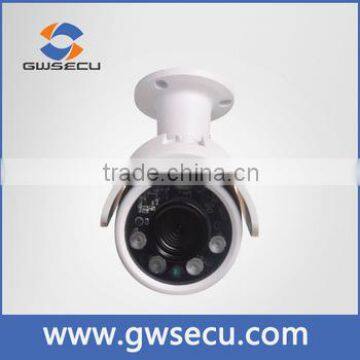

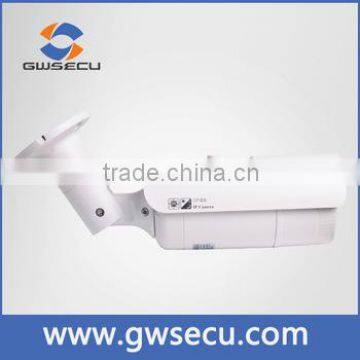

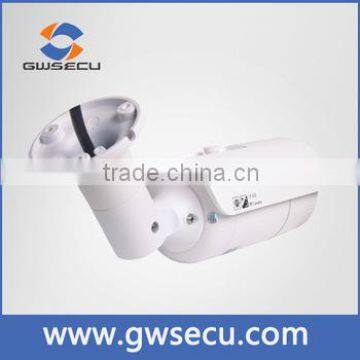

HD Megapixel IP IR Bullet Camera
US$ 60 - 80
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GWSECU
Model Number:
KDT-HW69AC80-P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HD 3MP IR IP Fixed CameraUS$ 50 - 70MOQ: 10 Pieces -
Gwsecu 3.0Mp CMOS HD TRUE WDR Waterproof IR Mini Bullet Network POECamera GWH-HW10AC83-DEPUS$ 60 - 66MOQ: 1 Piece
-
Dahua Cctv Night Vision Hfw 81200e-z Bullet Outdoor Ipc 2 Megapixel ip CameraNegotiableMOQ: 1 Set
-
4k HD ip Camera Poe Dahua Ir67 Outdoor Camera Cctv Security System With SMART Face DetectionNegotiableMOQ: 1 Set
-
Dahua IP67 50M IR 4K Full hd ip Camera Outdoor HFW81200E-Z Face Recognition Camera System With Smart FunctionNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GWSECU
Model Number
KDT-HW69AC80-P
Type
IP Camera
Style
Bullet Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
Why Choose us?
HD Megapixel IP IR Bullet Camera HD Megapixel IP IR Bullet Camera
2016 New Products
|
|
|
| 2.0mp Bullet IP Camera | 2.0mp Dome IP Camera | 2.0 Bullet IP Camera |
|
|
|
| 1.3mp Dome Network Camera | H.265 2.0MP Network Camera | 3.0MP Network Camera |
Features:
>1/2.8" 2.0 Megapixel Progressive Scan Sony Exmor IMX222 CMOS sensor Ti DaVinci Series DSP
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps @ 1080P (1920×1080)
>Dual encoding streams supported
>Lens:2.8~12mm /F1.4 Vari-focus
>4 pcs Φ11 IR lights ,Max. IR Distance: 30m
>True Day/Night ICR
>Support Alarm I/O
>Micro SD Card
>IP66 all-environments protection
>Support DC12V power supply, PoE
>Built-in Web server, NVR, CMS,APP
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps @ 1080P (1920×1080)
>Dual encoding streams supported
>Lens:2.8~12mm /F1.4 Vari-focus
>4 pcs Φ11 IR lights ,Max. IR Distance: 30m
>True Day/Night ICR
>Support Alarm I/O
>Micro SD Card
>IP66 all-environments protection
>Support DC12V power supply, PoE
>Built-in Web server, NVR, CMS,APP
Specification:
| Model | KDT-HW69AC80-P |
| General | |
| Main Processor | Ti DaVinci Series DSP |
| Operating System | embedded LINUX |
| Resource | Simultaneous remote monitoring local recording and remote control |
| User Interface | WEB CMS NVR APP |
| Camera | |
| Image Sensor | 1/2.8" 2.0 Megapixel Progressive Scan Sony Exmor IMX222 CMOS sensor |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/5s to 1/50000s |
| Mini. Illumination | Color:0.1Lux/F1.2 ; B/W:0.01Lux/F1.2; 0Lux/F1.2(IR on) |
| Signal Noise Ratio | >50dB |
| Day/Night Mode | Auto dual IR-Cut filter |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR Dynamic Range | DWDR |
| Lens | 2.8~12mm /F1.4 Vari-focus |
| Max IR Distance | 30m 4 pcs Φ11 IR lights |
| Video | |
| Video Compression | H.264/MJPEG Optional |
| H.264 Encode Type | H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
| Video Bit Rate | Main Stream: 200Kbps~12Mbps |
| Sub Stream: 100Kbps~6Mbps | |
| Image Resolution | 1080P(1920×1020) / 720P(1280×720) / D1(704×576/704×480) |
| Encoding Speed | Main Stream: 1080P/720P (1~25fps/30fps) |
| Extra Stream: D1/CIF(1~25fps/30fps) | |
| Video Format | PAL/NTSC |
| Audio | |
| Audio Compression | G.711a/G.711u Optional |
| Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps)/ |
| Audio Input | 1-channel 3.5mm audio interface MIC IN/Line IN |
| Audio Output | 1-channel 3.5mm audio interface (line level600Ω) |
| Network | |
| Ethernet | RJ-45 (10/100base-T) |
| Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
| Common Features | One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
| ONVIF | ONVIF Ver.2.4 |
| Max User Access | 10 users |
| Smart phone | Iphone Ipad Android |
| Remote Operation | Monitor System setting Log information Maintenance & Upgrade |
| Auxiliary Interface | |
| Reset Input | One Reset Button(Hold on 3 seconds at least) |
| Memory Slot | Micro SD Card Max 64GB |
| Alarm Input | 1-channel input Normally Open/Normally Close modes adjustable |
| Alarm Output | 1-channel output 120VAC 1A/24VDC 1A |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| Environmental | |
| Power Supply | DC12V |
| Power Consumption | <10W |
| Working Environment | -40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
| Dimensions(mm) | 275 x 90 x120.5 |
| Weight(kg) | 1.07 |
| PoE | IEEE802.3af |
| Protection Level | IP66 |
