DH IPC-HFW1320S dahua Original English Version Infrared Bullet Waterproof IPC Network 3MP IP Camera
Dahua IPC-HFW1320S Features
>1/3” 3Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 20fps@3M(2048×1536) & 25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm,6mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE

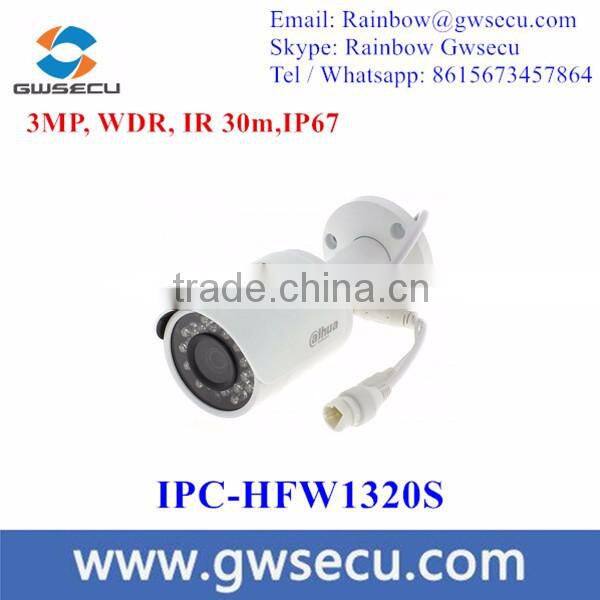

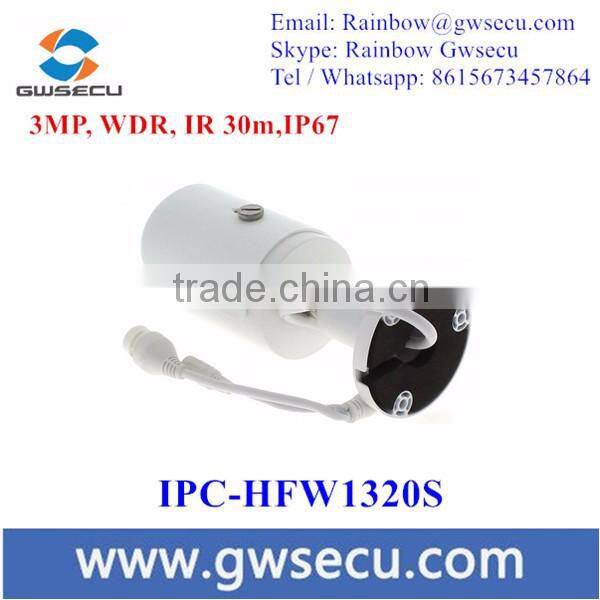

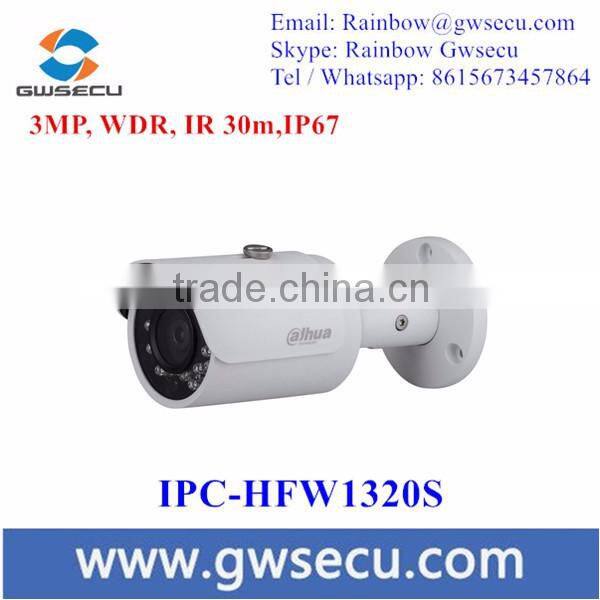

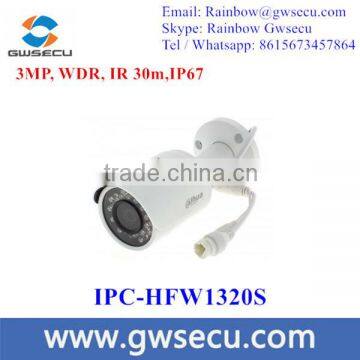

Picture Display of Dahua IPC HFW1320S 3mp Bullet Camera
Dahua 3MP Bullet Camera IPC-HFW1320S Specifications
Model |
DH-IPC-HFW1320S |
|
Camera | ||
Image Sensor |
1/3” 3Megapixel progressive scan CMOS |
|
Effective Pixels |
2048(H) ´ 1536(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1s~1/100000s |
|
Min. Illumination |
0. 045Lux/F2.1(Color), 0Lux/F2.1(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features | ||
Max. IR LEDs Length |
30m |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens | ||
Focal Length |
3.6mm(2.8mm,6mm optional) |
|
Max Aperture |
F2.0(F2.0/F2.0) |
|
Focus Control |
Manual |
|
Angle of View |
H: 81°(92°/55°) |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video | ||
Compression |
H.264/ H.264H/ H.264B/ MJPEG |
|
Resolution |
3M(2048×1536)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
3M(1 ~ 20fps)/1080P(1 ~ 25/30fps) |
Sub Stream |
D1(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 4kbps~8192bps |
|
Corridor Mode |
Support |
|
Audio | ||
Compression |
N/A |
|
Interface |
N/A |
|
Network | ||
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
|
Compatibility |
ONVIF, CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface | ||
Memory Slot |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General | ||
Power Supply |
DC12V, PoE (802.3af) |
|
Power Consumption |
<4.7W(IR on) |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
N/A |
|

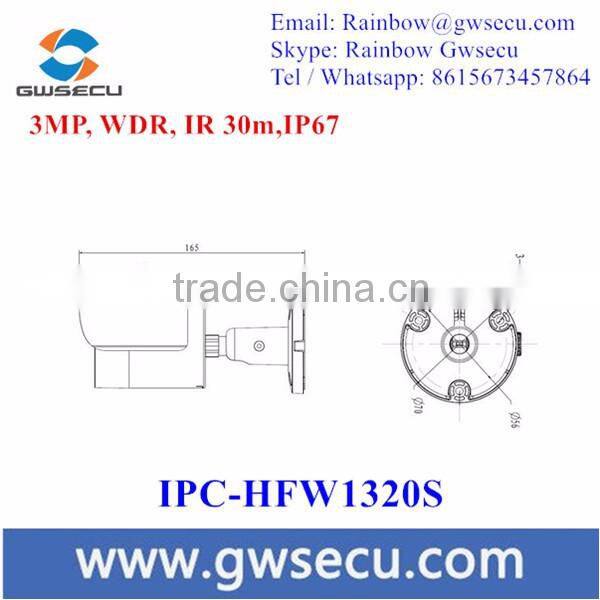

Dimensions |
Φ70mm×165mm |
|
Weight |
0.38Kg(with package 0.44 Kg) |
|
