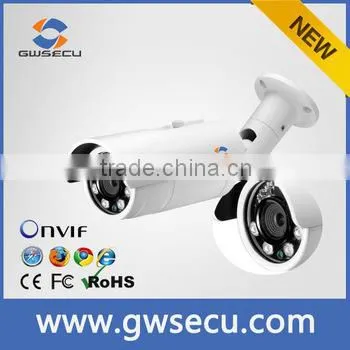

Help CenterNew 2016 1080P TF Card Project CCTV ip Camera Outdoor Waterproof IP CAM
Related Products
-
Provide Waterproof ip Camera Good Quality ip Camera Network ip Camera for ProjectUS$ 80 - 110MOQ: 10 Pieces -
Hot Sale Outdoor 1080P POE ip Camera for Project Use With Motorized Lens Quality ChoiceUS$ 50 - 100MOQ: 10 Pieces
-
5.0Mp WDR Bullet Network IR Water-proof HD Network ip CameraUS$ 1 - 160MOQ: 1 Piece
-
Gwsecu 2mp P2p Star Light Cctv ip Camera Onvif StandardUS$ 1 - 100MOQ: 1 Piece
-
Cheap Ccvt System Dahua Wireless ip Camera High Definition Camera 3g Camera With Sim CardNegotiableMOQ: 1 Set
2.0MP CMOS HD Water-Proof IR Motorized Lens IP Camera
|
|
|
| 2.0mp Bullet IP Camera | 2.0mp Dome IP Camera | 2.0 Bullet IP Camera |
|
|
|
| 1.3mp Dome Network Camera | H.265 2.0MP Network Camera | 3.0MP Network Camera |
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps @ 1080P (1920×1080)
>Dual encoding streams supported
>Lens:2.8-12mm /F1.4 varifocal motorized lens
>4 pcs Φ11 IR lights ,Max. IR Distance: 30m
>True Day/Night ICR
>Support Alarm I/O
>Micro SD Card
>IP66 all-environments protection
>Support DC12V power supply, PoE
>Built-in Web server, NVR, CMS
| Model | KDT-HW69AC80-MP |
| General | |
| Main Processor | Ti DaVinci Series DSP |
| Operating System | embedded LINUX |
| Resource | Simultaneous remote monitoring local recording and remote control |
| User Interface | WEB CMS NVR |
| Camera | |
| Image Sensor | 1/2.8" 2.0 Megapixel Progressive Scan Sony Exmor IMX222 CMOS sensor |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/5s to 1/50000s |
| Mini. Illumination | Color:0.1Lux/F1.2 ; B/W:0.01Lux/F1.2; 0Lux/F1.2(IR on) |
| Signal Noise Ratio | >50dB |
| Day/Night Mode | Auto dual IR-Cut filter |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR Dynamic Range | DWDR |
| Lens | 2.8~ 12mm /F1.4 varifocal motorized lens |
| Max IR Distance | 30m 4 pcs Φ11 IR lights |
| Digital Denoise | 3D Digital Denoise |
| H.FOV | 86° ~ 26° |
| Mount type | Φ14 |
| Video | |
| Video Compression | H.264/MJPEG Optional |
| H.264 Encode Type | H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
| Video Bit Rate | Main Stream: 200Kbps~12Mbps |
| Sub Stream: 100Kbps~6Mbps | |
| Image Resolution | 1080P(1920×1020) / 720P(1280×720) / D1(704×576/704×480) |
| Encoding Speed | Main Stream: 1080P/720P (1~25fps/30fps) |
| Extra Stream: D1/CIF(1~25fps/30fps) | |
| Video Format | PAL/NTSC |
| Audio | |
| Audio Compression | G.711a/G.711u Optional |
| Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps)/ |
| Audio Input | 1-channel 3.5mm audio interface MIC IN/Line IN |
| Audio Output | 1-channel 3.5mm audio interface (line level600Ω) |
| Network | |
| Ethernet | RJ-45 (10/100base-T) |
| Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
| Common Features | One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
| ONVIF | ONVIF Ver.2.4 |
| Max User Access | 10 users |
| Smart phone | Iphone Ipad Android |
| Remote Operation | Monitor System setting Log information Maintenance & Upgrade |
| Auxiliary Interface | |
| Reset Input | One Reset Button(Hold on 3 seconds at least) |
| Memory Slot | Micro SD Card Max 64GB |
| Alarm Input | 1-channel input Normally Open/Normally Close modes adjustable |
| Alarm Output | 1-channel output 120VAC 1A/24VDC 1A |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| Environmental | |
| Power Supply | DC12V |
| Power Consumption | <10W |
| Working Environment | -40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
| Dimensions(mm) | 275mm x 90mm x120.5mm |
| Weight(kg) | 1.07Kg |
| PoE | IEEE802.3af |
| Protection Level | IP66 |

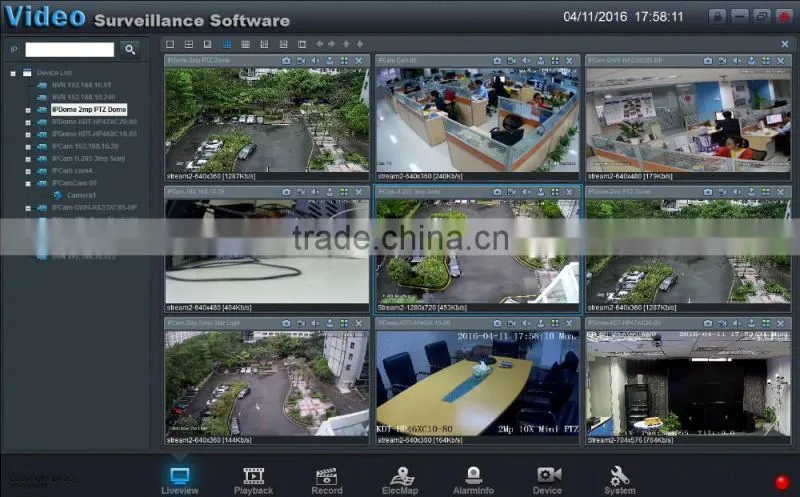

CMS&VSS Interface:

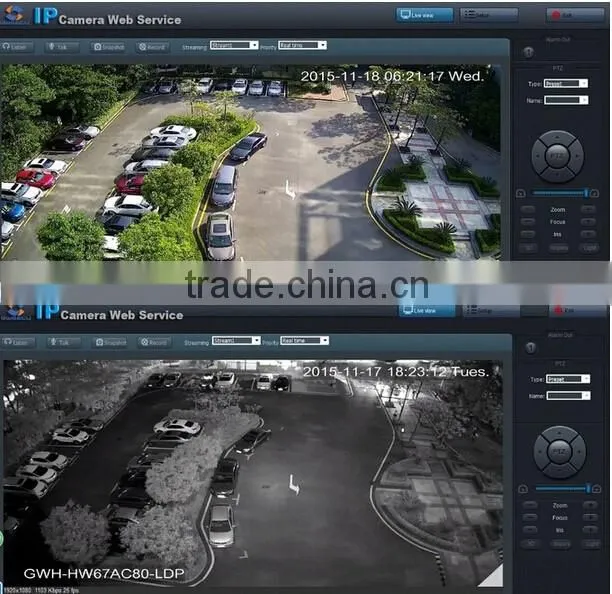

Web Interface:

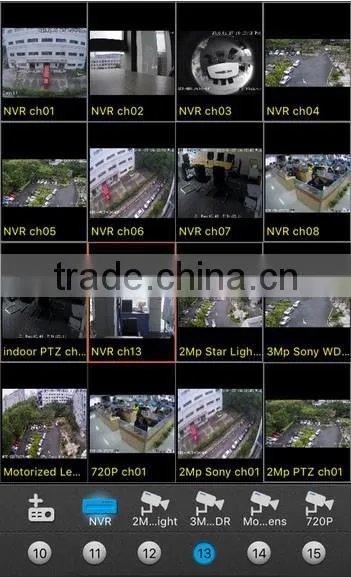

Mobile Phone View:
1. Onvif 2.42, High compatibility, Dahua,Hikivison, Nuuo, Axxon, Milestone, Geovision, Avigilon, Luxriot, See Tec, Aimetis, Genetec
2. GWSECU Strong mental housing; Same housing with different function of different system. H.265/H.264 1.3/2.0/3.0/4.0/5.0 Megapixel IP camera with Motorized lens/ Ultra WDR /low lux/ low stream,HD AHD,CVI,TVI for your choice.
3.GWSECU Perfect structure -heat disspating from bracket, Easy to put SD Card
4. Latest ARRAY LED--- work more longer life.
5.Support Multi-language, P2P and two-dimension Code.
6.User-friendly Web interface and CMS design, convinient for clients to use.
7.High quality control and full OEM Service (put your logo on camera and software, gift box, language.etc)
8.Fast shipping time(500pcs within 15 days).
9. Two year warranty and FREE online technical help with our engineer after sale.
Shenzhen Guowei Security Co., ltd.
Headquarters:
Add.: 6/F, Dong Fang Building 1, No.16 Gaoxin North 6th Road,North High-tech Industrial Park, Nanshan District, Shenzhen, China (518108)
Our Factory
Add.: 4/F, Jinma Building, Shihuan Rd, Shilongzai Community, Shiyan, Baoan District, Shenzhen, China
Zip Code: 518108
Branch:Hongkong Guowei Security co.,limited
Add.: Rm.602,Metro Center I,Lam Hing Street Kowloon Bay.N.T.
We provide 2 years warranty service for all products.
OEM service: Silk-print with brand, IE Browser Login, WEB GUI page, local CMS software with customize brand.
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, Westunion,L/C at sight or Alipay via Alibaba
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
3. What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4. What kind of transportation methods you offer?
A. We usually choose the cheapest express delivery for our clients, such as DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.You could use your own forwarder if possible.
B. We also can deliver your goods by air and sea as your request.
