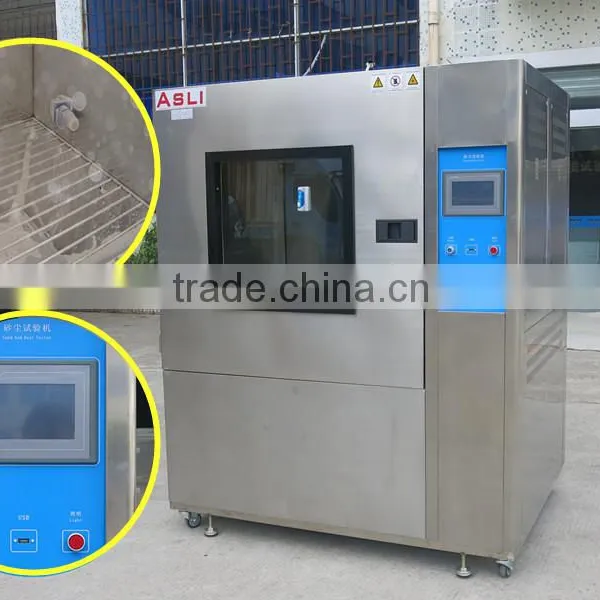

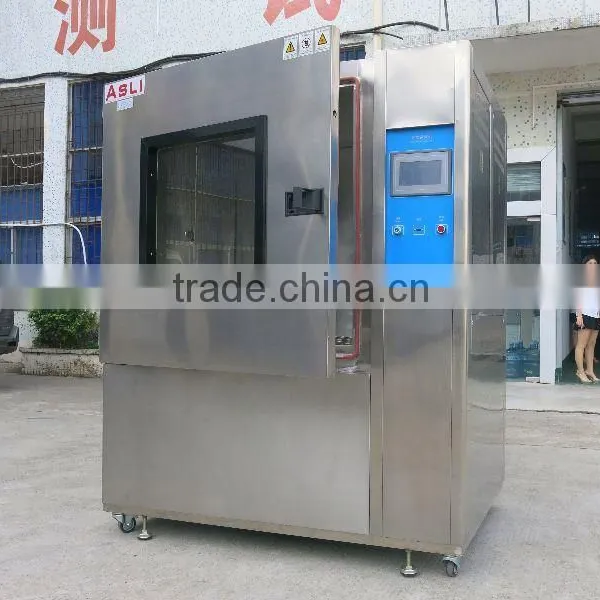

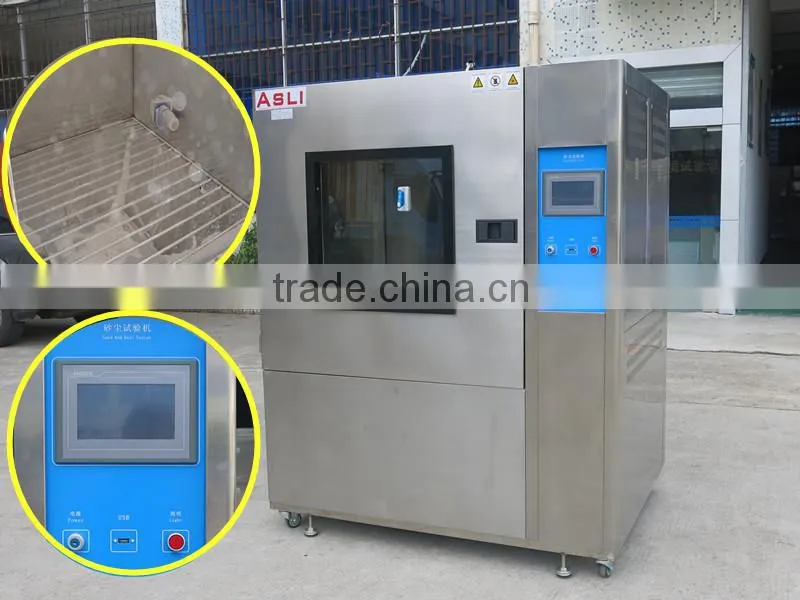

simulated sand and dust test chamber
ASLI , as a leading environment testing dust simulate aging chamber supplier from china, has more than 27 year’s experience in environment testing dust simulate aging chamber manufacture. ASLI boost his own technical team in sand& dust chambers R&D, and it also introduces the advance quality control method in sand& dust chambers production. Our environment testing dust simulate aging chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
simulated sand and dust test chamber Technical Parameters :
Model |
DT-F1 |
DT-F2 |
DT-F3 |
DT-C1 |
DT-C2 |
Remark |
F for floating dust |
C for cyclone dust |
|||
Concentration of Sand and Dust |
F1: 60000mg/m3
|
F2:3000mg/m3
|
F3:100mg/m3 |
C1: 5000mg/ m3, 5m/s |
C2: 100mg/ m3, 10m/s |
Internal Dimension WxHxD (mm) |
1000x1000x1000 |
1000x1000x1000 |
|||
External Dimension WxHxD (mm) |
1600x1800x1300 |
1650x1850x1450 |
|||
Temperature Range |
RT(25°C±15°C), or lab temperature |
RT(25°C±15°C), or lab temperature |
|||
Humidity Range |
35~90% R.H., or lab humidity |
35~90% R.H., or lab humidity |
|||
Talcum Powder Dosage(Kg/m ²) |
2 ~4 |
||||
Metal Net Mesh Standard Diameter(μm) |
50 |
||||
Diameter Between Metal Wires(μm) |
75 |
||||
Powder Spray & Dust Fall Mode |
1. Dust fall freely: adopt centrifugal fan to blow the sand or dust to the 1/5 of roof, then fall freely. 2. Blow the sand or dust: pressure spray dust from the bottom, multi-steps pressure adjustable |
||||
Test Standard |
Meet JIS, ISO, IEC60529,DIN40050,GB2423 test standard |
||||
Power |
AC 220V(±10%), 1, 3 Lines,50/60HZ ; |
||||
