dahua ip camera network dvr with 8/16ports cctv HD CVI DVR
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~

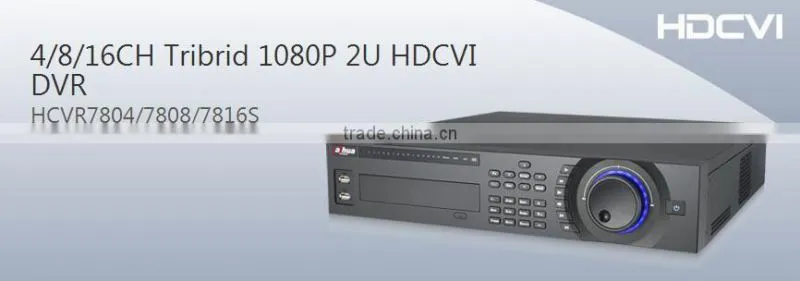

HCVR7804/7808/7816S
Features:
>Tribrid: Each channel supports HDCVI/Analog/IP Video input
>1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
>HCVR7804/7808/7816S:All channel 1080P realtime recording
>H.264 dual-stream video compression
>4/8 channel synchronous realtime playback, GRID interface & smart search
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 8 SATA HDDs up to 32TB, 1 eSATA, 4 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Specifications:
| Model | DH-HCVR7804S | DH-HCVR7808S | DH-HCVR7816S | ||
| System | |||||
| Main Processor | Embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video | |||||
| Input | 4 channel | 8 channel | 16 channel | ||
| Video Standard | HDCVI | 1080P/720P HDCVI Camera | |||
| Analog | NTSC/PAL | ||||
| IP | All channels support 1080P/720P IP Camera | ||||
| Audio | |||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||
| Output | 1 channel, BNC | ||||
| Two-way Talk | 1 channel input,1channel output, BNC | ||||
| Display | |||||
| Interface | 2 HDMI, 1 VGA, 1 TV | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Video/Audio Compression | H.264/G.711 | ||||
| Record Rate |
Main stream | 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |||
| Extra stream | CIF/QCIF(1~25/30fps) | ||||
| Bit Rate | 48~6144Kb/s | ||||
| Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||
| Recording Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Motion Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 4 channel | 8 channel | 16 channel | ||
| Relay Output | 6 channel | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | ||||
| Network | |||||
| Ethernet | 2RJ-45 port (10/100M/1000M) | ||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, SNMP, P2P | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
| Storage | |||||
| Internal HDD | 8 SATA ports(8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB | ||||
| External HDD | 1 eSATA port | ||||
| Auxiliary Interface | |||||
| USB | 4 ports(2 Rear), USB2.0 | ||||
| RS232 | 1 port, For PC communication & Keyboard | ||||
| RS485 | 1 port RS485 for PTZ control | ||||
| General | |||||
| Power Supply | AC 100~240 V, 50/60 Hz | ||||
| Power Consumption | 40W(without HDD) | ||||
| Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa | ||||
| Dimension(W×D×H) | 2U, 440mm×460mm×89mm | ||||
| Weight | 6.5KG(without HDD) | ||||
Software:
Showroom:
Welcome to visit our company
1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
