Megapixel CMOS 25/30/50/60fps@720P IP67 Dahua Mobile HDCVI Camera
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~

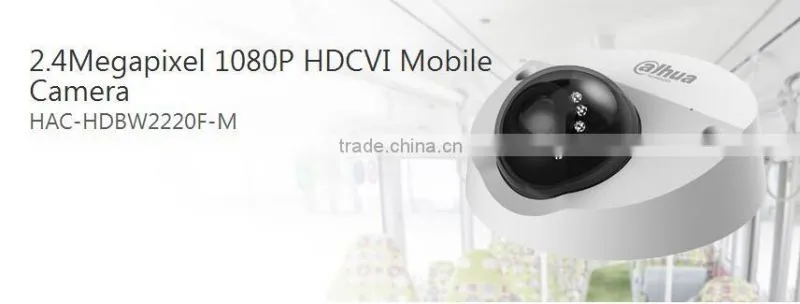

HAC-HDBW2220F-M
Features:
>1/2.8" 2.4Megapixel CMOS
>25/30@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD video output & Tester out
>OSD Menu, control over coaxial cable, Build-in MIC
>Day/Night(ICR), AWB, AGC, BLC, 3DNR
>3.6mm fixed lens (2.8mm, 6mm optional)
>Max. IR LEDs length 20m, Smart IR
>Aviation connector, Shock-proof
>IP67, IK10, DC12V
A series HD PT Wi-Fi Network Camera
Specification:
| Model | DH-HAC-HDBW2220FP-M | DH-HAC-HDBW2220FN-M |
| Camera | ||
| Image Sensor | 1/2.8" 2.4Megapixel CMOS | |
| Effective Pixels | 1984(H)×1225(V) | |
| Electronic Shutter | 1/3s~1/100,000s | |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P | |
| Synchronization | Internal | |
| Mini. Illumination | 0.05Lux/F1.8, 0Lux IR on | |
| Video Output | 1-channel HDCVI high definition video output (Aviation connector) Tester out |
|
| Camera Features | ||
| Max. IR LEDs Length | 20m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D/3D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 3.6mm (2.8mm, 6mm optional) | |
| Angle of View | H: 88º(106º/55º) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±20% | |
| Power Consumption | Max 3.3W | |
| Working Environment | -30°C~+60°C / Less than 95%RH no condensation) | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |
| Ingress Protection | IP67 & IK10 | |
| Dimensions(W×D×H) | Φ106.3mm×50.3m | |
| Weight | 0.3kg | |
| Material | Metal | |
| Others | Build-in MIC | |
Software:
Showroom:
Welcome to visit our company
1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
