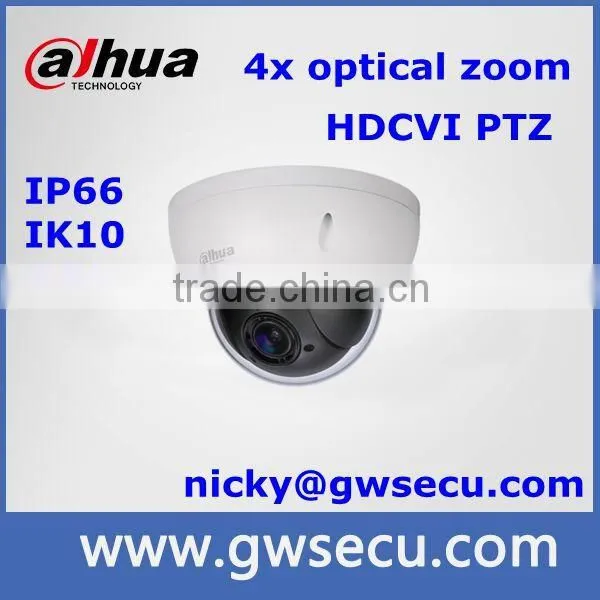

2 Megapixel 1080P Mini HDCVI PTZ Dome Camera
SD22204I-GC
Features:
> Powerful 4x optical zoom
>Max. 25/30fps@1080P, 50/60fps@720P resolution
>WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
>Max 100°/s pan speed
>Control over coaxial cable, long distance real-time transmission
>HD and SD switchable
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Support intelligent 3D positioning with DH-SD protocol
>IP66, IK10, OSD
Specifications:
| Model | DH-SD22204I-GC |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels |
| Horizontal Resolution | ≥1000TVL |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1s ~1/30,000s |
| Min. Illumination | Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6 |
| S/N Ratio | More than 55dB |
| Resolution | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
| Camera Features | |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D / 3D |
| Privacy Masking | Up to 24 areas |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 2.7mm~11mm(4x Optical zoom) |
| Max Aperture | N/A |
| Focus Control | Auto / Manual |
| FOV-H | H: 112.5°~30° |
| Close Focus Distance | 100mm~1000mm |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 355° ; Tilt: 0° ~ 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~ 100°/s; Tilt: 0.1° ~60°/s |
| Preset Speed | Pan: 100°/s; Tilt:60°/s |
| Preset | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan |
| Speed Setup | Human-oriented focal length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Auxiliary Interface | |
| RS485 | 1 |
| General | |
| Power Supply | DC12V |
| Power Consumption | 10W |
| Working Environment | -30ºC ~ 60ºC / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Dimensions | Φ122mm×89mm |
| Weight | 0.52Kg |
Software:
Showroom:
Welcome to visit our company
1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
