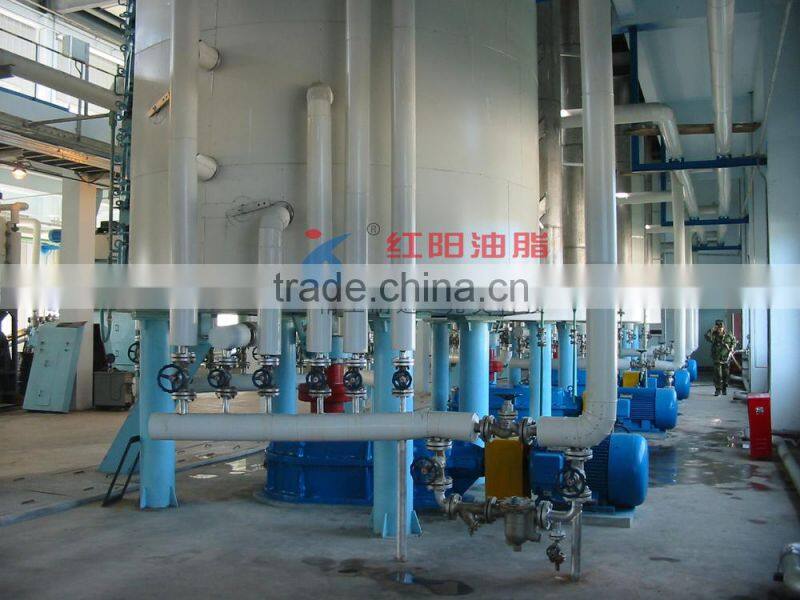

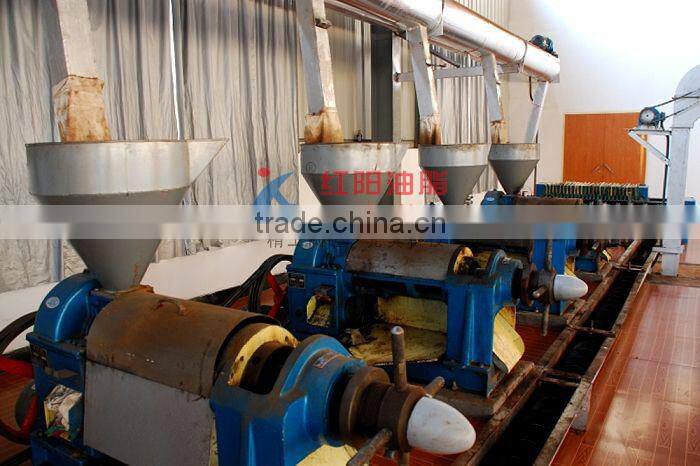

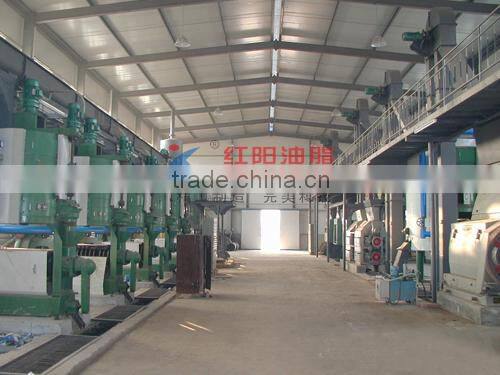

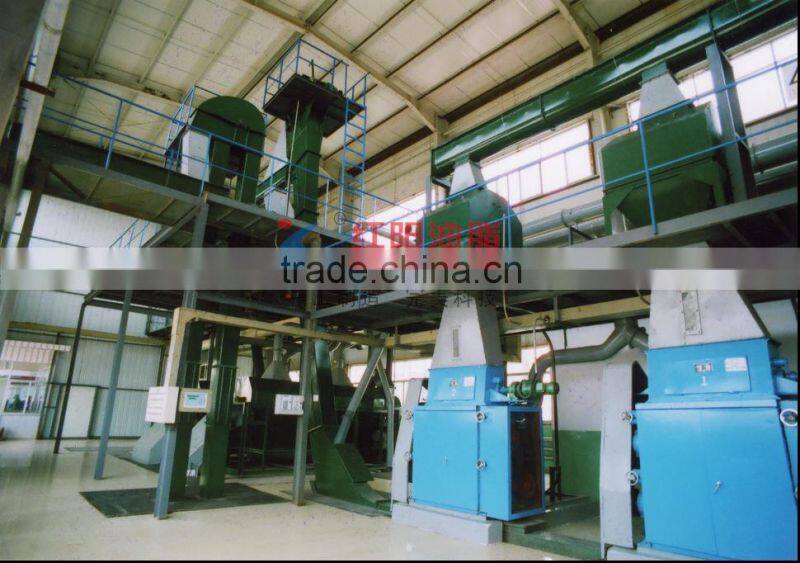

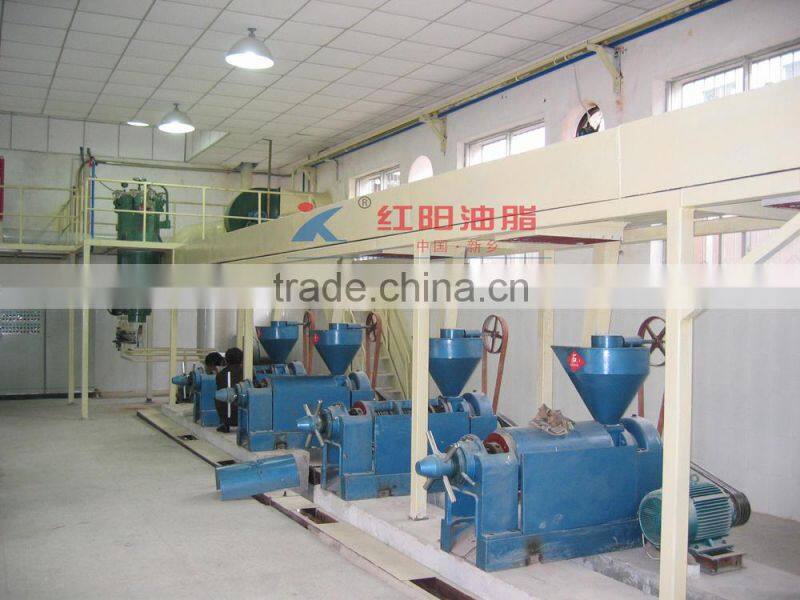

Stainless Steel Sunflower Seed oil refined machine factory With CE and ISO
The Description of 1-500T/D Cooking Oil Production Machine
Sunflower seed→metering→magnetic separation→deironing→cleaning→stone removing →
gear roller crushing→softening→flaking→extrusion→cooling&drying→extraction
1-500T/D seeds prepress equipment plant Working process:
1) Metering process: with special equipment, the stable measuring scale is used to regulate the flow
and measure total production. Moreover, it can achieve accumulated measurement,
transient measurement and cost accounting, with accurate measurement and high
precision.
2) Cleaning process: use magnetic selector to remove iron impurity, vibration cleaning sieve to
remove straw, and gravity stoner to remove stones, bricks and other impurities. The dedusting
system uses single union cyclone and centrifugal fan to remove dust effectively, so as to to
ensure workshop hygiene and clear light impurities.
3) Crushing Process: mainly used to crush many kinds of large oilseed
4)Softening process: with YPHW series horizontal softening pot, material enters softening drum
through feeding auger, and turns over with the rotating drum. The rotating drum is equipped
with heating tube, and there is steam in the tube. When material turns over continuously with
the rotating drum, soy is heated to 50-70°C and is fully softened, which can improve soy plasticity, make germ flake thin and burly and
improve extraction effect. In addition, the rotating drum has the inclination of high feed end and
low discharge end. According to material softening conditions, regulate the rotating speed of
drum to control the softening time of material in the rotating drum, so as to achieve the best
softening effect.
5) Flaking process: our hydraulic compact roller flaker can better damage the oil material cell to
ensure thin and uniform flake, with high toughness and small powder
